DM604 S2

F l o o r- standing loudspeaker system

Product Summary

The DM604 S2 is an excellent choice for high performance hi-fi systems or as a front

channel speaker in a sophisticated Home Cinema system.

The DM604 S2 has a aluminium dome tweeter, one woven Kevlar® cone mid-range

driver and two paper/Kevlar® cone bass drivers. The second cone is specifically tailored

to extend low frequency response and increase power handling.

The two bass drivers incorporate our mushroom dustcap construction, where the whole

diaphragm structure is stiffened in girder fashion by using a larger diameter dustcap.

Technical highlights

Nautilus™ Tweeter: B&W's Nautilus Tweeter technology ensures that the sound

remains focused and time-sensitive and that the stereo-image is presented with

unparalleled three dimensional accuracy.

Kevlar®: B&W developed and patented the method of using Kevlar® for

loudspeaker cones to reduce unwanted standing waves. DuPont originally

created Kevlar® for use in bulletproof vests.

Description

3-way vented-box system

Nominal impedance 8Ω (min 3Ω)

Drive units

1 x 25mm metal dome high-frequency

Power handling

25W - 200W into 8 ohm on unclipped



1 x 180mm woven Kevlar® cone



programme



bass/midrange

Dimensions

Height: 996mm Width: 236mm



2 x 180mm paper/Kevlar® cone bass



Depth: 411mm

Frequency response

44Hz – 20kHz ± 3dB on reference

Finishes

Cabinet: Cherry or Black Ash Vinyl,



axis



Grilles: Black cloth

Sensitivity

90dB spl (2.83V, 1m)













B&W Loudspeakers Ltd reserves the right to amend details of the specifications without notice in line with technical developments. E & OE. All trademarks acknowledged.

www.bwspeakers.com

Page 1

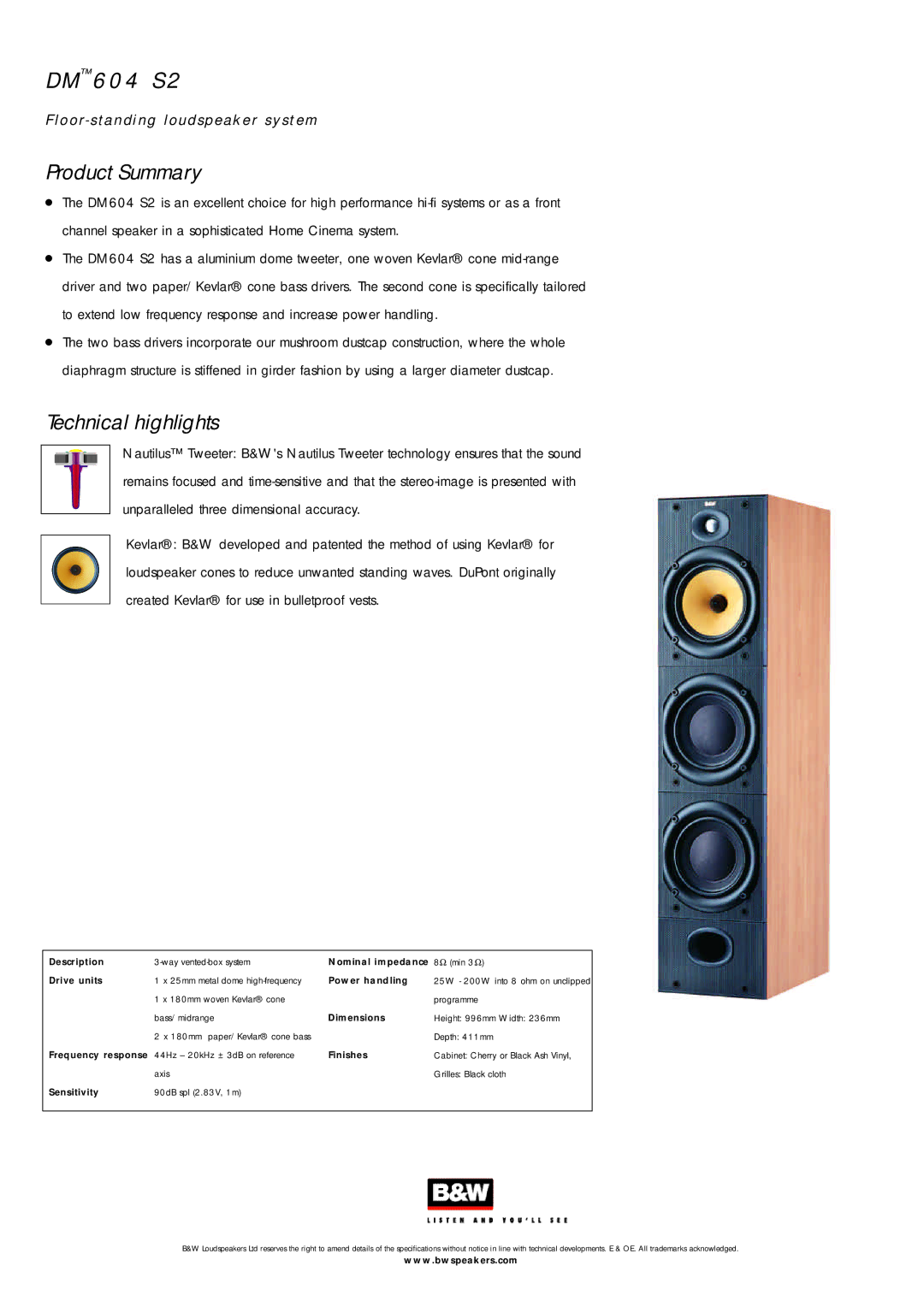

Image 1
Bowers & Wilkins DM604 S2 specifications O o r- standing loudspeaker system Product Summary, Technical highlights

DM604 S2 specifications

The Bowers & Wilkins DM604 S2 is a remarkable floor-standing loudspeaker that embodies the brand's commitment to delivering exceptional audio performance and elegant design. Launched as part of the acclaimed DM series, this model has garnered a reputation among audiophiles and casual listeners alike for its impressive sound quality and versatility.

One of the standout features of the DM604 S2 is its three-way speaker design, which includes a 6.5-inch bass driver, a 5-inch midrange driver, and a 1-inch tweeter. This configuration enables the speaker to cover a wide frequency range, ensuring crisp highs, detailed mids, and deep, powerful bass. The proprietary drivers use advanced materials and construction techniques to enhance sonic fidelity, contributing to a more immersive listening experience.

The tweeter incorporates Bowers & Wilkins' signature Nautilus technology, which utilizes a unique tube loading system. This design minimizes distortion and allows for cleaner high-frequency reproduction. The midrange driver, crafted from woven Kevlar, not only aids in producing a natural sound but also contributes to the overall aesthetic appeal of the speaker. Kevlar's lightweight and stiff properties ensure that the DM604 S2 can deliver accurate audio across various listening levels.

Another significant aspect of the DM604 S2 is its cabinet construction. The speaker is housed in a well-braced enclosure designed to reduce resonances and unwanted vibrations. The curved cabinet profile not only enhances the visual appeal of the speaker but also contributes to its acoustic performance. Available in a variety of finishes, including classic black and elegant oak, the DM604 S2 can seamlessly integrate into any home decor.

For optimal positioning and soundstage performance, the DM604 S2 features adjustable spike feet, allowing users to fine-tune the speaker's placement. This ensures a more stable base and better coupling with the floor for enhanced bass response.

Overall, the Bowers & Wilkins DM604 S2 stands out as an exceptional choice for anyone seeking high-fidelity sound in a stylish package. Its blend of innovative technology, meticulous engineering, and aesthetic sophistication make it a worthy consideration for music lovers and home theater enthusiasts. Whether used in a dedicated listening room or as part of a comprehensive audio system, the DM604 S2 delivers an outstanding auditory experience that truly embodies Bowers & Wilkins' legacy of excellence.
