"Highest in Subcontractor Satisfaction among Water Heater/Boiler Manufacturers"

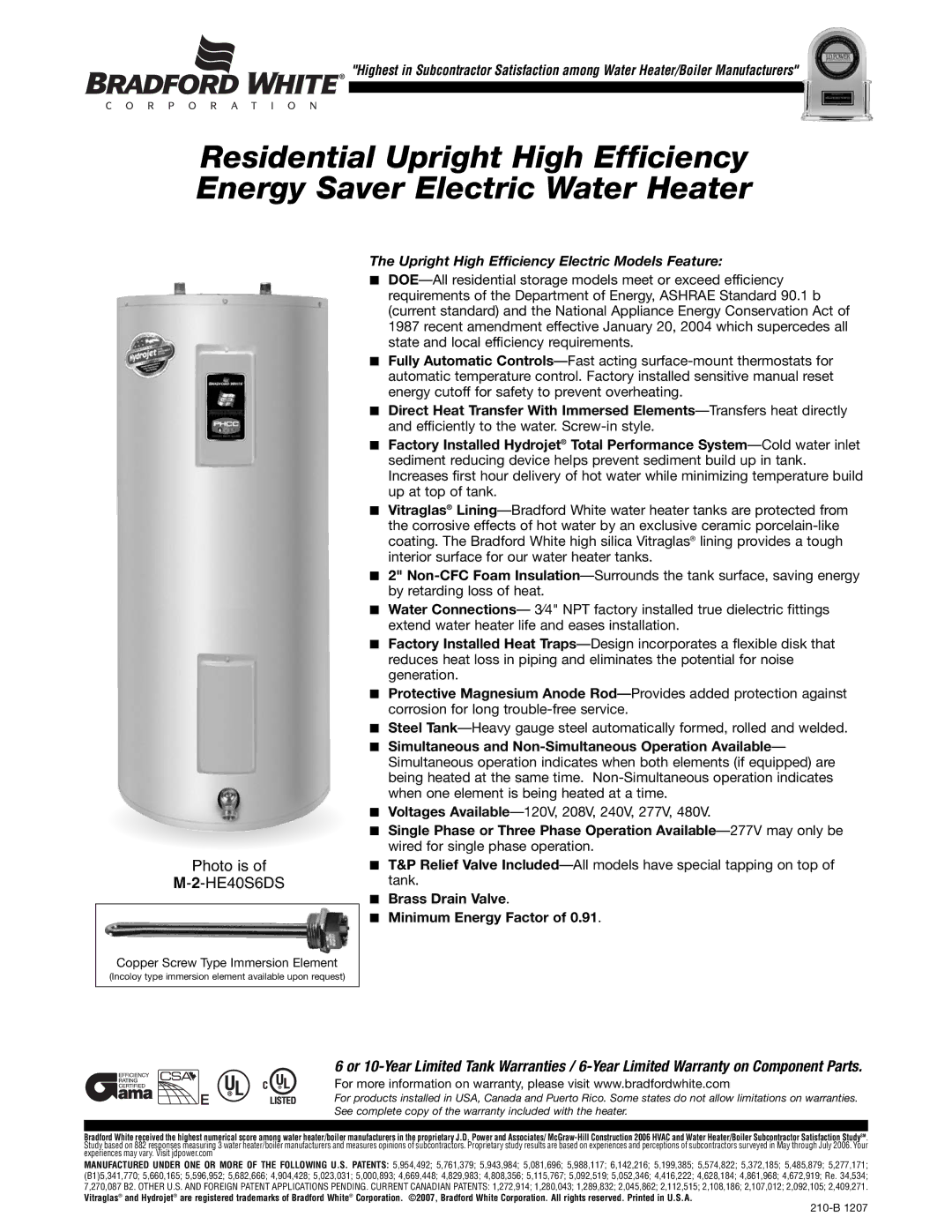

Residential Upright High Efficiency Energy Saver Electric Water Heater

Photo is of

M-2-HE40S6DS

Copper Screw Type Immersion Element

(Incoloy type immersion element available upon request)

The Upright High Efficiency Electric Models Feature:

■DOE—All residential storage models meet or exceed efficiency requirements of the Department of Energy, ASHRAE Standard 90.1 b (current standard) and the National Appliance Energy Conservation Act of 1987 recent amendment effective January 20, 2004 which supercedes all state and local efficiency requirements.

■Fully Automatic Controls—Fast acting surface-mount thermostats for automatic temperature control. Factory installed sensitive manual reset energy cutoff for safety to prevent overheating.

■Direct Heat Transfer With Immersed Elements—Transfers heat directly and efficiently to the water. Screw-in style.

■Factory Installed Hydrojet® Total Performance System—Cold water inlet sediment reducing device helps prevent sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up at top of tank.

■Vitraglas® Lining—Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Bradford White high silica Vitraglas® lining provides a tough interior surface for our water heater tanks.

■2" Non-CFC Foam Insulation—Surrounds the tank surface, saving energy by retarding loss of heat.

■Water Connections— 3⁄4" NPT factory installed true dielectric fittings extend water heater life and eases installation.

■Factory Installed Heat Traps—Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.

■Protective Magnesium Anode Rod—Provides added protection against corrosion for long trouble-free service.

■Steel Tank—Heavy gauge steel automatically formed, rolled and welded.

■Simultaneous and Non-Simultaneous Operation Available— Simultaneous operation indicates when both elements (if equipped) are being heated at the same time. Non-Simultaneous operation indicates when one element is being heated at a time.

■Voltages Available—120V, 208V, 240V, 277V, 480V.

■Single Phase or Three Phase Operation Available—277V may only be wired for single phase operation.

■T&P Relief Valve Included—All models have special tapping on top of tank.

■Brass Drain Valve.

■Minimum Energy Factor of 0.91.

6 or 10-Year Limited Tank Warranties / 6-Year Limited Warranty on Component Parts.

For more information on warranty, please visit www.bradfordwhite.com

For products installed in USA, Canada and Puerto Rico. Some states do not allow limitations on warranties.

See complete copy of the warranty included with the heater.

Bradford White received the highest numerical score among water heater/boiler manufacturers in the proprietary J.D. Power and Associates/ McGraw-Hill Construction 2006 HVAC and Water Heater/Boiler Subcontractor Satisfaction StudySM. Study based on 882 responses measuring 3 water heater/boiler manufacturers and measures opinions of subcontractors. Proprietary study results are based on experiences and perceptions of subcontractors surveyed in May through July 2006. Your experiences may vary. Visit jdpower.com

MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 5,574,822; 5,372,185; 5,485,879; 5,277,171; (B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968; 4,672,919; Re. 34,534; 7,270,087 B2. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012; 2,092,105; 2,409,271.

Vitraglas® and Hydrojet® are registered trademarks of Bradford White® Corporation. ©2007, Bradford White Corporation. All rights reserved. Printed in U.S.A.

210-B 1207

Page 1 Page 2
Page 1
Image 1
Bradford-White Corp M-2HE40S6DS warranty Photo is HE40S6DS
Page 1 Page 2

M-2HE40S6DS specifications

The Bradford-White Corp M-2HE40S6DS is a high-efficiency gas water heater designed to meet residential hot water needs with advanced technologies. Renowned for its exceptional reliability and performance, this water heater showcases several key features that make it a popular choice among homeowners.

One of the standout characteristics of the M-2HE40S6DS is its energy efficiency. Designed with a 40-gallon capacity, it uses a direct vent system that allows for optimal combustion and heat exchange, reducing energy loss. With an Energy Factor (EF) rating that exceeds industry standards, this unit helps homeowners save on energy costs while ensuring a steady supply of hot water.

This model incorporates the innovative Hydrojet® Internal Tank Cleaner, a unique feature that minimizes sediment build-up within the tank. By enhancing cold water circulation, the Hydrojet system maximizes efficiency and extends the lifespan of the water heater. Additionally, the water heater is equipped with Bradford White's patented Vitraglas® tank lining, providing superior protection against corrosion and extending the life of the tank.

Another notable technology in the M-2HE40S6DS is its integrated electronic ignition system, which ensures reliable start-up and operation. Unlike traditional pilot lights, this system ignites the burner only when hot water is needed, enhancing energy savings. Furthermore, the unit features a combination of safety and comfort controls, including a temperature and pressure relief valve designed to prevent overheating and ensure safe operation.

The structural design of the M-2HE40S6DS also contributes to its performance. The unit has a durable outer jacket that provides insulation and protects against external damage, while the tank itself is designed for optimal heat retention. Moreover, the compact design allows for easy installation in various locations within the home.

Homeowners can also appreciate the warranty offered with this water heater. Bradford White stands behind its products, providing a limited warranty that covers both the tank and parts, ensuring peace of mind for customers.

In summary, the Bradford-White Corp M-2HE40S6DS water heater combines advanced technologies, energy efficiency, and reliable performance to meet the demands of modern households. Its innovative features, durable construction, and robust warranty make it a top choice for those seeking a dependable solution for their hot water needs.
