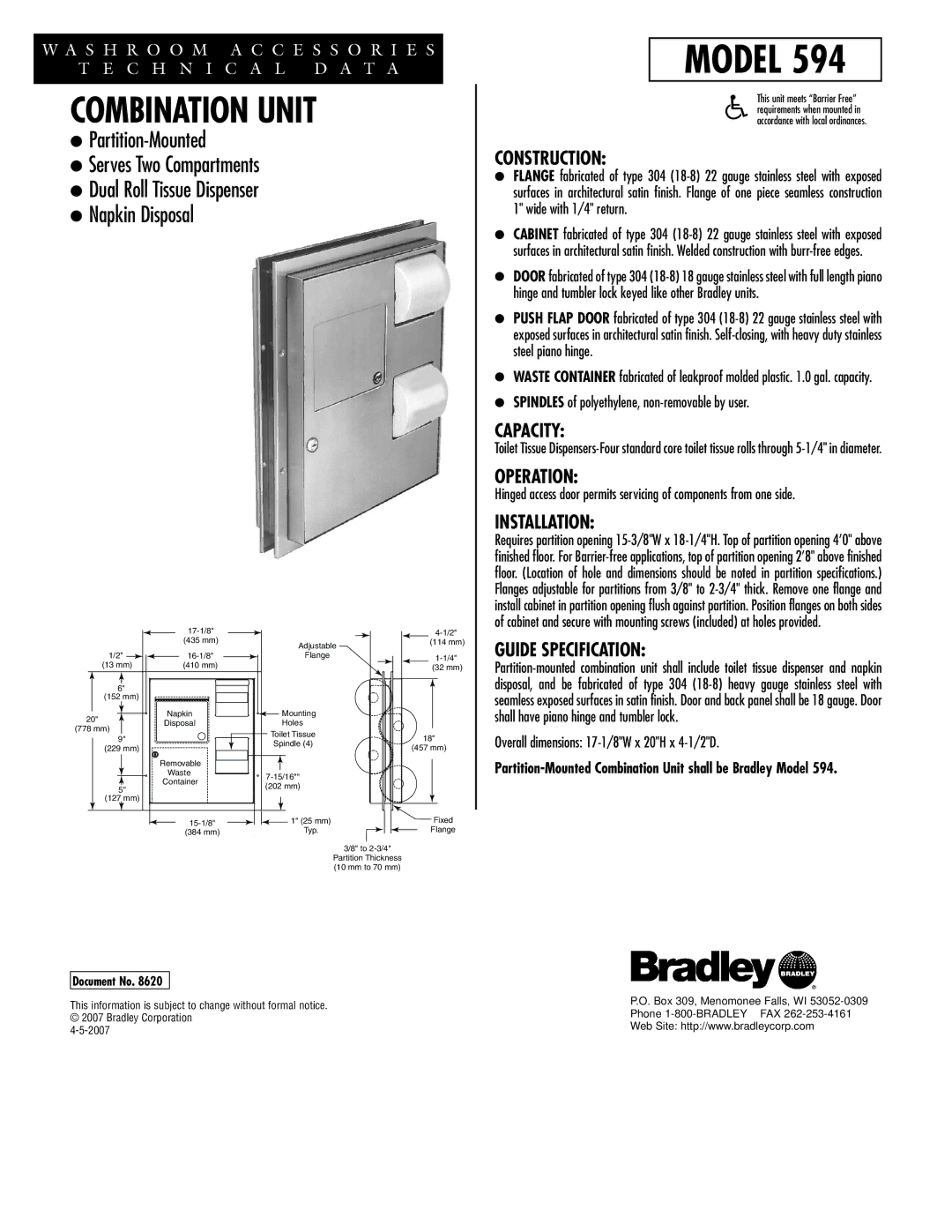

W A S H R O O M A C C E S S O R I E S

T E C H N I C A L D A T A

COMBINATION UNIT

●Partition-Mounted

●Serves Two Compartments

●Dual Roll Tissue Dispenser

●Napkin Disposal

MODEL 594

This unit meets “Barrier Free” requirements when mounted in accordance with local ordinances.

CONSTRUCTION:

●FLANGE fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one piece seamless construction 1" wide with 1/4" return.

●CABINET fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges.

●DOOR fabricated of type 304 (18-8) 18 gauge stainless steel with full length piano hinge and tumbler lock keyed like other Bradley units.

●PUSH FLAP DOOR fabricated of type 304 (18-8) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Self-closing, with heavy duty stainless steel piano hinge.

●WASTE CONTAINER fabricated of leakproof molded plastic. 1.0 gal. capacity.

●SPINDLES of polyethylene, non-removable by user.

CAPACITY:

Toilet Tissue Dispensers-Four standard core toilet tissue rolls through 5-1/4" in diameter.

OPERATION:

Hinged access door permits servicing of components from one side.

INSTALLATION:

Requires partition opening 15-3/8"W x 18-1/4"H. Top of partition opening 4’0" above finished floor. For Barrier-free applications, top of partition opening 2’8" above finished floor. (Location of hole and dimensions should be noted in partition specifications.) Flanges adjustable for partitions from 3/8" to 2-3/4" thick. Remove one flange and install cabinet in partition opening flush against partition. Position flanges on both sides of cabinet and secure with mounting screws (included) at holes provided.

17-1/8"

(435 mm)

1/2"	16-1/8"
(13 mm)	(410 mm)

6"

(152 mm)

Napkin

20"Disposal (778 mm)

9"

(229 mm)

Removable

Waste

Container 5"

(127 mm)

15-1/8"

(384 mm)

4-1/2"

Adjustable	(114 mm)
Flange	1-1/4"
	(32 mm)
Mounting
Holes
Toilet Tissue	18"
Spindle (4)
	(457 mm)
7-15/16""
(202 mm)
1" (25 mm)	Fixed
Typ.	Flange

3/8" to 2-3/4"

Partition Thickness (10 mm to 70 mm)

GUIDE SPECIFICATION:

Partition-mounted combination unit shall include toilet tissue dispenser and napkin disposal, and be fabricated of type 304 (18-8) heavy gauge stainless steel with seamless exposed surfaces in satin finish. Door and back panel shall be 18 gauge. Door shall have piano hinge and tumbler lock.

Overall dimensions: 17-1/8"W x 20"H x 4-1/2"D.Partition-Mounted Combination Unit shall be Bradley Model 594.

Document No. 8620

This information is subject to change without formal notice. © 2007 Bradley Corporation

4-5-2007
