FORM MS−6385−05/28/2008

REPLACES FORM MS−6385−04/02/2008

FILE IN SECT. 2 OF SERVICE MANUAL

126600

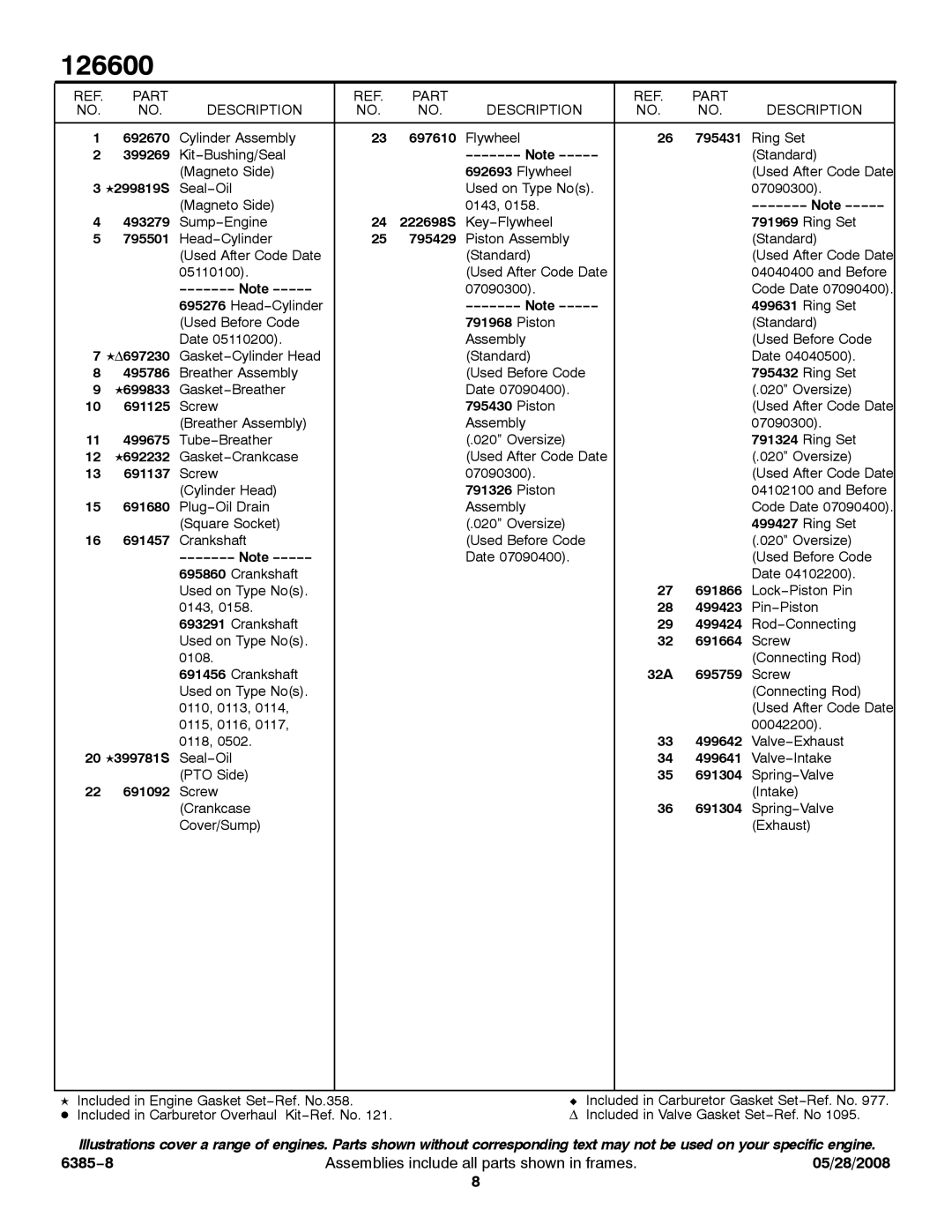

Illustrated Parts List

Model Series

126600

TYPE NUMBERS 0100 through 0502.

TABLE OF CONTENTS

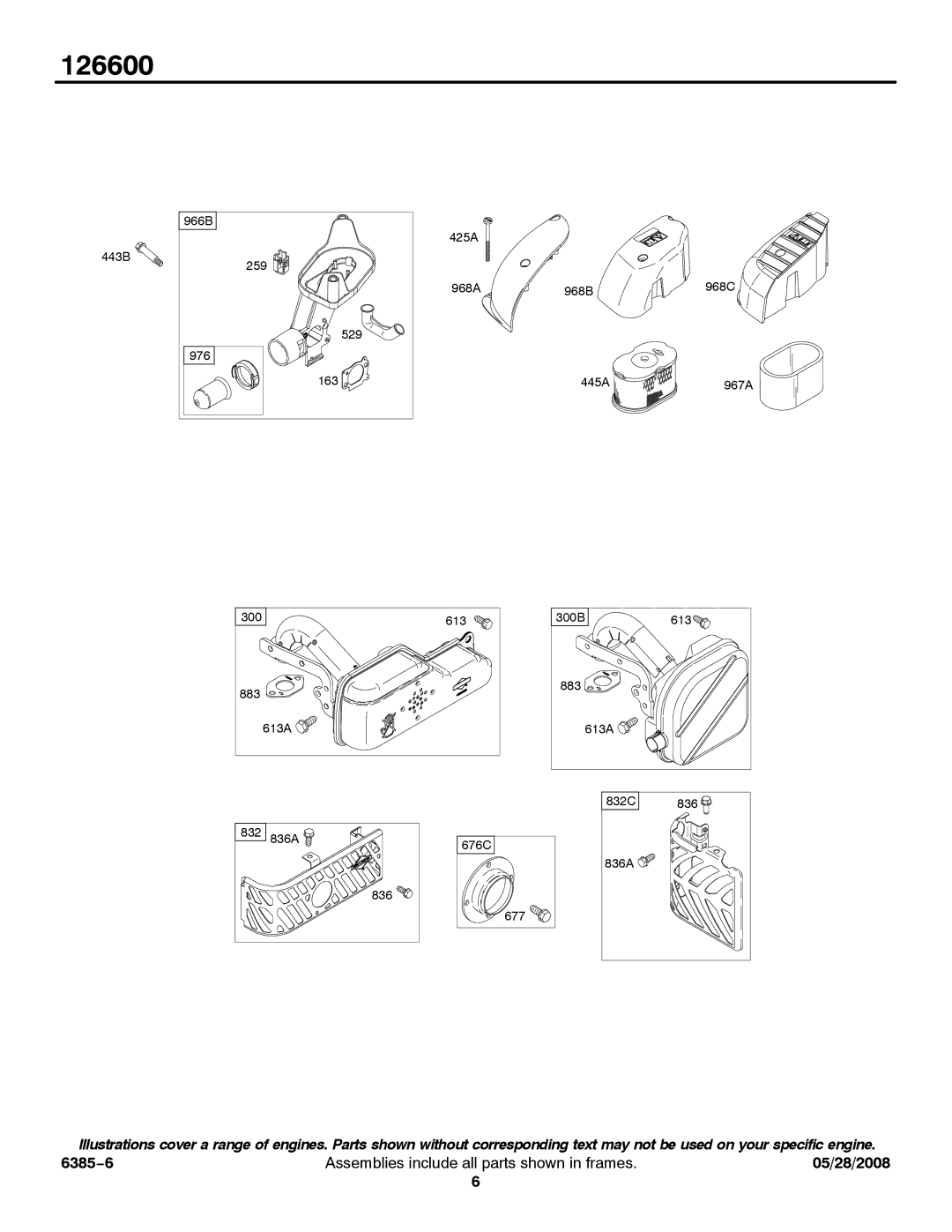

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 6

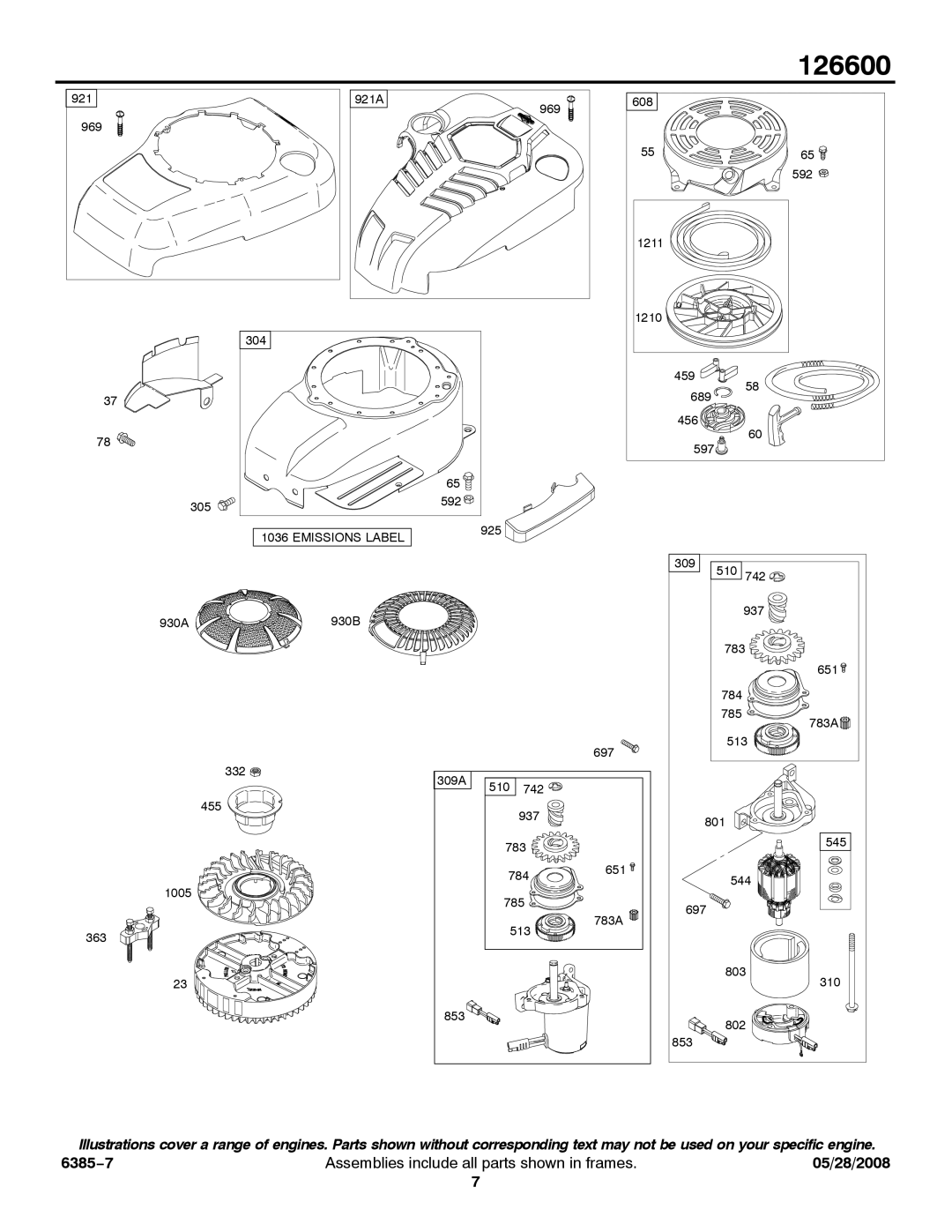

Blower Housing/Shrouds . . . . . . . . . . . . 7

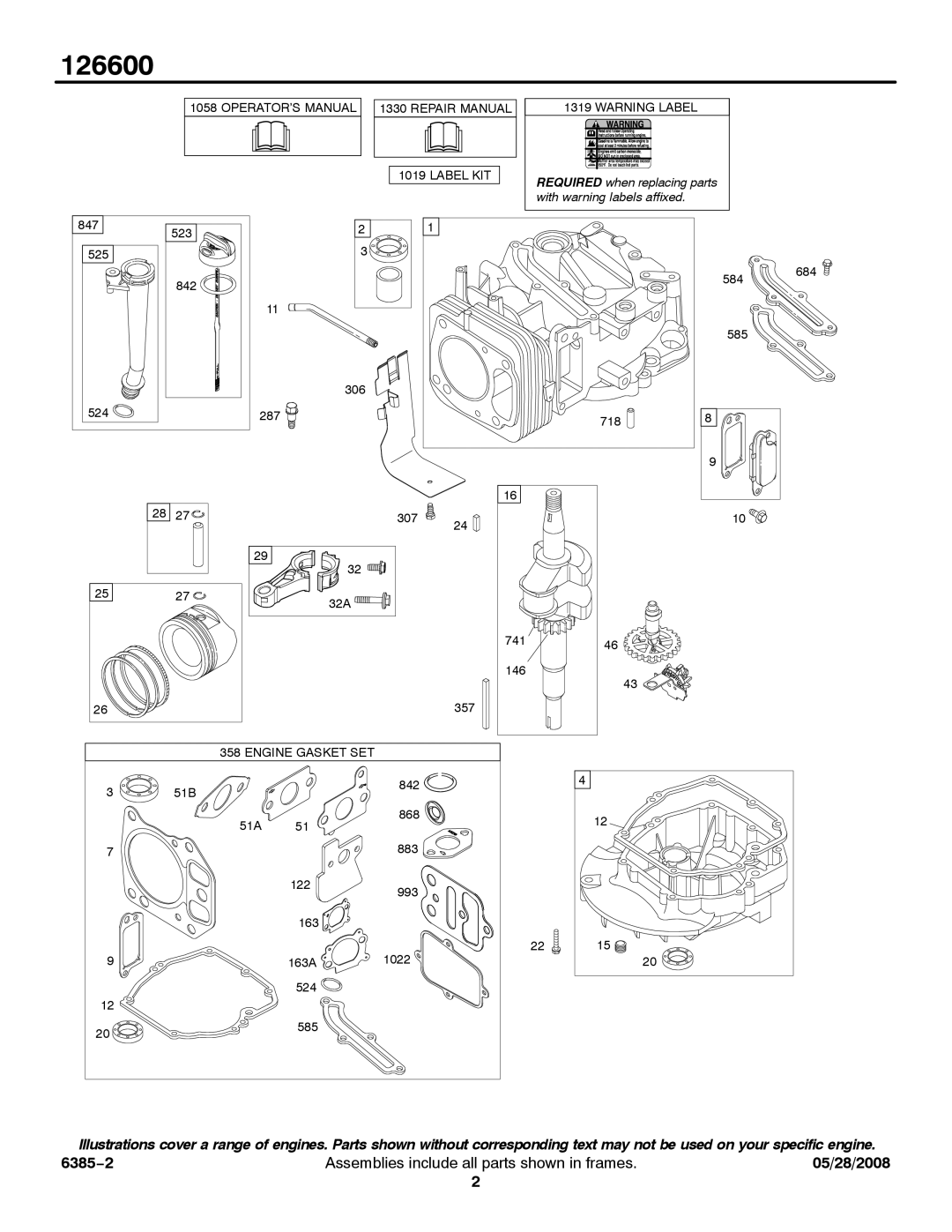

Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

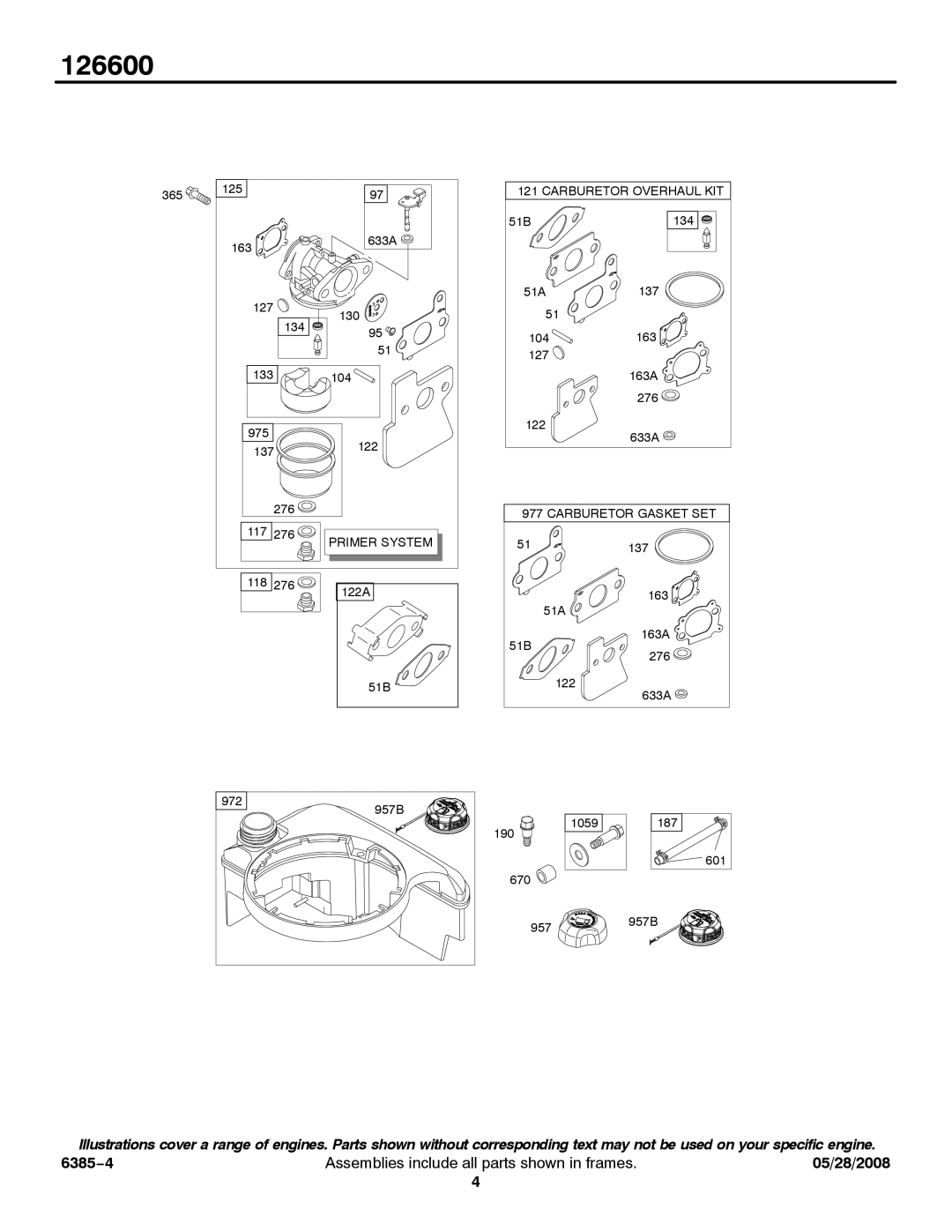

Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . 4

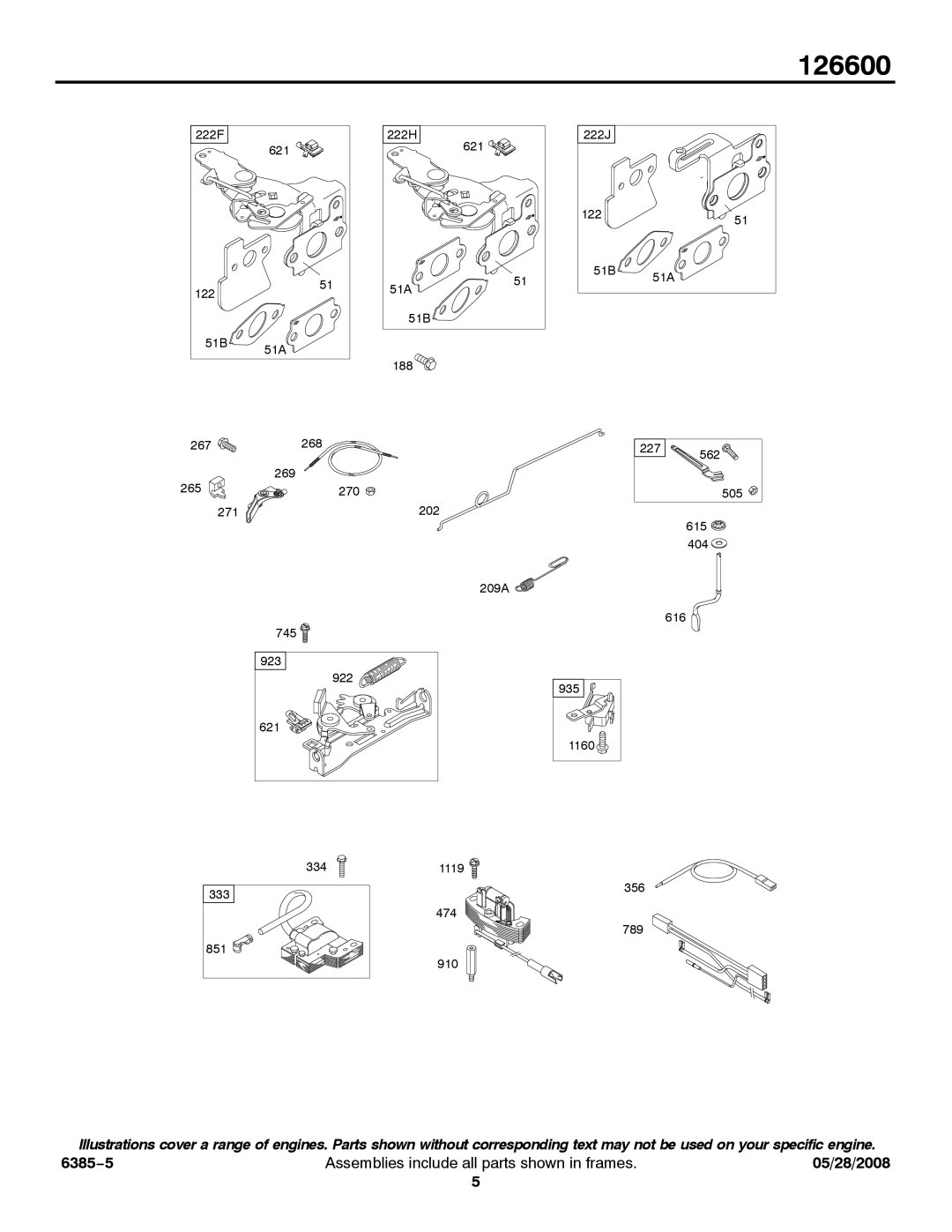

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 2

Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Cylinder Head . . . . . . . . . . . . . . . . . . . . . . 3

Electric Starter . . . . . . . . . . . . . . . . . . . . . . 7

Engine Sump . . . . . . . . . . . . . . . . . . . . . . . 2

Exhaust System . . . . . . . . . . . . . . . . . . . . 6

Flywheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Flywheel Brake . . . . . . . . . . . . . . . . . . . . . 5

Fuel Supply . . . . . . . . . . . . . . . . . . . . . . . . 4

Governor Spring . . . . . . . . . . . . . . . . . . . . 5

Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . 2

Piston Group . . . . . . . . . . . . . . . . . . . . . . . 2

Rewind Starter . . . . . . . . . . . . . . . . . . . . . . 7

PRINTED IN U.S.A.

COPYRIGHT by BRIGGS & STRATTON CORPORATION

All rights reserved. No part of this material may be reproduced or transmitted, in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage and retrieval system, without permission in writing from Briggs & Stratton Corporation.

Page 1
Image 1
Briggs & Stratton 126600 service manual Illustrated Parts List

126600 specifications

The Briggs & Stratton 126600 is a noteworthy power solution designed for those who require reliability and efficiency in their outdoor equipment. Known for its robust build quality and advanced features, this engine is primarily used in a variety of applications, including lawnmowers and other outdoor power equipment.

At the heart of the Briggs & Stratton 126600 lies a powerful 6.75 ft-lbs Gross Torque 190cc engine, which is engineered to handle the most demanding tasks. This four-stroke engine operates smoothly and efficiently, providing ample power for cutting grass and tackling various landscaping challenges. With its overhead valve (OHV) design, the engine offers improved fuel efficiency and lower emissions, making it an environmentally friendly choice for consumers.

One of the key features of the Briggs & Stratton 126600 is its ReadyStart technology, which eliminates the need for manual choke adjustment. This innovative feature ensures that the engine starts quickly and easily with just a pull of the starter cord, facilitating a hassle-free user experience. The engine is also equipped with a primer bulb for added convenience, allowing for quick fuel delivery during the starting process.

The engine's durable construction is enhanced by a cast-iron cylinder sleeve, which provides excellent longevity and resistance to wear and tear. This feature is particularly significant for users involved in frequent and intense mowing activities, as it contributes to the reliability and overall lifespan of the engine.

In terms of maintenance, the Briggs & Stratton 126600 is designed for user-friendliness, featuring an easily accessible oil fill and drain for quick servicing. The air filter is also readily accessible, ensuring that owners can perform routine maintenance tasks without difficulty.

Additionally, the engine includes an integrated fuel tank with a convenient capacity that allows for longer operation between refueling sessions. This is ideal for both professional landscapers and homeowners who want to minimize downtime while working on landscaping projects.

In conclusion, the Briggs & Stratton 126600 stands out as a powerful, efficient, and reliable engine option. Its innovative technologies, such as ReadyStart, combined with robust design features, make it an excellent choice for anyone in need of dependable outdoor power equipment. Whether tackling tough garden jobs or maintaining a pristine lawn, the 126600 engine delivers exceptional performance and durability.
