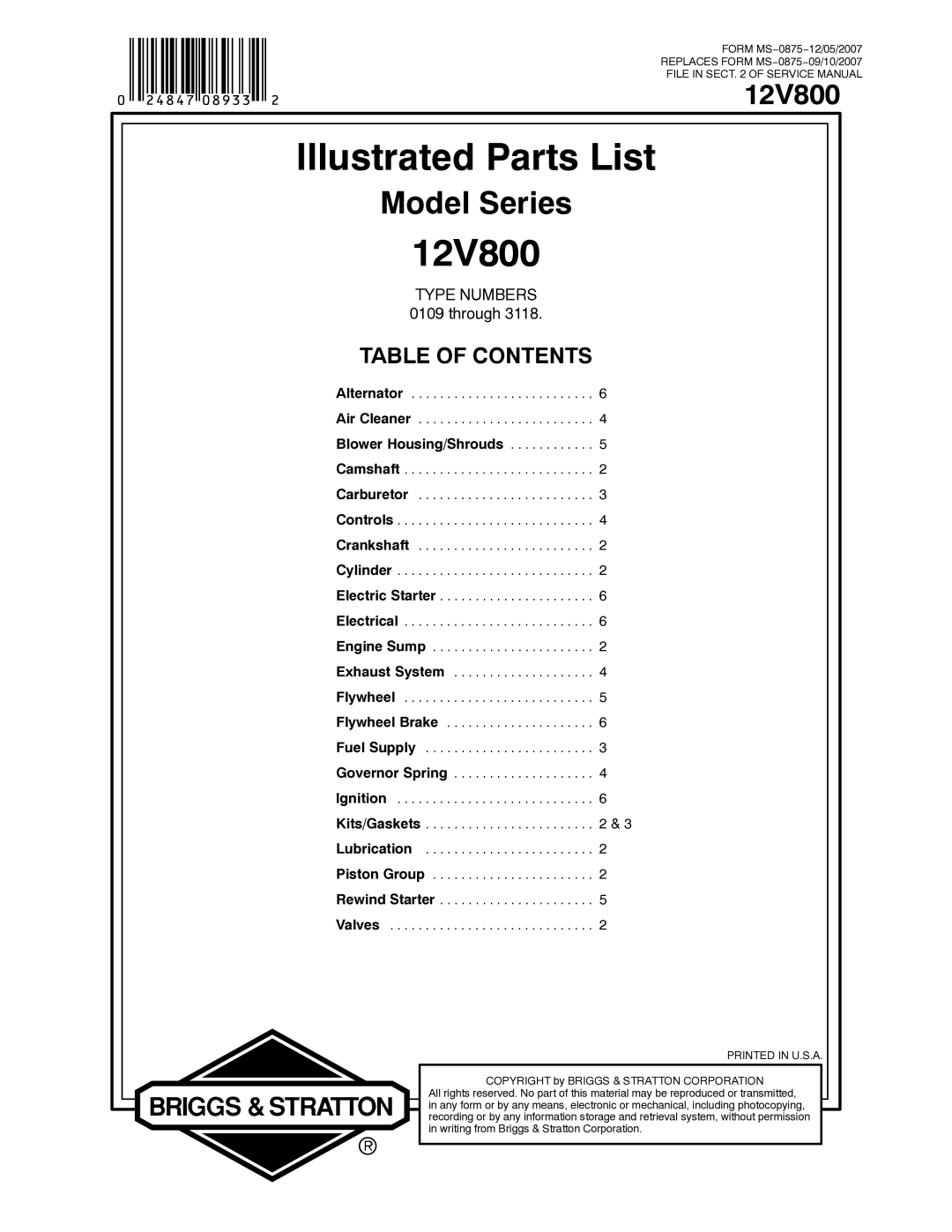

FORM MS−0875−12/05/2007

REPLACES FORM MS−0875−09/10/2007

FILE IN SECT. 2 OF SERVICE MANUAL

12V800

Illustrated Parts List

Model Series

12V800

TYPE NUMBERS 0109 through 3118.

TABLE OF CONTENTS

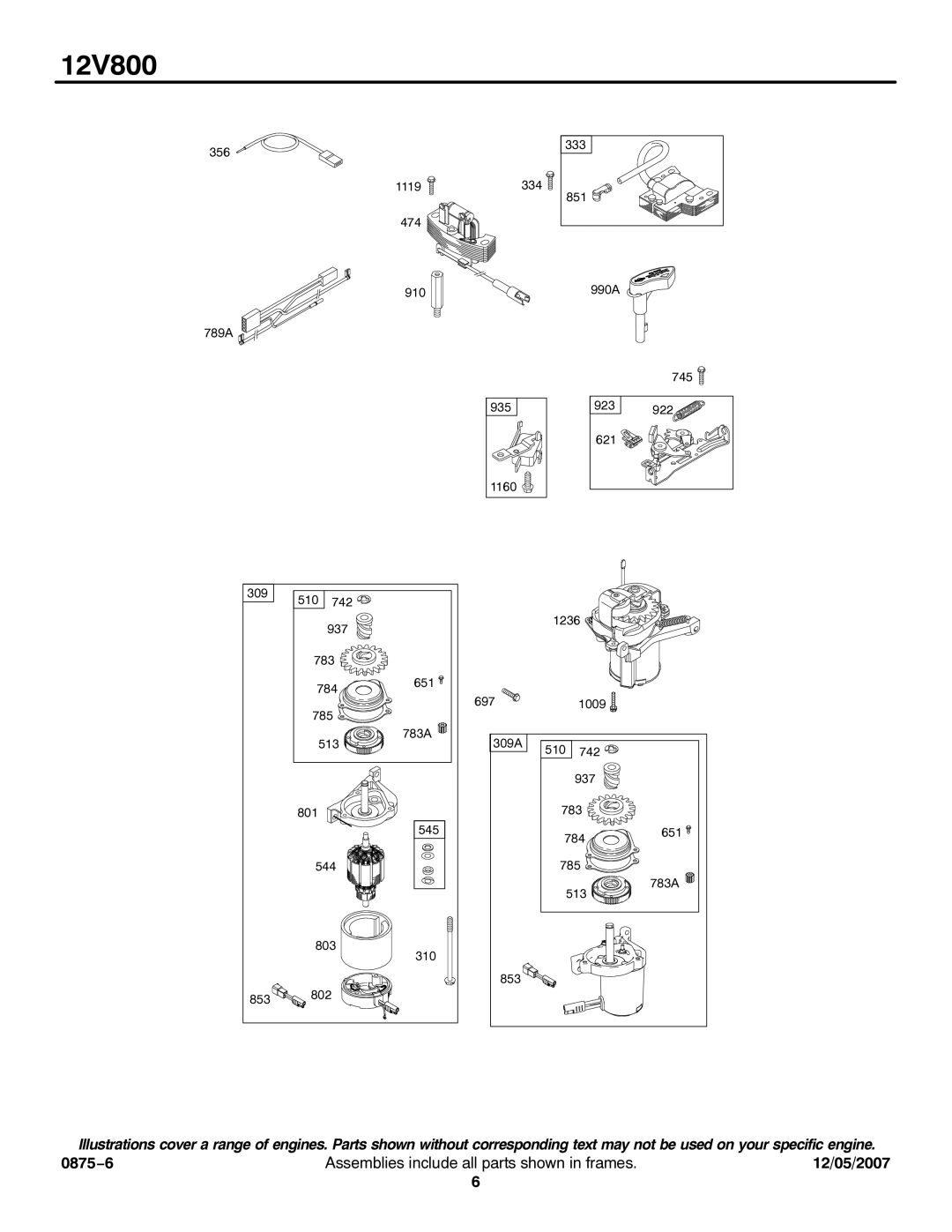

Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . 6

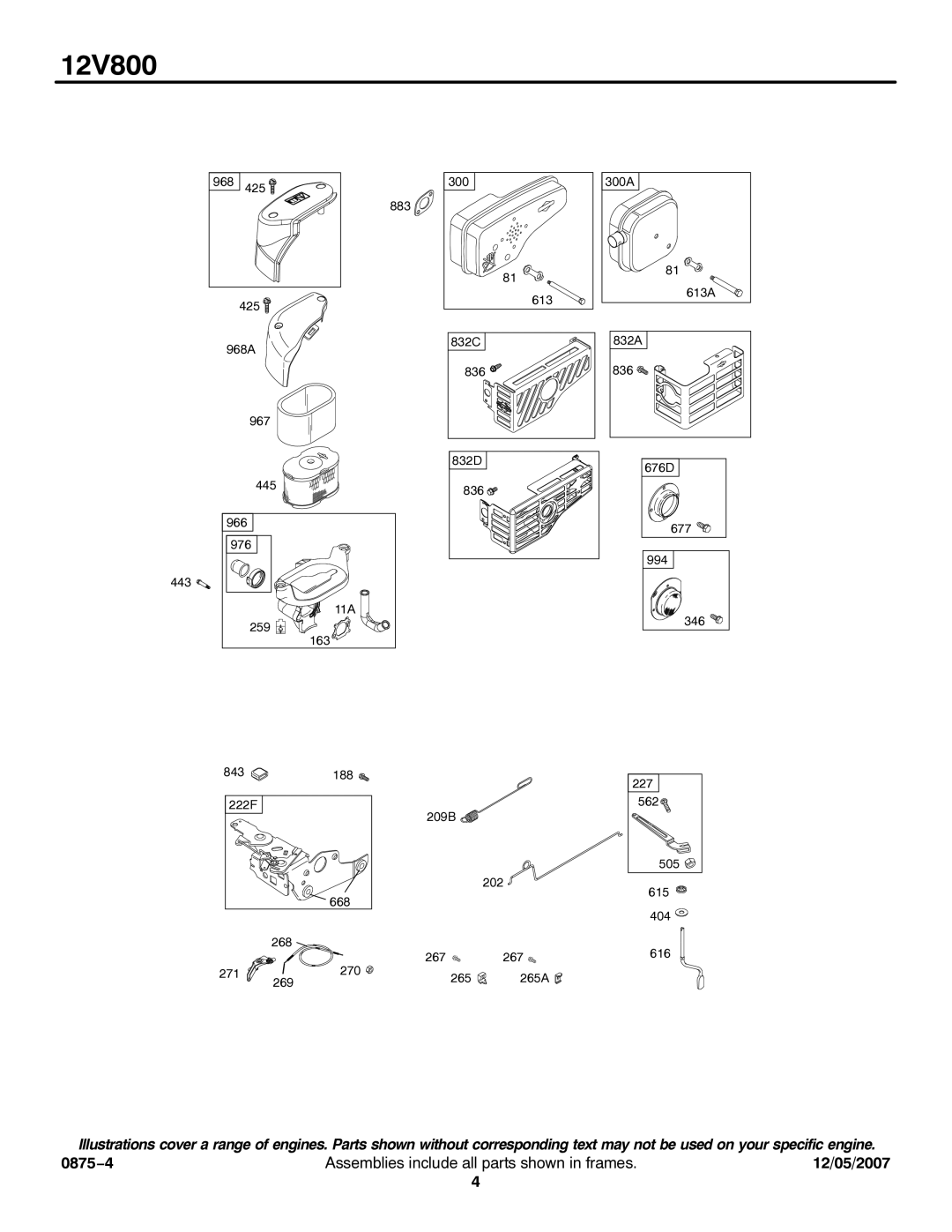

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 4

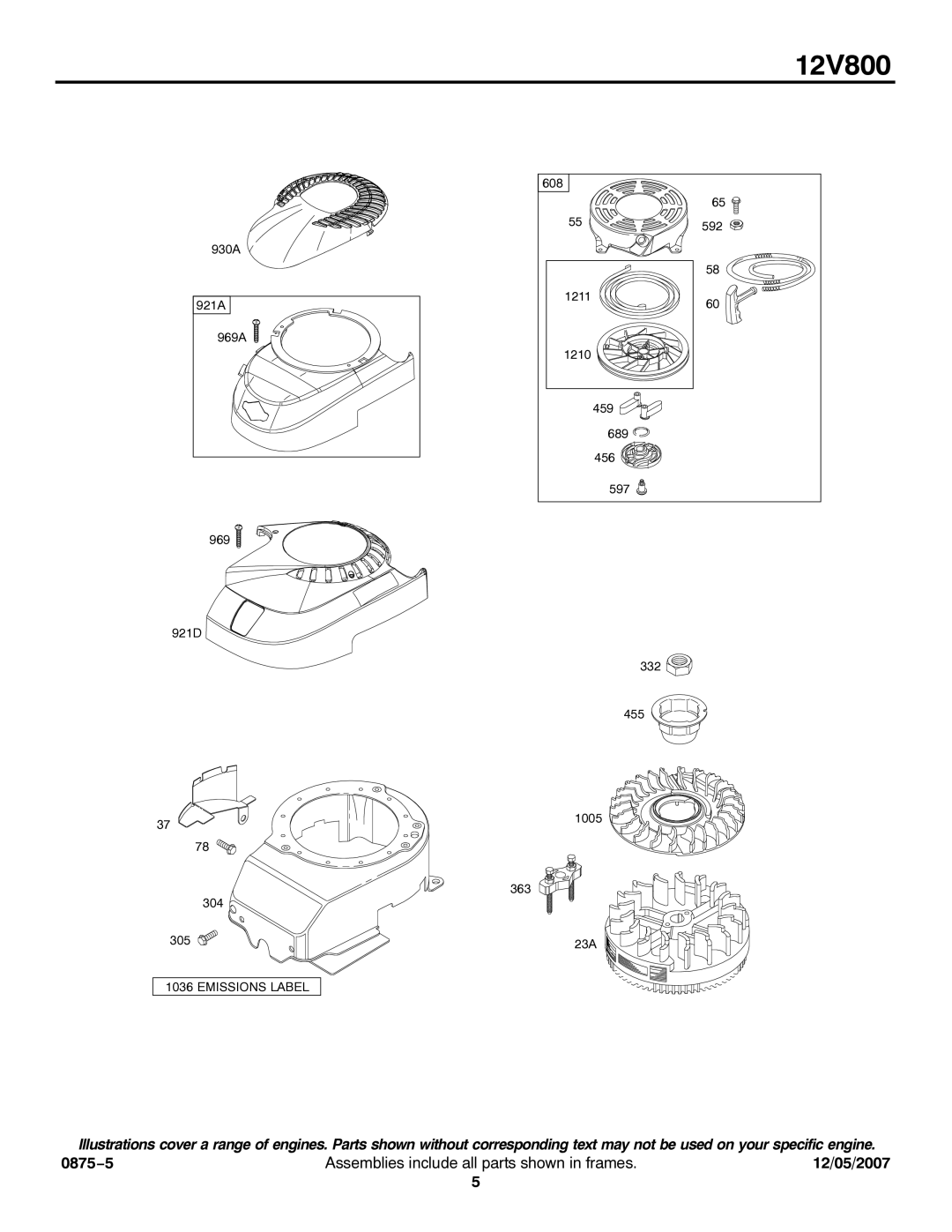

Blower Housing/Shrouds . . . . . . . . . . . . 5

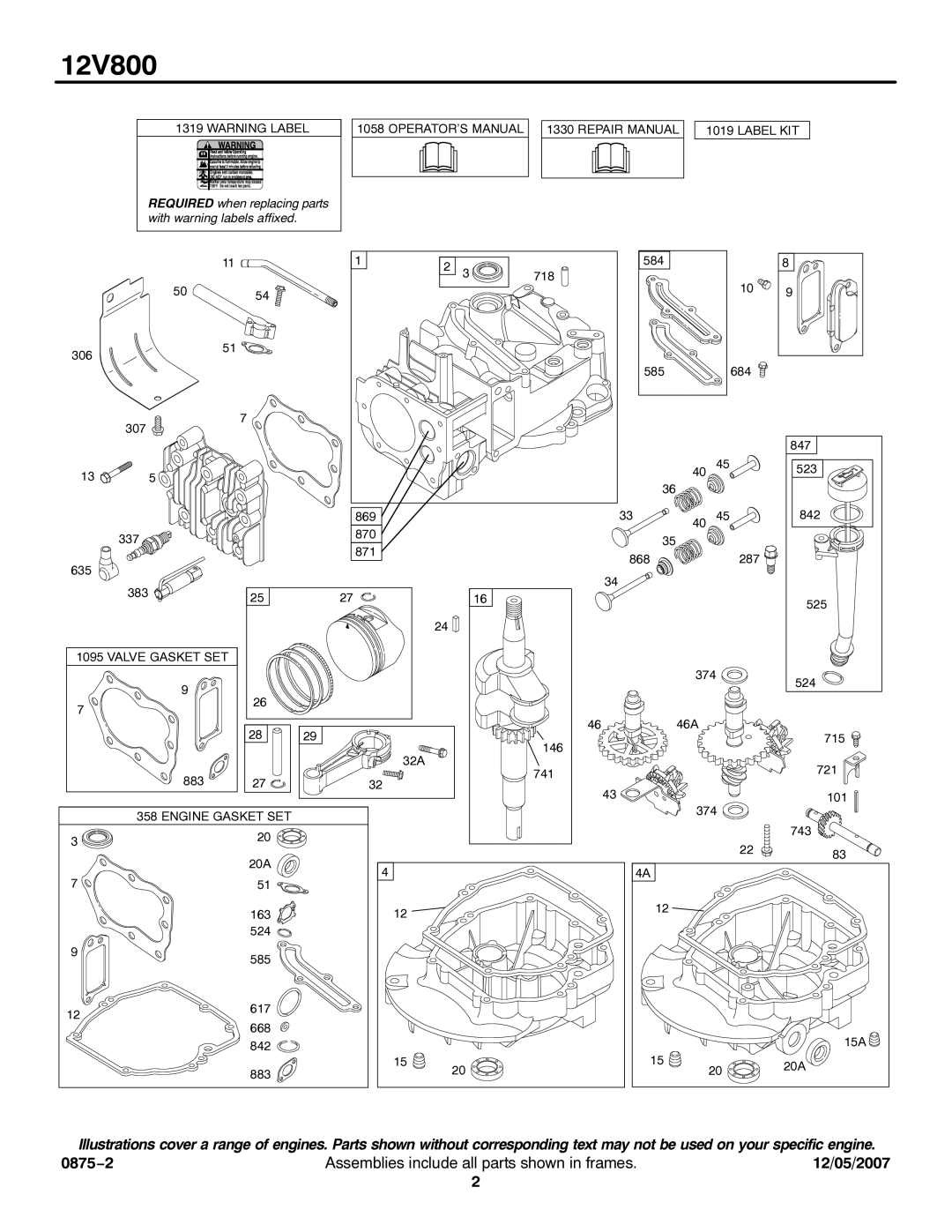

Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

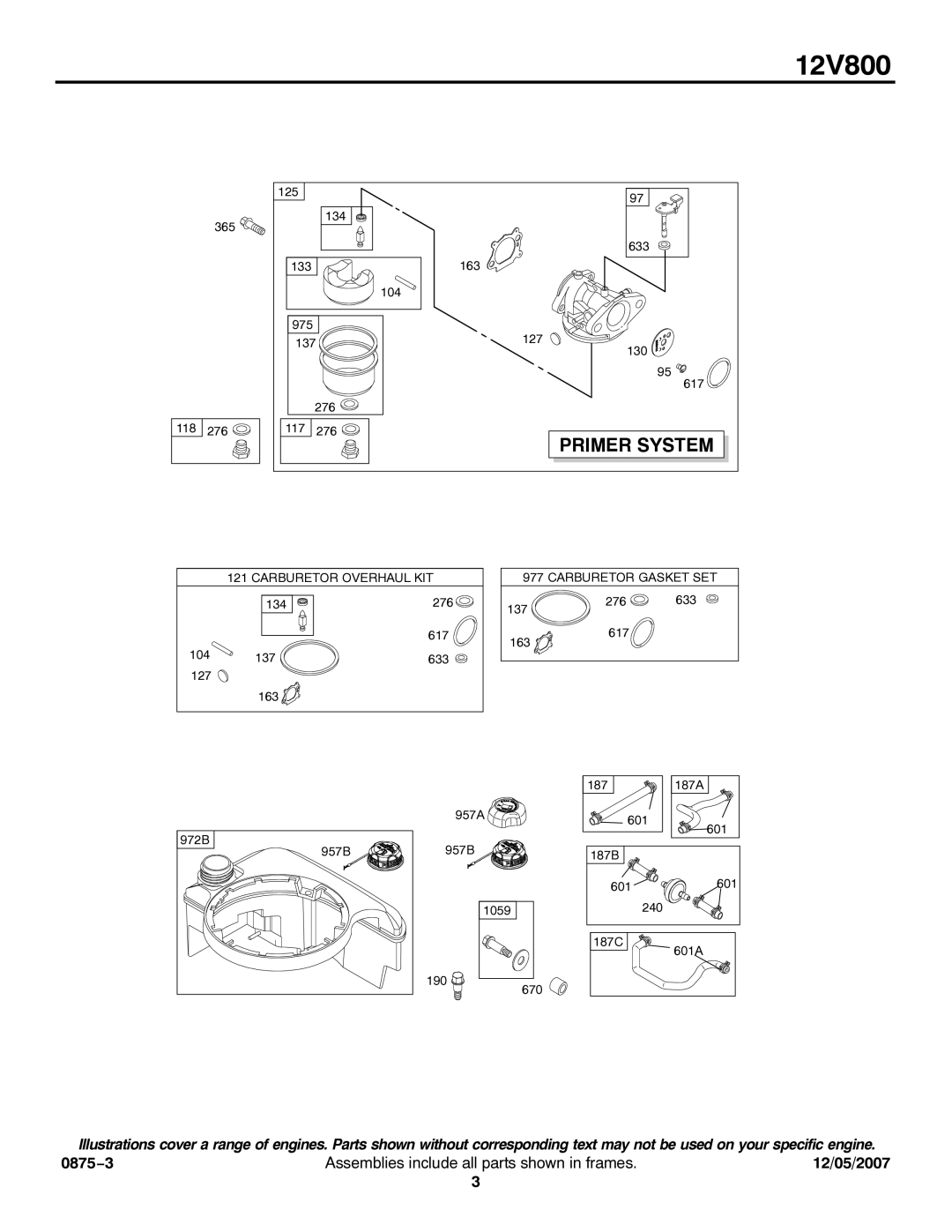

Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . 3

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 2

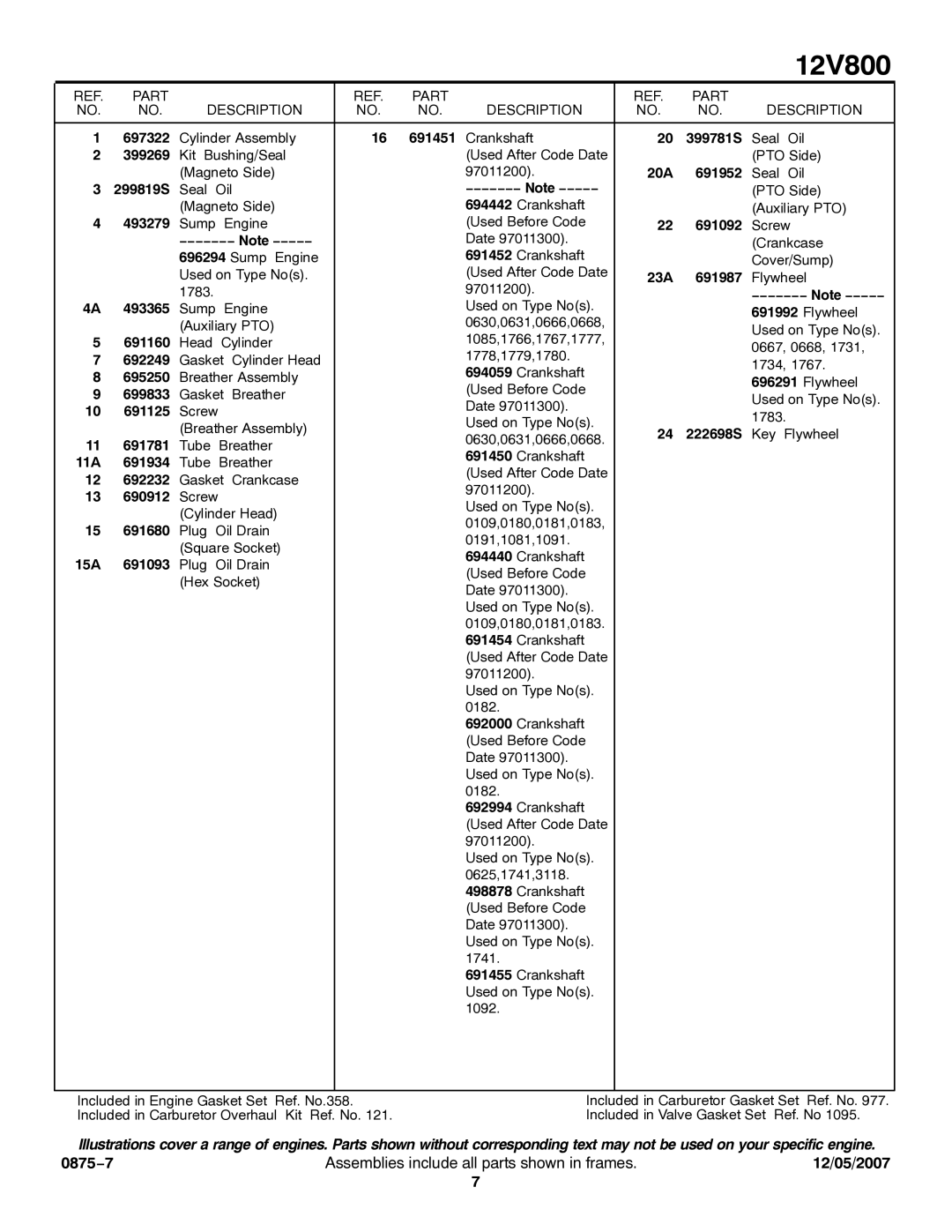

Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Electric Starter . . . . . . . . . . . . . . . . . . . . . . 6

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Engine Sump . . . . . . . . . . . . . . . . . . . . . . . 2

Exhaust System . . . . . . . . . . . . . . . . . . . . 4

Flywheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Flywheel Brake . . . . . . . . . . . . . . . . . . . . . 6

Fuel Supply . . . . . . . . . . . . . . . . . . . . . . . . 3

Governor Spring . . . . . . . . . . . . . . . . . . . . 4

Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Kits/Gaskets . . . . . . . . . . . . . . . . . . . . . . . . 2 & 3

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . 2

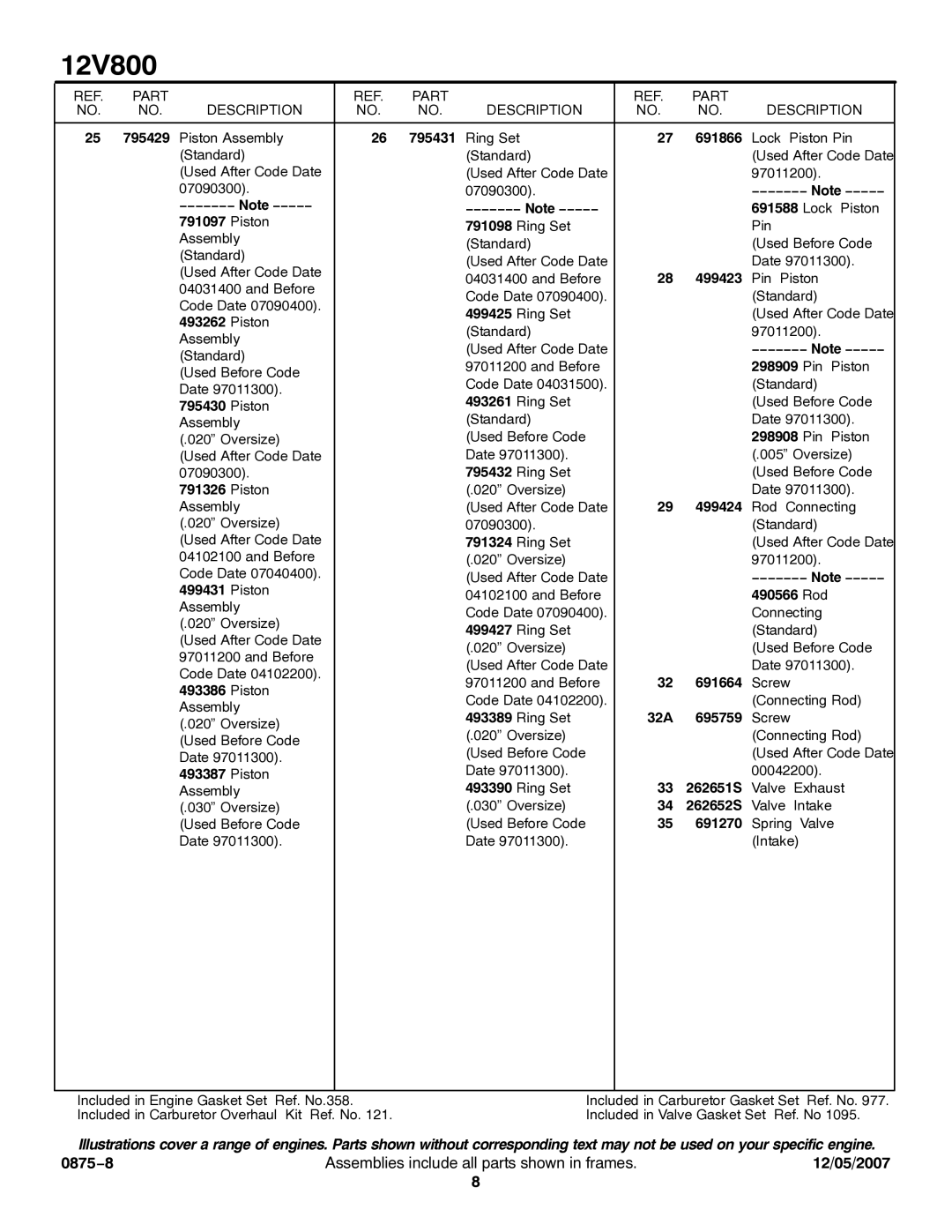

Piston Group . . . . . . . . . . . . . . . . . . . . . . . 2

Rewind Starter . . . . . . . . . . . . . . . . . . . . . . 5

Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
