FORM MS−5193−05/17/2007
REPLACES FORM MS−5193−02/28/2007
FILE IN SECT. 2 OF SERVICE MANUAL
40G700

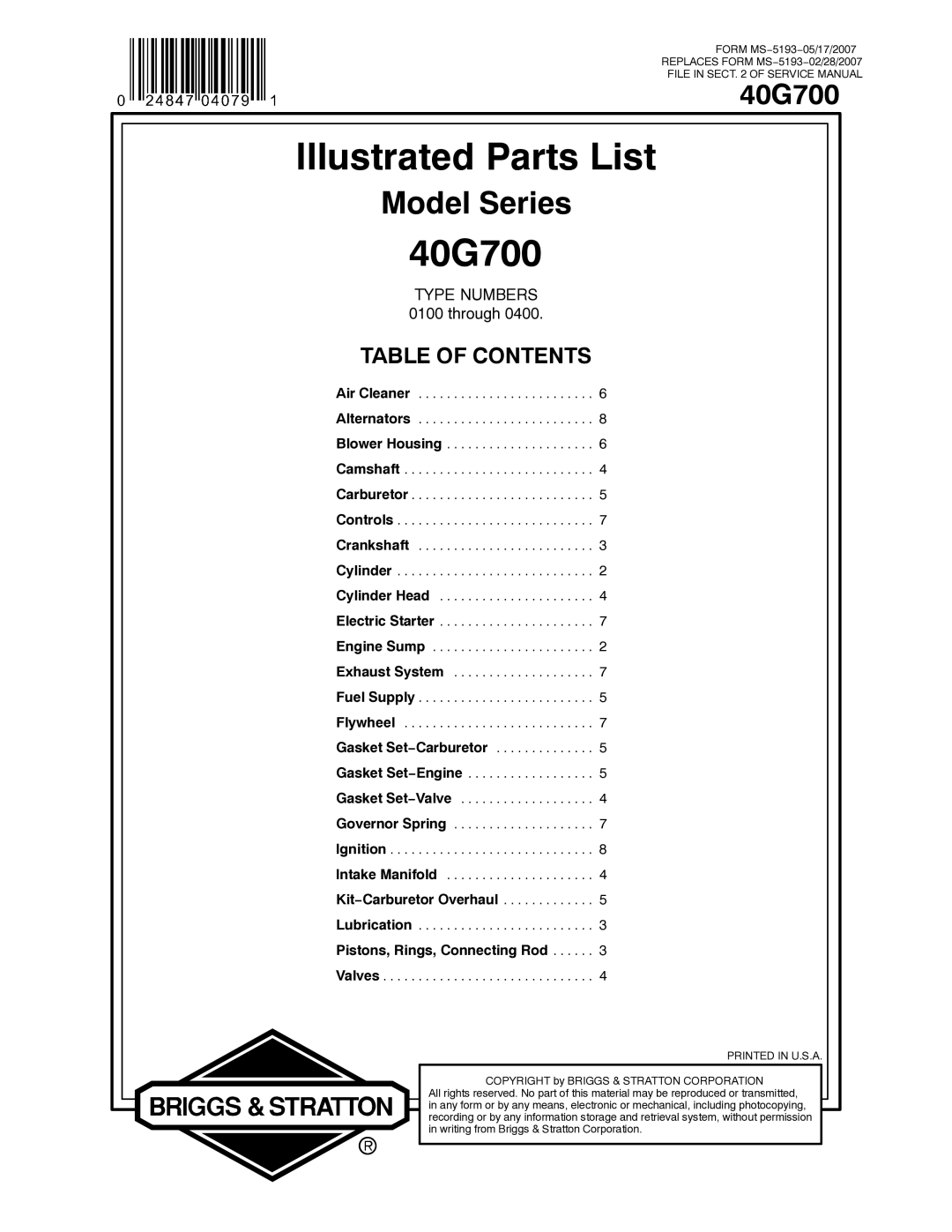

Illustrated Parts List
Model Series
40G700
TYPE NUMBERS 0100 through 0400.
TABLE OF CONTENTS
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 6
Alternators . . . . . . . . . . . . . . . . . . . . . . . . . 8
Blower Housing . . . . . . . . . . . . . . . . . . . . . 6
Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . 5

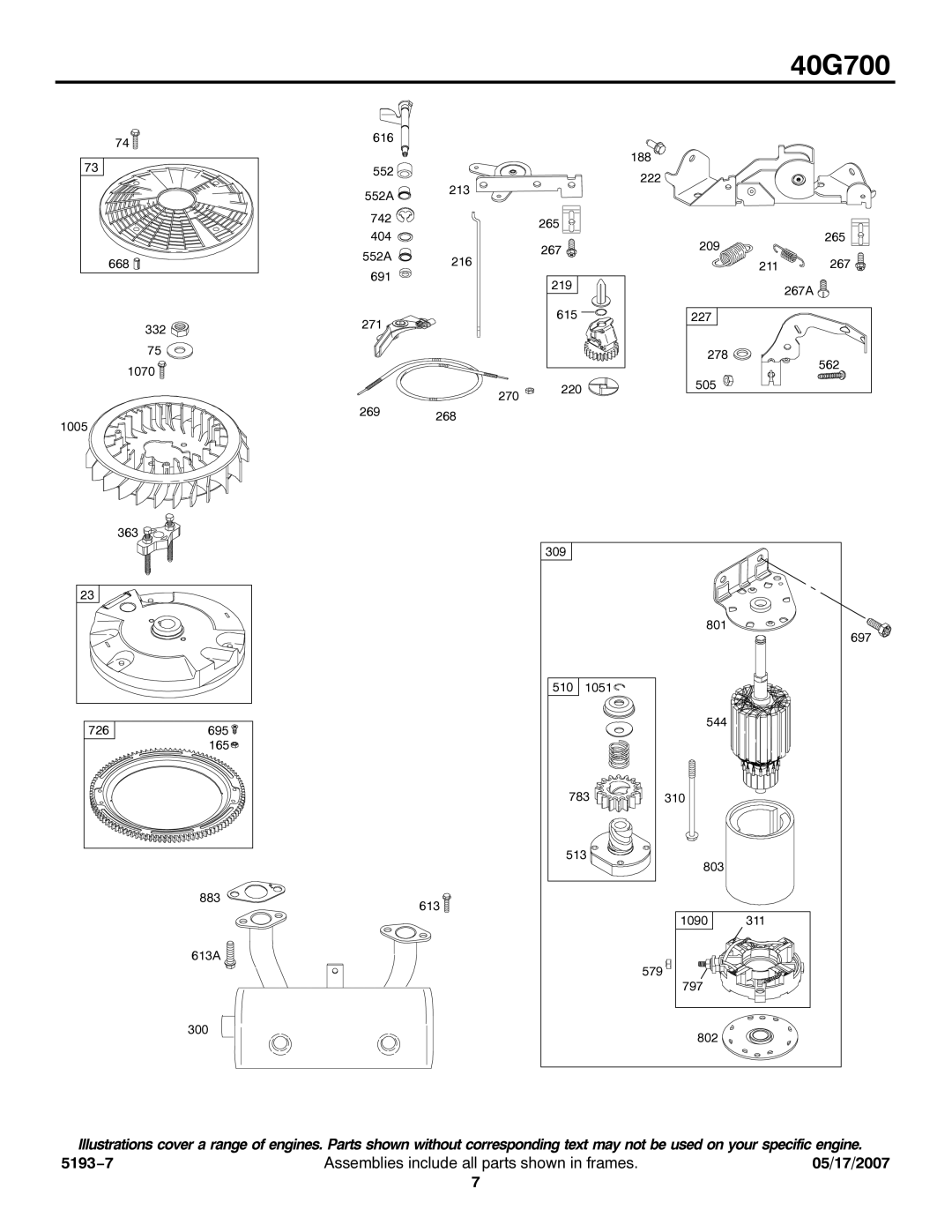

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

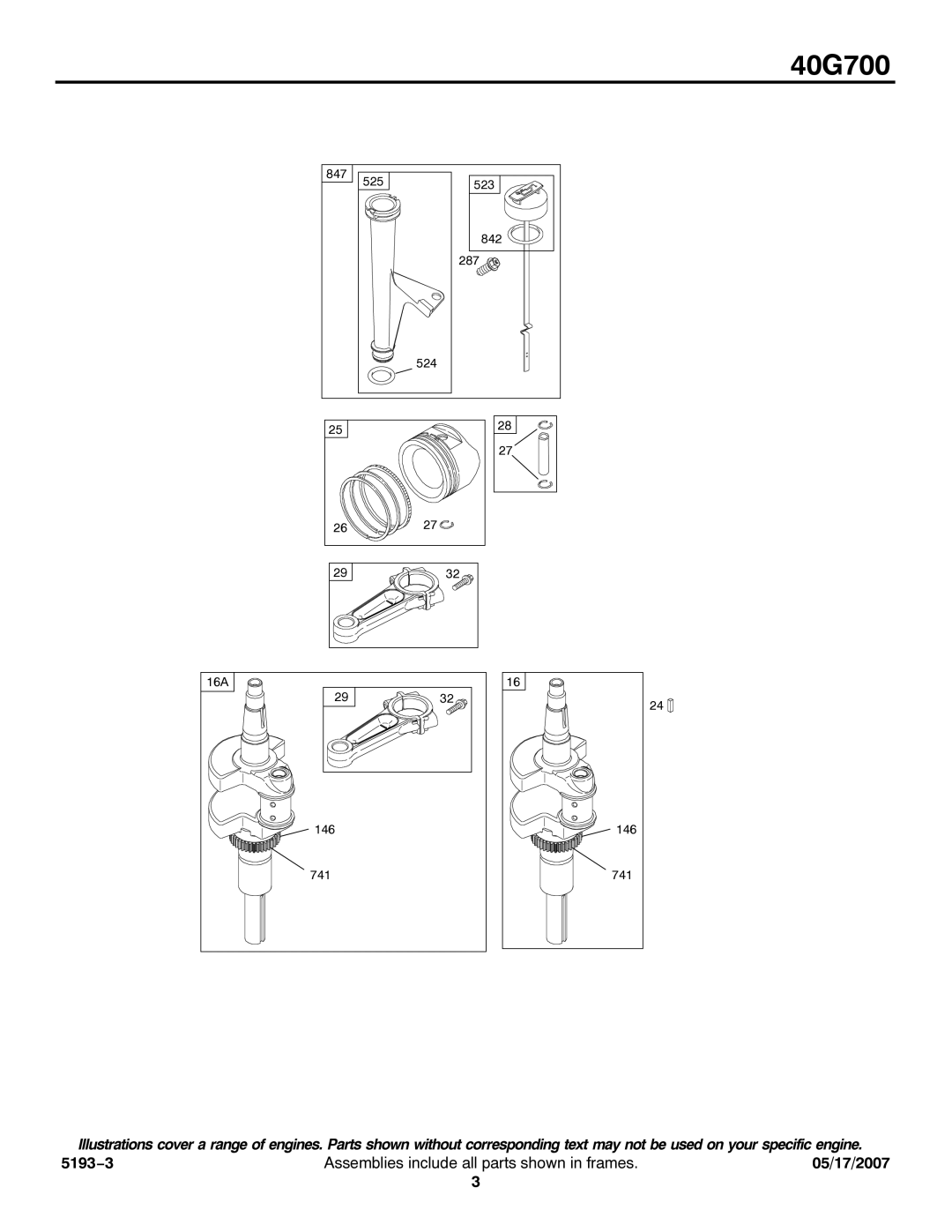

Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 3

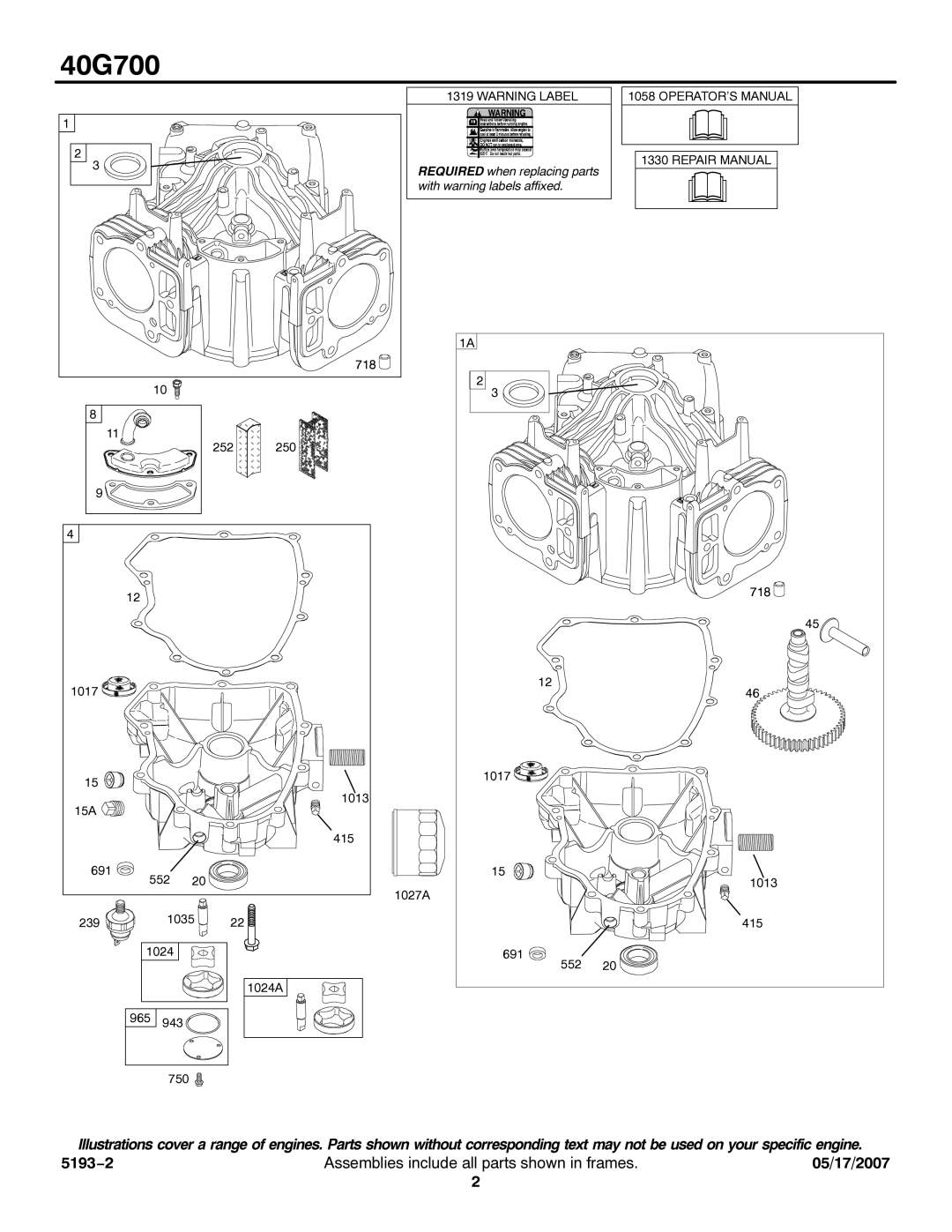

Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cylinder Head . . . . . . . . . . . . . . . . . . . . . . 4
Electric Starter . . . . . . . . . . . . . . . . . . . . . . 7
Engine Sump . . . . . . . . . . . . . . . . . . . . . . . 2
Exhaust System . . . . . . . . . . . . . . . . . . . . 7
Fuel Supply . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flywheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Gasket Set−Carburetor . . . . . . . . . . . . . . 5
Gasket Set−Engine . . . . . . . . . . . . . . . . . . 5
Gasket Set−Valve . . . . . . . . . . . . . . . . . . . 4
Governor Spring . . . . . . . . . . . . . . . . . . . . 7
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Intake Manifold . . . . . . . . . . . . . . . . . . . . . 4
Kit−Carburetor Overhaul . . . . . . . . . . . . . 5
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pistons, Rings, Connecting Rod . . . . . . 3
Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PRINTED IN U.S.A.
COPYRIGHT by BRIGGS & STRATTON CORPORATION
All rights reserved. No part of this material may be reproduced or transmitted, in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage and retrieval system, without permission in writing from Briggs & Stratton Corporation.
