MFC-8700

MFC-8700

FAXLASER PRINTERCOPIERSCANNERPC FAXVIDEO CAPTURETM

FAX

FEATURES

Up to 50 page auto document feeder

Super Quick Scan – as fast as 2 seconds per page

14.4K bps high-speed fax modem

5 second transmission speed using JBIG compression

Broadcasting (up to 182 locations)

4MB memory (up to 310 pages)**

Fax Forwarding, Paging and Remote Retrieval

132 station auto dialing

Call Waiting/Caller ID and Distinctive Ring Detection Ready*

Dual Access and Simultaneous Operations

Automatic Fax/Tel Switch

Answering machine interface

Telephone Index

Automatic legal to letter fax reduction

Delayed transmission

LASER PRINTER

FEATURES

Up to 12 pages per minute printing

True 600 x 600 dpi laser output

Parallel and USB Interfaces standard

Dual 250-sheet universal paper cassettes for 500 sheet total capacity

Works with Windows® 3.1X, 95/98, NT® Workstation 4.0, DOS Applications (PCL-4), and iMac™/G3

Enhanced Memory Management

Includes Bi-Directional Parallel Cable (USB cable not included)

Energy Star Compliant

COPIER

FEATURES

Up to 12 cpm copy speed

600 dpi class copy output

Multi-copying, up to 99, with Sorting

Reduce or enlarge from 50% to 200% in one percent increments

SYSTEM REQUIREMENTS

For Windows® 3.1X and 95

80486/66 MHz or higher processor

8MB RAM (16MB recommended)

50MB available hard disk space

CD-ROM Drive (2x speed or higher)

For Windows® 98 and NT® Workstation 4.0

Pentium 75 MHz or higher processor

16MB RAM (32MB recommended)

50MB available hard disk space

•CD-ROM Drive (2x speed or higher)

For Apple® Power Macintosh G3 or iMac™

MAC O/S 8.51 or higher

5MB available hard disk space

works with

Windows® PRODUCT SPECIFICATIONS iMacTM/G3

SCANNER

FEATURES

Includes award-winning ScanSoft™ PaperPort® and TextBridge® OCR software (for use with Windows® only)

Up to 1200 x 1200 dpi resolution (interpolated)

Up to 300 x 600 dpi optical resolution

Works with Windows® or iMac™/G3

PC FAX

FEATURES

Send faxes directly from your PC

Unlimited Fax and Group Number storage, plus use your own databases

Broadcasting from your PC

PC Fax software from SmithMicro

Requires Windows® 3.1X, 95/98 or NT® Workstation 4.0

(does not work with iMac™/G3)

Includes NetCentric® PC Internet Fax software for low-cost faxing over the Internet

VIDEO CAPTURE

FEATURES

Direct B&W printing of video frames

Capture color video frames into your PC from your VCR, camcorder or digital camera

(for use with Windows® only)

Print, fax, save, export or manipulate any video frames captured in the PC

Uses standard NTSC Video Jack

*Check with local phone company for availability of these services.

**Based on Brother #1 chart with JBIG compression and standard resolution.

Requires an account with NetCentric® Internet Fax Provider.

ADF rating is based on results achieved under the following conditions: 68° to 86° F (20° - 30° C), 50% to 70% RH, use of quality stock paper.

FOR MORE INFORMATION, PLEASE CALL THE BROTHER FAX- BACK SYSTEM AT 1-800-521-2846 (USA), 1-800-681-9838 (CANADA) OR VISIT OUR WEB SITE AT http://www.brother.com

Year

p



compliant





d

a













e



li















p











ld



e













s











cu





o









in





nl





re









yt



a













o h

ftw















ardware andso

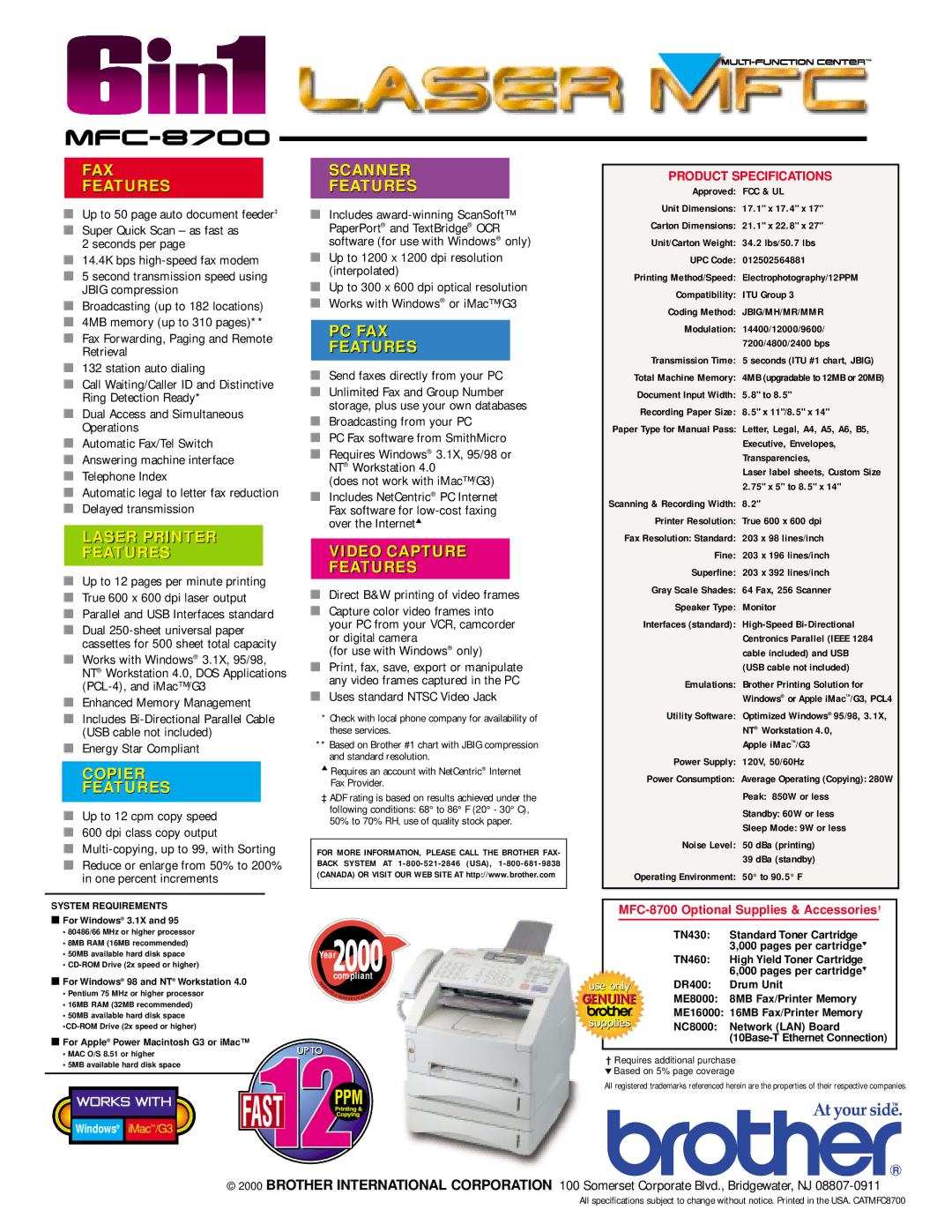

PRODUCT SPECIFICATIONS

Approved: FCC & UL

Unit Dimensions: 17.1" x 17.4" x 17"

Carton Dimensions: 21.1" x 22.8" x 27"

Unit/Carton Weight: 34.2 lbs/50.7 lbs

UPC Code: 012502564881

Printing Method/Speed: Electrophotography/12PPM

Compatibility: ITU Group 3

Coding Method: JBIG/MH/MR/MMR

Modulation: 14400/12000/9600/ 7200/4800/2400 bps

Transmission Time: 5 seconds (ITU #1 chart, JBIG)

Total Machine Memory: 4MB (upgradable to 12MB or 20MB)

Document Input Width: 5.8" to 8.5"

Recording Paper Size: 8.5" x 11"/8.5" x 14"

Paper Type for Manual Pass: Letter, Legal, A4, A5, A6, B5, Executive, Envelopes, Transparencies,

Laser label sheets, Custom Size 2.75" x 5" to 8.5" x 14"

Scanning & Recording Width: 8.2"

Printer Resolution: True 600 x 600 dpi

Fax Resolution: Standard: 203 x 98 lines/inch

Fine: 203 x 196 lines/inch

Superfine: 203 x 392 lines/inch

Gray Scale Shades: 64 Fax, 256 Scanner

Speaker Type: Monitor

Interfaces (standard): High-Speed Bi-Directional Centronics Parallel (IEEE 1284 cable included) and USB (USB cable not included)

Emulations: Brother Printing Solution for

Windows® or Apple iMac/G3, PCL4

Utility Software: Optimized Windows® 95/98, 3.1X,

NT® Workstation 4.0,

Apple iMac/G3

Power Supply: 120V, 50/60Hz

Power Consumption: Average Operating (Copying): 280W

Peak: 850W or less

Standby: 60W or less

Sleep Mode: 9W or less

Noise Level: 50 dBa (printing) 39 dBa (standby)

Operating Environment: 50° to 90.5° F

MFC-8700 Optional Supplies & Accessories

TN430:

Standard Toner Cartridge



3,000 pages per cartridge

TN460:

High Yield Toner Cartridge



6,000 pages per cartridge

DR400:

Drum Unit

ME8000:

8MB Fax/Printer Memory

ME16000:

16MB Fax/Printer Memory

NC8000:

Network (LAN) Board



(10Base-T Ethernet Connection)

Requires additional purchase

Based on 5% page coverage

All registered trademarks referenced herein are the properties of their respective companies.

© 2000 BROTHER INTERNATIONAL CORPORATION 100 Somerset Corporate Blvd., Bridgewater, NJ 08807-0911

All specifications subject to change without notice. Printed in the USA. CATMFC8700
