Brother PT-7100 specifications Power Supply & Tape Cassettes, Keyboard & LCD, Troubleshooting

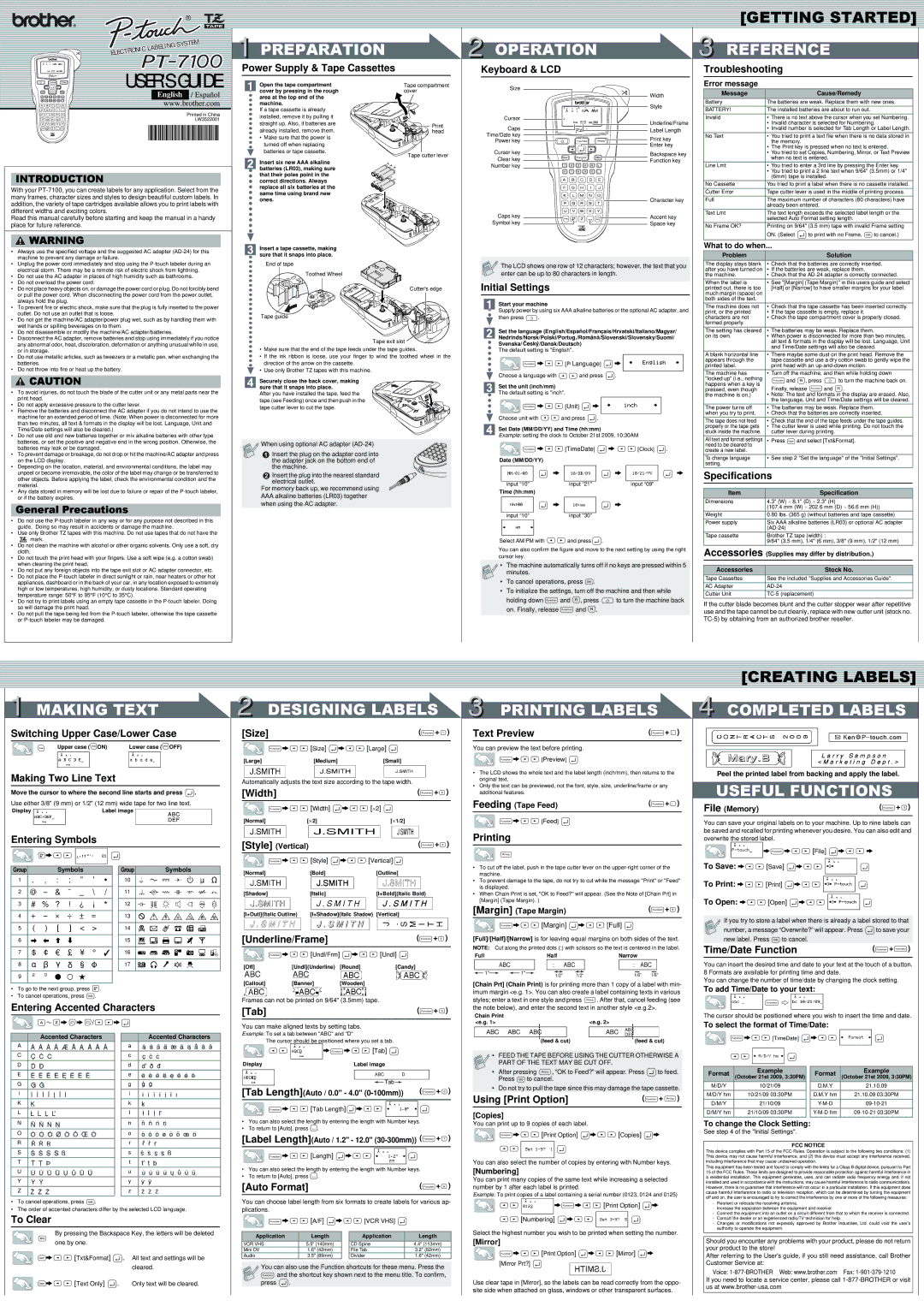

USER'S GUIDE

1PREPARATION

Power Supply & Tape Cassettes

2 OPERATION

Keyboard & LCD

[GETTING STARTED] 3 REFERENCE

Troubleshooting

English / Español

www.brother.com

Printed in China

LW3522001

INTRODUCTION

With your PT-7100, you can create labels for any application. Select from the many frames, character sizes and styles to design beautiful custom labels. In addition, the variety of tape cartridges available allows you to print labels with different widths and exciting colors.

Read this manual carefully before starting and keep the manual in a handy place for future reference.

WARNING

• Always use the specified voltage and the suggested AC adapter (AD-24) for this

machine to prevent any damage or failure.

Open the tape compartment cover by pressing in the rough area at the top end of the machine.

If a tape cassette is already installed, remove it by pulling it straight up. Also, if batteries are already installed, remove them.

•Make sure that the power is turned off when replacing batteries or tape cassette.

Insert six new AAA alkaline batteries (LR03), making sure that their poles point in the correct directions. Always replace all six batteries at the same time using brand new ones.

Insert a tape cassette, making sure that it snaps into place.

Tape compartment cover

Print head

Tape cutter lever

Size

Cursor

Caps Time/Date key Power key

Cursor key Clear key Number key

Caps key Symbol key

Width

Style

Underline/Frame

Label Length

Print key

Enter key

Backspace key

Function key

Character key

Accent key

Space key

Error message

Message		Cause/Remedy
Battery	The batteries are weak. Replace them with new ones.
BATTERY!	The installed batteries are about to run out.
Invalid	• There is no text above the cursor when you set Numbering.
	• Invalid character is selected for Numbering.
	• Invalid number is selected for Tab Length or Label Length.
No Text	• You tried to print a text file when there is no data stored in
	the memory.
	• The Print key is pressed when no text is entered.
	• You tried to set Copies, Numbering, Mirror, or Text Preview
	when no text is entered.
Line Lmt	• You tried to enter a 3rd line by pressing the Enter key.
	• You tried to print a 2 line text when 9/64" (3.5mm) or 1/4"
	(6mm) tape is installed.
No Cassette	You tried to print a label when there is no cassette installed.
Cutter Error	Tape cutter lever is used in the middle of printing process.
Full	The maximum number of characters (80 characters) have
	already been entered.
Text Lmt	The text length exceeds the selected label length or the
	selected Auto Format setting length.
No Frame OK?	Printing on 9/64" (3.5 mm) tape with invalid Frame setting
	ON. (Select	to print with no Frame,	to cancel.)

What to do when...

Problem Solution

• Unplug the power cord immediately and stop using the P-touch labeler during an

electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use the AC adapter in places of high humidity such as bathrooms.

• Do not overload the power cord.

• Do not place heavy objects on, or damage the power cord or plug. Do not forcibly bend

or pull the power cord. When disconnecting the power cord from the power outlet,

always hold the plug.

• To prevent fire or electric shock, make sure that the plug is fully inserted to the power

outlet. Do not use an outlet that is loose.

• Do not get the machine/AC adapter/power plug wet, such as by handling them with

wet hands or spilling beverages on to them.

• Do not disassemble or modify the machine/AC adapter/batteries.

• Disconnect the AC adapter, remove batteries and stop using immediately if you notice

End of tape

Toothed Wheel

Tape guide

Cutter's edge

The LCD shows one row of 12 characters; however, the text that you enter can be up to 80 characters in length.

Initial Settings

Start your machine

Supply power by using six AAA alkaline batteries or the optional AC adapter, and

then press .

Set the language (English/Español/Français/Hrvatski/Italiano/Magyar/ Nedrlnds/Norsk/Polski/Portug./Română/Slovenski/Slovensky/Suomi/

The display stays blank	• Check that the batteries are correctly inserted.
after you have turned on	• If the batteries are weak, replace them.
the machine.	• Check that the AD-24 adapter is correctly connected.
When the label is	• See "[Margin] (Tape Margin)" in this users guide and select
printed out, there is too	[Half] or [Narrow] to have smaller margins for your label.
much margin (space) on
both sides of the text.
The machine does not	• Check that the tape cassette has been inserted correctly.
print, or the printed	• If the tape cassette is empty, replace it.
characters are not	• Check the tape compartment cover is properly closed.
formed properly.
The setting has cleared	• The batteries may be weak. Replace them.
on its own.	• When power is disconnected for more than two minutes,

	any abnormal odor, heat, discoloration, deformation or anything unusual while in use,
	or in storage.
•	Do not use metallic articles, such as tweezers or a metallic pen, when exchanging the
	batteries.
•	Do not throw into fire or heat up the battery.

CAUTION

•To avoid injuries, do not touch the blade of the cutter unit or any metal parts near the print head.

•Do not apply excessive pressure to the cutter lever.

•Remove the batteries and disconnect the AC adapter if you do not intend to use the machine for an extended period of time. (Note: When power is disconnected for more than two minutes, all text & formats in the display will be lost. Language, Unit and Time/Date settings will also be cleared.)

•Do not use old and new batteries together or mix alkaline batteries with other type batteries, or set the positive and negative end in the wrong position. Otherwise, the batteries may leak or be damaged.

•To prevent damage or breakage, do not drop or hit the machine/AC adapter and press on the LCD display.

•Depending on the location, material, and environmental conditions, the label may unpeel or become irremovable, the color of the label may change or be transferred to other objects. Before applying the label, check the environmental condition and the material.

•Any data stored in memory will be lost due to failure or repair of the P-touch labeler, or if the battery expires.

General Precautions

•Do not use the P-touch labeler in any way or for any purpose not described in this guide. Doing so may result in accidents or damage the machine.

•Use only Brother TZ tapes with this machine. Do not use tapes that do not have the

mark.

•Do not clean the machine with alcohol or other organic solvents. Only use a soft, dry cloth.

•Do not touch the print head with your fingers. Use a soft wipe (e.g. a cotton swab) when cleaning the print head.

•Do not put any foreign objects into the tape exit slot or AC adapter connector, etc.

•Do not place the P-touch labeler in direct sunlight or rain, near heaters or other hot appliances, dashboard or in the back of your car, in any location exposed to extremely

high or low temperatures, high humidity, or dusty locations. Standard operating temperature range: 50°F to 95°F (10°C to 35°C).

•Do not try to print labels using an empty tape cassette in the P-touch labeler. Doing so will damage the print head.

•Do not pull the tape being fed from the P-touch labeler, otherwise the tape cassette or P-touch labeler may be damaged.

Tape exit slot

•Make sure that the end of the tape feeds under the tape guides.

•If the ink ribbon is loose, use your finger to wind the toothed wheel in the direction of the arrow on the cassette.

•Use only Brother TZ tapes with this machine.

Securely close the back cover, making sure that it snaps into place.

After you have installed the tape, feed the tape (see Feeding) once and then push in the tape cutter lever to cut the tape.

When using optional AC adapter (AD-24)

Insert the plug on the adapter cord into the adapter jack on the bottom end of the machine.

Insert the plug into the nearest standard electrical outlet.

For memory back up, we recommend using

AAAalkaline batteries (LR03) together when using the AC adapter.

Svenska/ /Dansk/Deutsch)

The default setting is "English".

>	[ Language]	>
Choose a language with	and press	.

Set the unit (inch/mm)

The default setting is "inch".

> [Unit] >

Choose unit with and press .

Set Date (MM/DD/YY) and Time (hh:mm)

Example: setting the clock to October 21st 2009, 10:30AM

>	[TimeDate]	>	[Clock]	.
Date (MM/DD/YY)
>		>		>
input “10”	input “21”		input “09”

Time (hh:mm)
>	>
input “10”	input “30”

Select AM/PM with and press .

You can also confirm the figure and move to the next setting by using the right cursor key.

• The machine automatically turns off if no keys are pressed within 5 minutes.

•To cancel operations, press .

•To initialize the settings, turn off the machine and then while

holding down and , press to turn the machine back

on. Finally, release and .

	all text & formats in the display will be lost. Language, Unit
	and Time/Date settings will also be cleared.
A blank horizontal line	• There maybe some dust on the print head. Remove the
appears through the	tape cassette and use a dry cotton swab to gently wipe the
printed label.	print head with an up-and-down motion.
The machine has	• Turn off the machine, and then while holding down
"locked up" (i.e., nothing	and	, press		to turn the machine back on.
happens when a key is
	Finally, release		and	.
pressed, even though
the machine is on.)	• Note: The text and formats in the display are erased. Also,
	the language, Unit and Time/Date settings will be cleared.
The power turns off	• The batteries may be weak. Replace them.
when you try to print.	• Check that the batteries are correctly inserted.
The tape does not feed	• Check that the end of the tape feeds under the tape guides.
properly or the tape gets	• The cutter lever is used while printing. Do not touch the
stuck inside the machine.	cutter lever during printing.
All text and format settings	• Press	and select [Txt&Format].
need to be cleared to
create a new label.
To change language	• See step 2 "Set the language" of the "Initial Settings".
setting.
Specifications

Item	Specification
Dimensions	4.3" (W) × 8.1" (D) × 2.3" (H)
	(107.4 mm (W) × 202.6 mm (D) × 56.6 mm (H))
Weight	0.80 lbs. (365 g) (without batteries and tape cassette)
Power supply	Six AAA alkaline batteries (LR03) or optional AC adapter
	(AD-24)
Tape cassette	Brother TZ tape (width) :
	9/64" (3.5 mm), 1/4" (6 mm), 3/8" (9 mm), 1/2" (12 mm)
Accessories (Supplies may differ by distribution.)

Accessories	Stock No.
Tape Cassettes	See the included "Supplies and Accessories Guide".
AC Adapter	AD-24
Cutter Unit	TC-5 (replacement)

If the cutter blade becomes blunt and the cutter stopper wear after repetitive use and the tape cannot be cut cleanly, replace with new cutter unit (stock no. TC-5) by obtaining from an authorized brother reseller.

1 MAKING TEXT

Switching Upper Case/Lower Case

Upper case ( ON) Lower case ( OFF)

Making Two Line Text

Move the cursor to where the second line starts and press .

Use either 3/8" (9 mm) or 1/2" (12 mm) wide tape for two line text.

Display Label image

Entering Symbols

>

2 DESIGNING LABELS

[Size]		(	+ )
>	[Size] >	[Large]
[Large]	[Medium]	[Small]

Automatically adjusts the text size according to the tape width.

[Width]			(	+	)
>	[Width]	>	[×2]
[Normal]	[×2]		[×1/2]
[Style] (Vertical)			(	+	)
>	[Style]	>	[Vertical]

3 PRINTING LABELS

Text Preview ( + )

You can preview the text before printing.

> [Preview]

•The LCD shows the whole text and the label length (inch/mm), then returns to the original text.

•Only the text can be previewed, not the font, style, size, underline/frame or any additional features.

Feeding (Tape Feed) ( + )

> [Feed]

Printing

[CREATING LABELS] 4 COMPLETED LABELS

Peel the printed label from backing and apply the label.

USEFUL FUNCTIONS

File (Memory) ( + )

You can save your original labels on to your machine. Up to nine labels can be saved and recalled for printing whenever you desire. You can also edit and overwrite the stored label.

>> [File] > >

Group Symbols

1

2

3

4

5

6

7

8

9

•To go to the next group, press .

•To cancel operations, press .

Group Symbols

10

11

12

13

14

15

16

17

[Normal]	[Bold]	[Outline]
[Shadow]	[Italic]	[I+Bold](Italic Bold)
[I+Outl](Italic Outline)	[I+Shadow](Italic Shadow)	[Vertical]

[Underline/Frame]( + )

> [Undl/Frm] > [Undl]

[Off] [Undl](Underline) [Round] [Candy]

[Callout] [Banner] [Wooden]

Frames can not be printed on 9/64" (3.5mm) tape.

•To cut off the label, push in the tape cutter lever on the upper-right corner of the machine.

•To prevent damage to the tape, do not try to cut while the message "Print" or "Feed" is displayed.

•When Chain Print is set, "OK to Feed?" will appear. (See the Note of [Chain Prt] in [Margin] (Tape Margin). )

[Margin] (Tape Margin) ( + )

> [Margin] > [Full]

[Full]/[Half]/[Narrow] is for leaving equal margins on both sides of the text.

NOTE: Cut along the printed dots (:) with scissors so the text is centered in the label.

FullHalfNarrow

	ABC		:	ABC		: ABC
1"		1"	1/2"	1/2"	1/6"		1/6"

[Chain Prt] (Chain Print) is for printing more than 1 copy of a label with min- imum margin <e.g. 1>. You can also create a label containing texts in various

styles; enter a text in one style and press . After that, cancel feeding (see

To Save: > [Save] >

To Print: > [Print] >

To Open: > [Open] >

If you try to store a label when there is already a label stored to that

number, a message “Overwrite?” will appear. Press to save your

new label. Press to cancel.

Time/Date Function ( + )

You can insert the desired time and date to your text at the touch of a button. 8 Formats are available for printing time and date.

You can change the number of time/date by changing the clock setting.

To add Time/Date to your text:

Entering Accented Characters

>>/>

[Tab] ( + )

You can make aligned texts by setting tabs.

the note below), and enter the second text in another style <e.g.2>.

Chain Print
<e.g. 1>	<e.g. 2>

ABC

The cursor should be positioned where you wish to insert the time and date.

To select the format of Time/Date:

Accented Characters

A

C

D

E

G

I

K

L

N

O

R

S

T

U

Y

Z

Accented Characters

a

c

d

e

g

i

k

l

n

o

r

s

t

u

y

z

Example: To set a tab between "ABC" and "D"

The cursor should be positioned where you set a tab.

>> [Tab]

Display	Label image
		ABC		D
			Tab		( + )
[Tab Length](Auto / 0.0" - 4.0" (0-100mm))

> [Tab Length] >

•You can also select the length by entering the length with Number keys.

•To return to [Auto], press .

[Label Length](Auto / 1.2" - 12.0" (30-300mm)) ( +)

> [Length] >

•You can also select the length by entering the length with Number keys.

•To return to [Auto], press .

[Auto Format] ( + )

ABC ABC ABC	ABC DEF
(feed & cut)	(feed & cut)

• FEED THE TAPE BEFORE USING THE CUTTER OTHERWISE A PART OF THE TEXT MAY BE CUT OFF.

•After pressing , "OK to Feed?" will appear. Press to feed.

Press to cancel.

•Do not try to pull the tape since this may damage the tape cassette.

Using [Print Option] ( + )

[Copies]

You can print up to 9 copies of each label.

> [Print Option] > [Copies] >

You can also select the number of copies by entering with Number keys.

[Numbering]

You can print many copies of the same text while increasing a selected number by 1 after each label is printed.

Example: To print copies of a label containing a serial number (0123, 0124 and 0125)

> [TimeDate] >

Format	Example	Format	Example
	(October 21st 2009, 3:30PM)		(October 21st 2009, 3:30PM)
M/D/Y	10/21/09	D.M.Y	21.10.09
M/D/Y hm	10/21/09 03:30PM	D.M.Y hm	21.10.09 03:30PM
D/M/Y	21/10/09	Y-M-D	09-10-21
D/M/Y hm	21/10/09 03:30PM	Y-M-D hm	09-10-21 03:30PM

To change the Clock Setting:

See step 4 of the "Initial Settings".

FCC NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•To cancel operations, press .

•The order of accented characters differ by the selected LCD language.

To Clear

By pressing the Backspace Key, the letters will be deleted one by one.

> [Txt&Format] . All text and settings will be cleared.

> [Text Only] . Only text will be cleared.

You can choose label length from six formats to create labels for various ap- plications.

> [A/F] > [VCR VHS]

Application	Length	Application	Length
VCR VHS	5.5" (140mm)	CD Spine	4.4" (113mm)
Mini DV	1.6" (42mm)	File Tab	3.2" (82mm)
Audio	3.5" (89mm)	Divider	1.6" (42mm)

You can also use the Function shortcuts for these menu. Press the and the shortcut key shown next to the menu title. To confirm,

press .

>> [Print Option] >

[Numbering] >

Select the highest number you wish to be printed when setting the number.

[Mirror]

> [Print Option] > [Mirror] > [Mirror Prt?]

Use clear tape in [Mirror], so the labels can be read correctly from the oppo- site side when attached on glass, windows or other transparent surfaces.

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

-Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user’s authority to operate the equipment.

Should you encounter any problems with your product, please do not return your product to the store!

After referring to the User's guide, if you still need assistance, call Brother Customer Service at:

Voice: 1-877-BROTHER Web: www.brother.com Fax: 1-901-379-1210

If you need to locate a service center, please call 1-877-BROTHER or visit us at www.brother-usa.com
