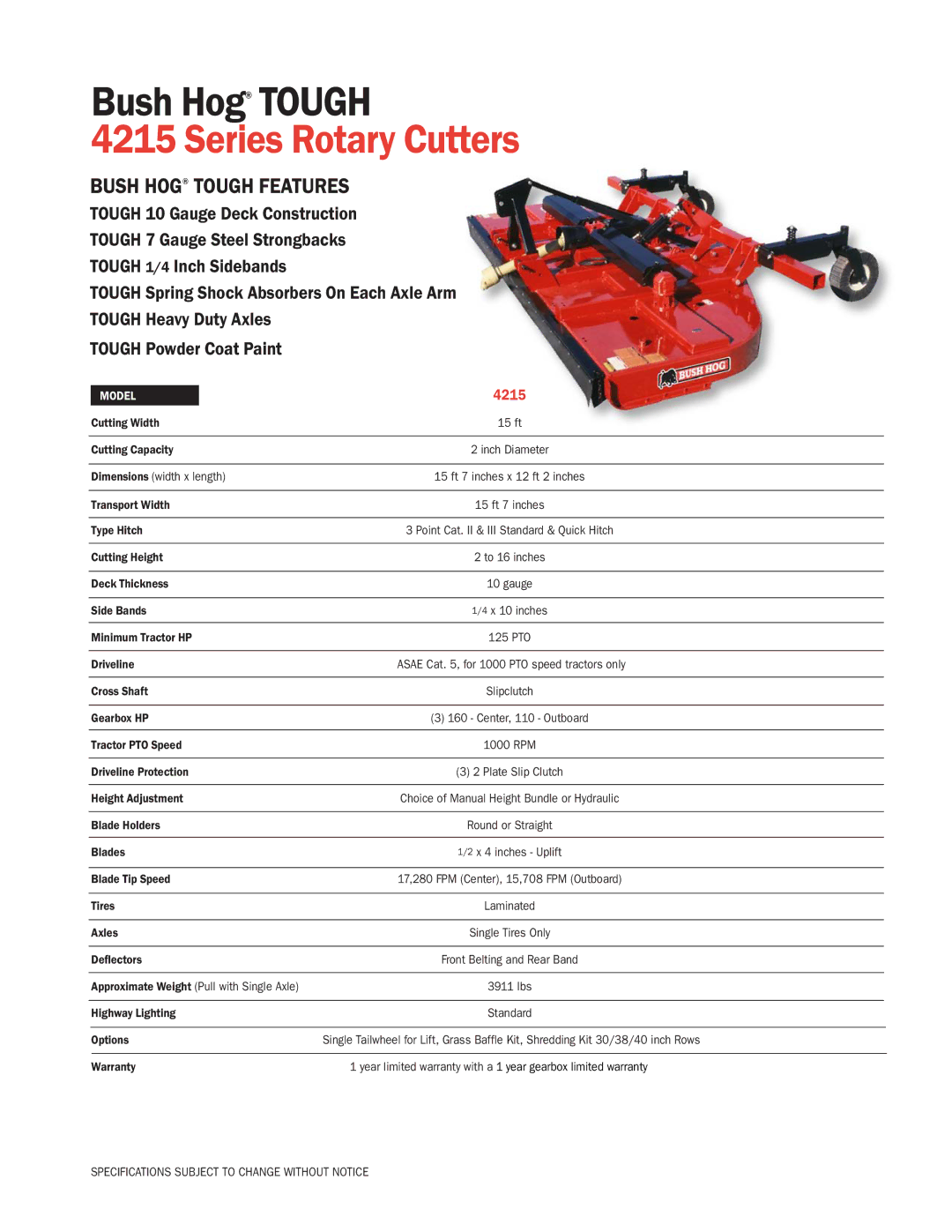

Bush Hog® TOUGH
4215 Series Rotary Cutters
Bush Hog® TOUGH Features
TOUGH 10 Gauge Deck Construction
TOUGH 7 Gauge Steel Strongbacks
TOUGH 1/4 Inch Sidebands
TOUGH Spring Shock Absorbers On Each Axle Arm
TOUGH Heavy Duty Axles
TOUGH Powder Coat Paint
| Model |
| 4215 |
|
| Cutting Width | 15 ft |
| |
|
|
|
| |
| Cutting Capacity | 2 inch Diameter |
| |
|
|
|
| |
| Dimensions (width x length) | 15 ft 7 inches x 12 ft 2 inches |
| |
|
|
|
| |
| Transport Width | 15 ft 7 inches |
| |
|
|
|
| |
| Type Hitch | 3 Point Cat. II & III Standard & Quick Hitch |
| |
|
|
|
| |
| Cutting Height | 2 to 16 inches |
| |
|
|
|
| |
| Deck Thickness | 10 gauge |
| |
|
|
|
| |
| Side Bands | 1/4 x 10 inches |
| |
|
|
|
| |
| Minimum Tractor HP | 125 PTO |
| |
|
|
|
| |
| Driveline | ASAE Cat. 5, for 1000 PTO speed tractors only |
| |
|
|
|
| |
| Cross Shaft | Slipclutch |
| |
|
|
|
| |
| Gearbox HP | (3) 160 - Center, 110 - Outboard |
| |
|
|
|
| |
| Tractor PTO Speed | 1000 RPM |
| |
|
|
|
| |
| Driveline Protection | (3) 2 Plate Slip Clutch |
| |
|
|
|
| |
| Height Adjustment | Choice of Manual Height Bundle or Hydraulic |
| |
|
|
|
| |
| Blade Holders | Round or Straight |
| |
|
|
|
| |
| Blades | 1/2 x 4 inches - Uplift |
| |
|
|
|
| |
| Blade Tip Speed | 17,280 FPM (Center), 15,708 FPM (Outboard) |
| |
|
|
|
| |
| Tires | Laminated |
| |
|
|
|
| |
| Axles | Single Tires Only |
| |
|
|
|
| |
| Deflectors | Front Belting and Rear Band |
| |
|
|
|
| |
| Approximate Weight (Pull with Single Axle) | 3911 lbs |
| |
|
|
|
| |
| Highway Lighting | Standard |
| |
|
|
|
| |
| Options | Single Tailwheel for Lift, Grass Baffle Kit, Shredding Kit 30/38/40 inch Rows |
| |
|
|
|
| |
| Warranty | 1 year limited warranty with a 1 year gearbox limited warranty |
| |
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE | Page 28 |
