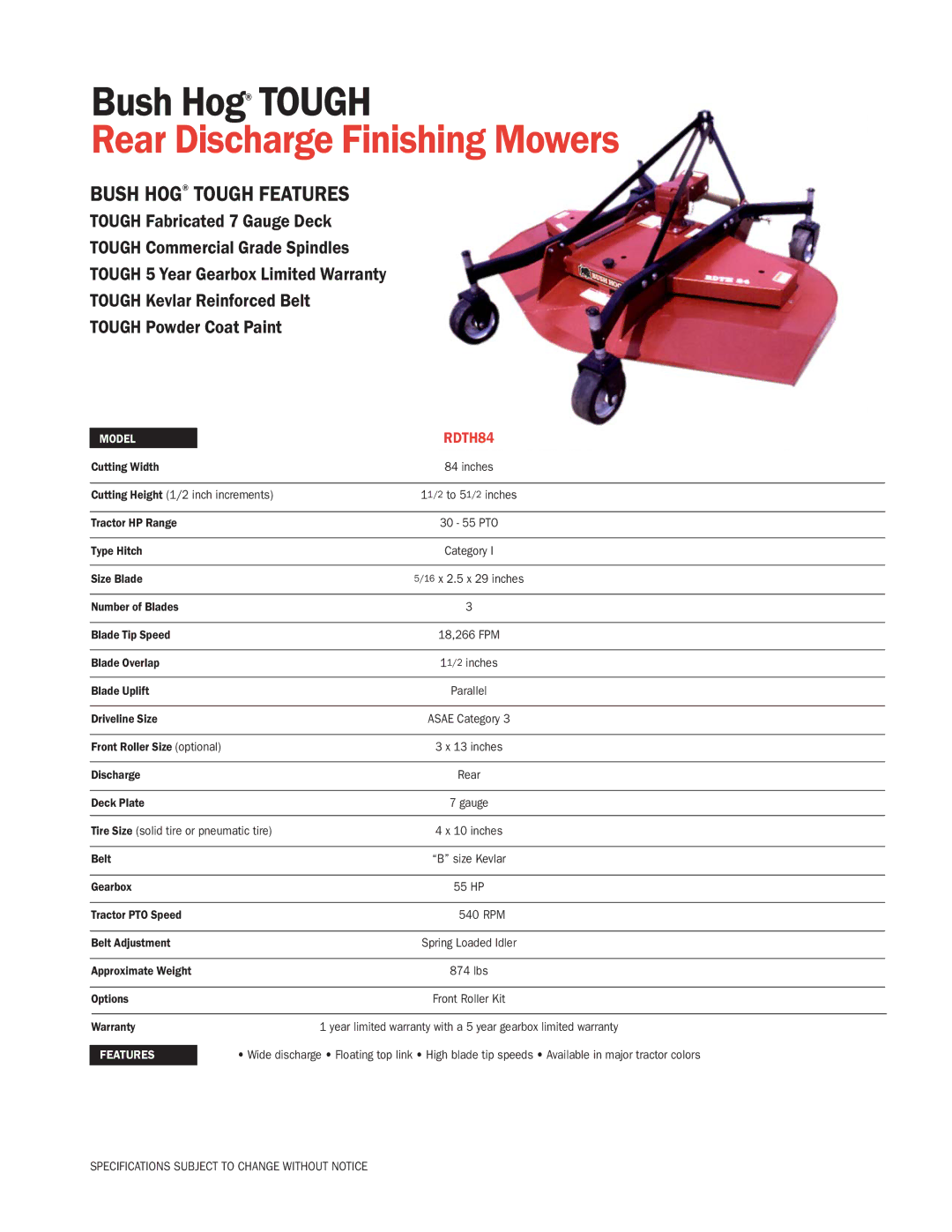

Bush Hog® TOUGH
Rear Discharge Finishing Mowers
Bush Hog® TOUGH Features
TOUGH Fabricated 7 Gauge Deck
TOUGH Commercial Grade Spindles
TOUGH 5 Year Gearbox Limited Warranty
TOUGH Kevlar Reinforced Belt
TOUGH Powder Coat Paint
| Model |
|
|
|
| RDTH84 |
|
Cutting Width |
|
|
| 84 inches |
| |
|
|
|
|
| ||
Cutting Height (1/2 inch increments) | 1 |
| to 5 inches |
| ||
|
|
|
| 1/2 | 1/2 |
|
|
|
|
|
| ||
Tractor HP Range |
|
| 30 - 55 PTO |
| ||
|
|
|
|
|
| |
Type Hitch |
|
|
| Category I |
| |
|
|
|
| |||
Size Blade |
| 5/16 x 2.5 x 29 inches |
| |||
|
|
|
|
|
| |
Number of Blades |
|
|
| 3 |
| |
|
|
|
|
| ||
Blade Tip Speed |
|
| 18,266 FPM |
| ||
|
|
|
|
| ||
Blade Overlap |
|
| 11/2 inches |
| ||
|
|
|
|
|
| |
Blade Uplift |
|
|
| Parallel |
| |
|
|
|
|
| ||
Driveline Size |
|
| ASAE Category 3 |
| ||
|
|
|
|
| ||
Front Roller Size (optional) |
|
| 3 x 13 inches |
| ||
|
|
|
|
|
| |
Discharge |
|
|
| Rear |
| |
|
|
|
|
|
| |
Deck Plate |
|
|
| 7 gauge |
| |
|
|
|
| |||
Tire Size (solid tire or pneumatic tire) |
| 4 x 10 inches |
| |||
|
|
|
|
| ||
Belt |
|
| “B” size Kevlar |
| ||
|
|
|
|
|
| |
Gearbox |
|
|
| 55 HP |
| |
|
|
|
|
|
| |
Tractor PTO Speed |
|
|
| 540 RPM |
| |
|
|
|
| |||
Belt Adjustment |
| Spring Loaded Idler |
| |||
|
|
|
|
|
| |
Approximate Weight |
|
|
| 874 lbs |
| |
|
|
|
|
| ||
Options |
|
| Front Roller Kit |
| ||
|
|
|
| |||
Warranty |
| 1 year limited warranty with a 5 year gearbox limited warranty |
| |||
| • Wide discharge • Floating top link • High blade tip speeds • Available in major tractor colors |
| ||||
| FEATURES |
|
| ||||
|
|
|
|
|
|
|
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE | Page 8 |
