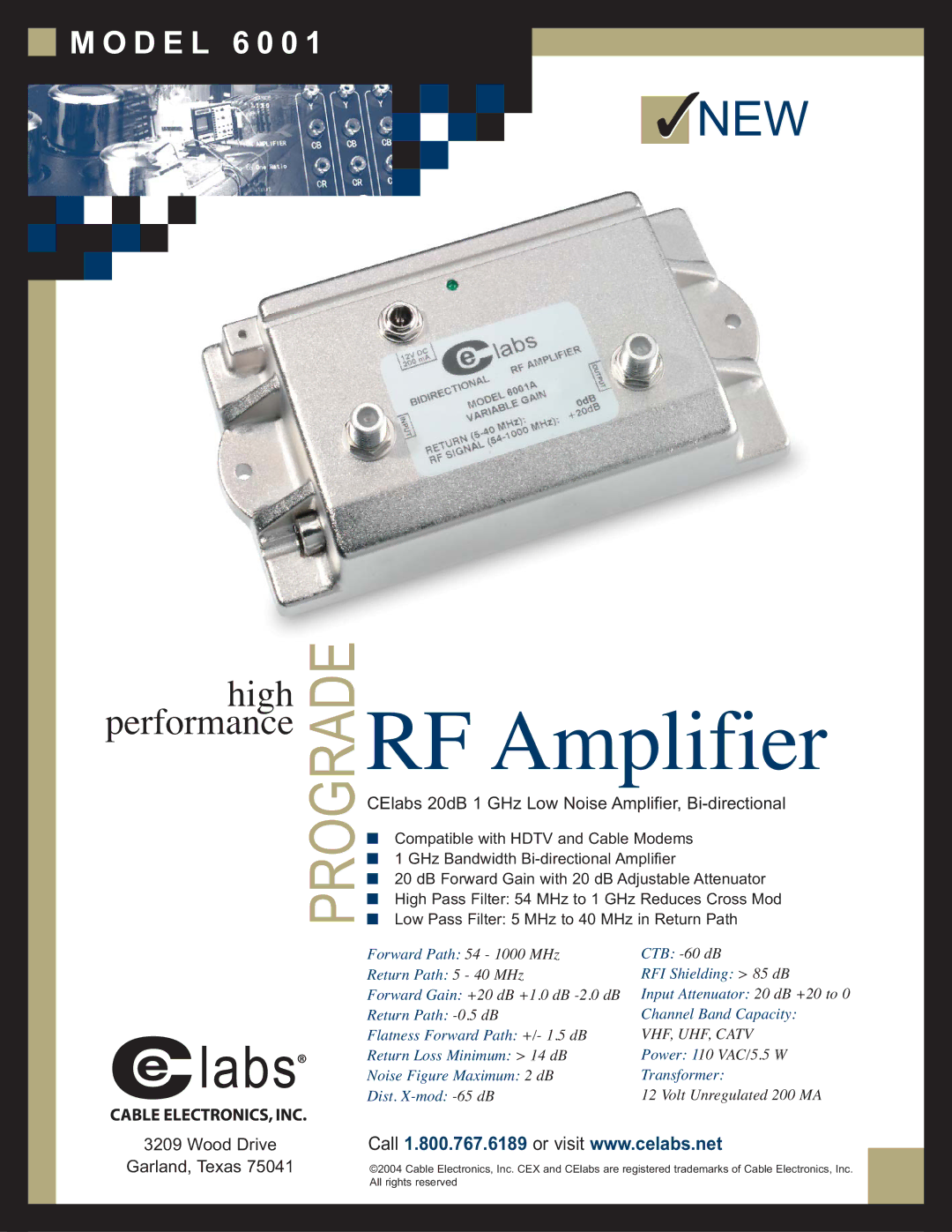

Cable Electronics 6001 manual RF Amplifier, CElabs 20dB 1 GHz Low Noise Amplifier, Bi-directional

M O D E L 6 0 0 1

high performance

✓NEW

PROGRADE
	■ Low Pass Filter: 5 MHz to 40 MHz in Return Path
	RF Amplifier
	CElabs 20dB 1 GHz Low Noise Amplifier, Bi-directional
	■ Compatible with HDTV and Cable Modems
	■ 1 GHz Bandwidth Bi-directional Amplifier
	■ 20 dB Forward Gain with 20 dB Adjustable Attenuator
	■ High Pass Filter: 54 MHz to 1 GHz Reduces Cross Mod

Forward Path: 54 - 1000 MHz

Return Path: 5 - 40 MHz

Forward Gain: +20 dB +1.0 dB -2.0 dB

Return Path: -0.5 dB

Flatness Forward Path: +/- 1.5 dB

Return Loss Minimum: > 14 dB

Noise Figure Maximum: 2 dB

Dist. X-mod: -65 dB

CTB: -60 dB

RFI Shielding: > 85 dB

Input Attenuator: 20 dB +20 to 0 Channel Band Capacity:

VHF, UHF, CATV Power: 110 VAC/5.5 W Transformer:

12 Volt Unregulated 200 MA
