1. | |
2. | Rugged ABS plastic casing withstands repeated use |
3. | Separate tone and volume controls |
4. | 6 hour battery use with low battery indicator and unit still |
| operates while recharging its |

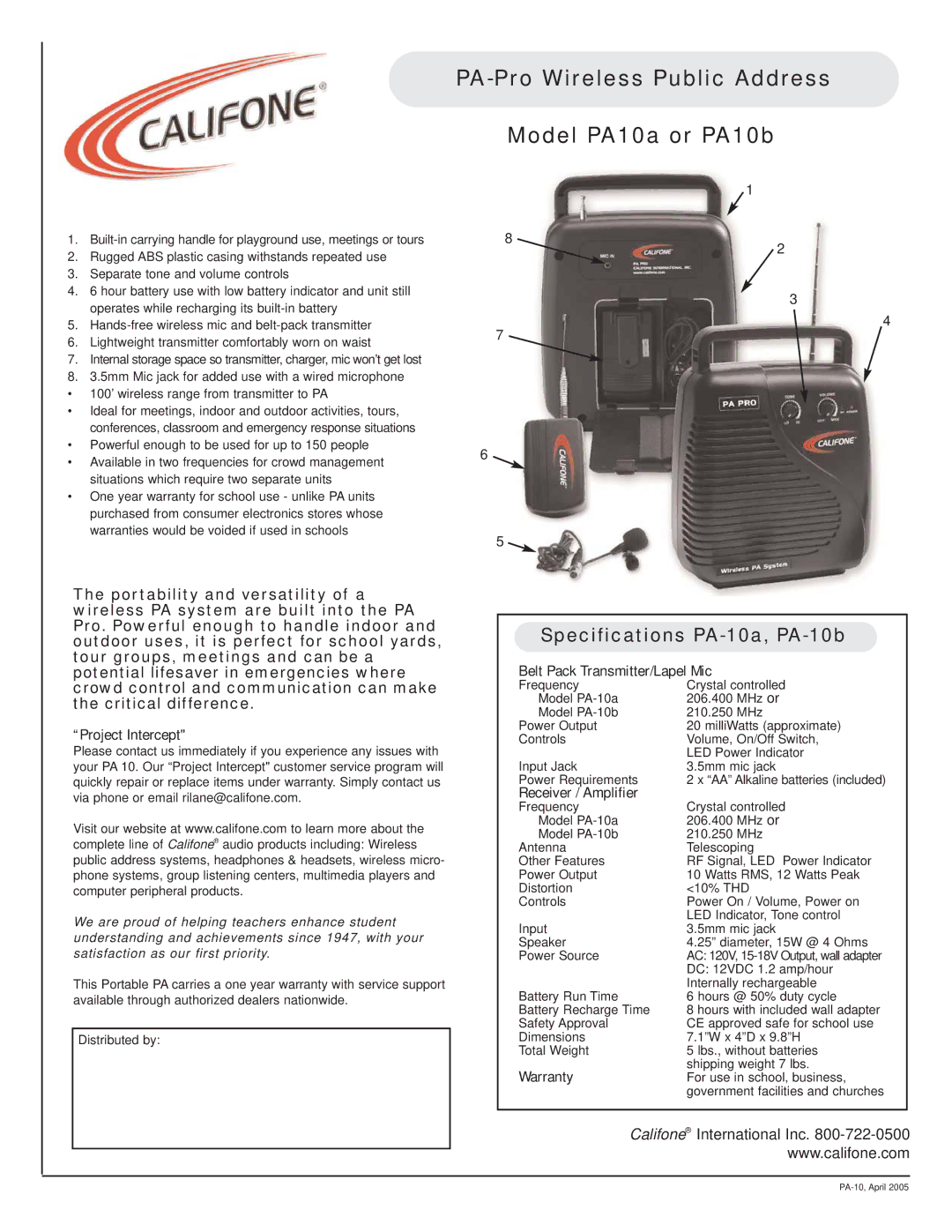

PA-Pro Wireless Public Address
Model PA10a or PA10b
| 1 |
8 | 2 |
|
3
5. | |
6. | Lightweight transmitter comfortably worn on waist |
7. | Internal storage space so transmitter, charger, mic won’t get lost |
8. | 3.5mm Mic jack for added use with a wired microphone |
• 100’ wireless range from transmitter to PA |
• Ideal for meetings, indoor and outdoor activities, tours, |
conferences, classroom and emergency response situations |
• Powerful enough to be used for up to 150 people |
• Available in two frequencies for crowd management |
situations which require two separate units |
• One year warranty for school use - unlike PA units |
purchased from consumer electronics stores whose |
warranties would be voided if used in schools |
7
6
4
The portability and versatility of a wireless PA system are built into the PA Pro. Powerful enough to handle indoor and outdoor uses, it is perfect for school yards, tour groups, meetings and can be a potential lifesaver in emergencies where crowd control and communication can make the critical difference.
“Project Intercept"
Please contact us immediately if you experience any issues with your PA 10. Our “Project Intercept" customer service program will quickly repair or replace items under warranty. Simply contact us via phone or email rilane@califone.com.
Visit our website at www.califone.com to learn more about the complete line of Califone® audio products including: Wireless public address systems, headphones & headsets, wireless micro- phone systems, group listening centers, multimedia players and computer peripheral products.
We are proud of helping teachers enhance student understanding and achievements since 1947, with your satisfaction as our first priority.
This Portable PA carries a one year warranty with service support available through authorized dealers nationwide.
Distributed by:
5
Specifications PA-10a, PA-10b
Belt Pack Transmitter/Lapel Mic | |
Frequency | Crystal controlled |
Model | 206.400 MHz or |
Model | 210.250 MHz |
Power Output | 20 milliWatts (approximate) |
Controls | Volume, On/Off Switch, |
Input Jack | LED Power Indicator |
3.5mm mic jack | |
Power Requirements | 2 x “AA” Alkaline batteries (included) |
Receiver / Amplifier | Crystal controlled |
Frequency | |
Model | 206.400 MHz or |
Model | 210.250 MHz |
Antenna | Telescoping |
Other Features | RF Signal, LED Power Indicator |
Power Output | 10 Watts RMS, 12 Watts Peak |
Distortion | <10% THD |
Controls | Power On / Volume, Power on |
Input | LED Indicator, Tone control |
3.5mm mic jack | |
Speaker | 4.25” diameter, 15W @ 4 Ohms |
Power Source | AC: 120V, |
| DC: 12VDC 1.2 amp/hour |
Battery Run Time | Internally rechargeable |
6 hours @ 50% duty cycle | |
Battery Recharge Time | 8 hours with included wall adapter |
Safety Approval | CE approved safe for school use |
Dimensions | 7.1”W x 4”D x 9.8”H |
Total Weight | 5 lbs., without batteries |
Warranty | shipping weight 7 lbs. |
For use in school, business, | |
| government facilities and churches |
Califone® International Inc.
www.califone.com
