IF PLATE IS ATTACHED DIRECTLY TO WALL: (See Fig. 2.)

Drill a suitable hole through the wall at selected sensor location. Route sensor wires through wall, making sure they are accessible from the inside. Use provided spacers to stand off plate from wall. Mount the sensor plate loosely to wall with only 1 screw so that access to hole is preserved for application of caulking. Fill hole with a suitable exterior caulking compound. Then insert second screw and tighten both screws carefully.

From inside, locate sensor wires and wires from thermostat. Cut and trim thermostat wires to an appropriate length and connect with supplied wire nuts. It may be advisable to retain thermostat wire with a clamp or wire staple ahead of wire nuts to prevent a pull on this wire from damaging the more delicate sensor connec- tions.

THERMOSTAT CONNECTION:

SENSOR

SPACERSEXTERIOR

WALL

Turn OFF all power to system. The thermostat display will go blank. Open thermostat at rear hinge to access connector blocks. Route and connect wires at thermostat carefully to minimize amount of wire between wall and thermostat. Strip ends only 1/4 in. to prevent a possible short between wires at the thermostat. Attach wires to S1 and S2 terminals. Polarity is unimportant. Route wires behind thermostat so that hinge can close properly. When wiring is completed and thermostat closed, restore power to system. Refer to Homeowners manual for procedure to display remote temperature.

WOOD SCREWS

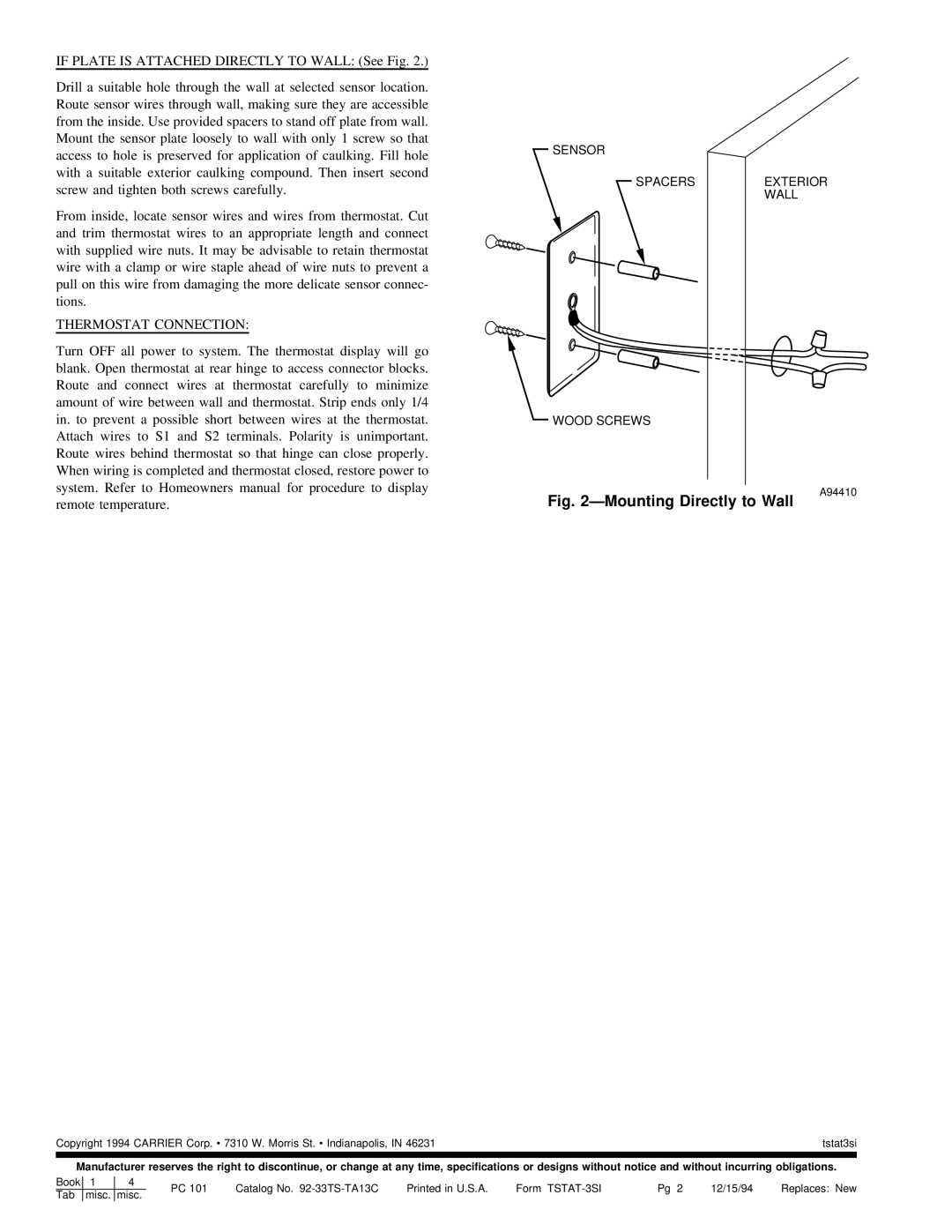

Fig. 2ÐMounting Directly to Wall

A94410

Copyright 1994 CARRIER Corp. · 7310 W. Morris St. · Indianapolis, IN 46231

tstat3si





Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book

1

4

PC 101

Catalog No. 92-33TS-TA13C

Printed in U.S.A.

Form TSTAT-3SI

Pg 2

12/15/94

Replaces: New

Tab

misc.

misc.















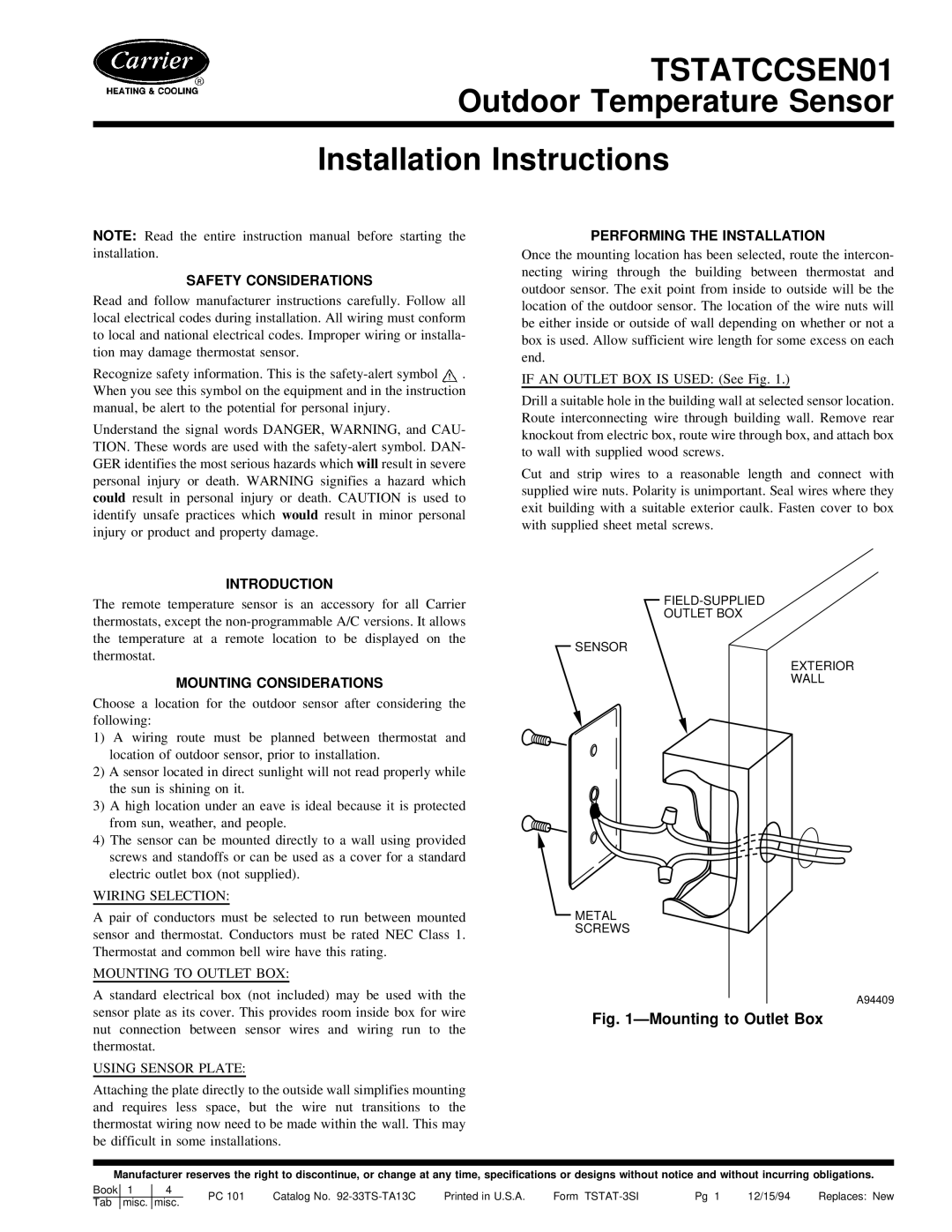

Page 1 Page 2
Page 2
Image 2
Carrier TSTATCCSEN01 installation instructions Thermostat Connection, Sensor Spacersexterior Wall Wood Screws
