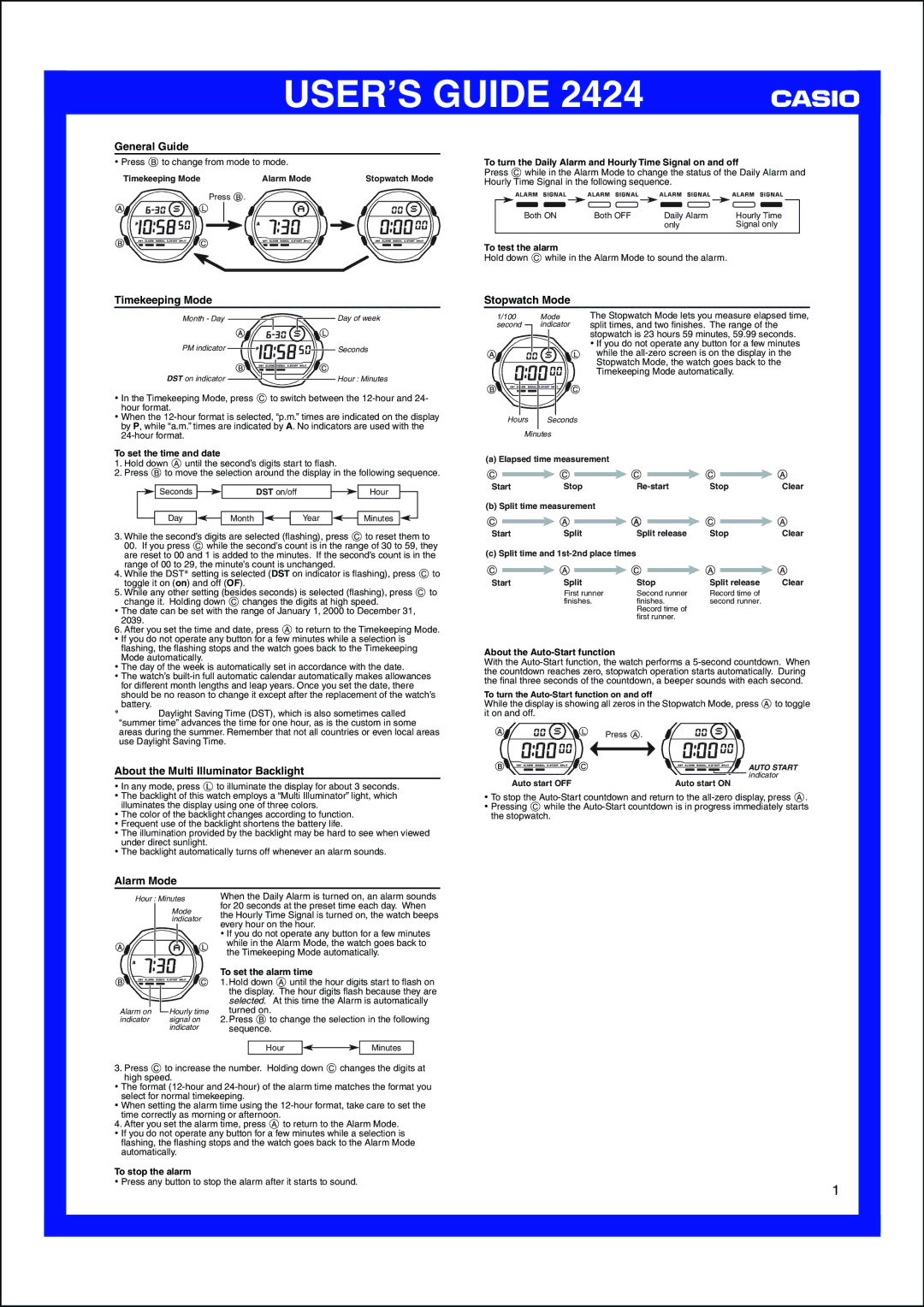

USER’S GUIDE 2424

General Guide

Press B to change from mode to mode.



To turn the Daily Alarm and Hourly Time Signal on and off

Timekeeping Mode

Alarm Mode

Stopwatch Mode

Press C while in the Alarm Mode to change the status of the Daily Alarm and

Hourly Time Signal in the following sequence.













Press .

















Both ON

Both OFF

Daily Alarm

Hourly Time











only

Signal only

To test the alarm

Hold down C while in the Alarm Mode to sound the alarm.

Timekeeping Mode

Month - Day

Day of week

PM indicator

Seconds

DST on indicator

Hour : Minutes

In the Timekeeping Mode, press C to switch between the 12-hour and 24- hour format.

When the 12-hour format is selected, “p.m.” times are indicated on the display by P, while “a.m.” times are indicated by A. No indicators are used with the 24-hour format.

To set the time and date

1.Hold down A until the second’s digits start to flash.

2.Press B to move the selection around the display in the following sequence.





Seconds







DST on/off









Hour











































Day







Month







Year







Minutes































3.While the second’s digits are selected (flashing), press C to reset them to 00. If you press C while the second’s count is in the range of 30 to 59, they are reset to 00 and 1 is added to the minutes. If the second’s count is in the range of 00 to 29, the minute’s count is unchanged.

4.While the DSTsetting is selected (DST on indicator is flashing), press C to toggle it on (on) and off (OF).

5.While any other setting (besides seconds) is selected (flashing), press C to change it. Holding down C changes the digits at high speed.

The date can be set with the range of January 1, 2000 to December 31, 2039.

6.After you set the time and date, press A to return to the Timekeeping Mode.

If you do not operate any button for a few minutes while a selection is flashing, the flashing stops and the watch goes back to the Timekeeping Mode automatically.

The day of the week is automatically set in accordance with the date.

The watch’s built-in full automatic calendar automatically makes allowances for different month lengths and leap years. Once you set the date, there should be no reason to change it except after the replacement of the watch’s battery.

Daylight Saving Time (DST), which is also sometimes called “summer time” advances the time for one hour, as is the custom in some areas during the summer. Remember that not all countries or even local areas use Daylight Saving Time.

About the Multi Illuminator Backlight

In any mode, press L to illuminate the display for about 3 seconds.

The backlight of this watch employs a “Multi Illuminator” light, which illuminates the display using one of three colors.

The color of the backlight changes according to function.

Frequent use of the backlight shortens the battery life.

The illumination provided by the backlight may be hard to see when viewed under direct sunlight.

The backlight automatically turns off whenever an alarm sounds.

Alarm Mode

Stopwatch Mode

1/100



Mode

The Stopwatch Mode lets you measure elapsed time,

second



indicator

split times, and two finishes. The range of the









stopwatch is 23 hours 59 minutes, 59.99 seconds.









If you do not operate any button for a few minutes









while the all-zero screen is on the display in the









Stopwatch Mode, the watch goes back to the









Timekeeping Mode automatically.























































Hours

Seconds









































Minutes











(a) Elapsed time measurement





































Start





Stop

Re-start

Stop

Clear

(b) Split time measurement





































Start





Split

Split release

Stop

Clear

(c) Split time and 1st-2nd place times





































Start





Split

Stop

Split release

Clear











First runner

Second runner

Record time of













finishes.

finishes.

second runner.



















Record time of























first runner.







About the Auto-Start function

With the Auto-Start function, the watch performs a 5-second countdown. When the countdown reaches zero, stopwatch operation starts automatically. During the final three seconds of the countdown, a beeper sounds with each second.

To turn the Auto-Start function on and off

While the display is showing all zeros in the Stopwatch Mode, press A to toggle it on and off.

Press .

AUTO START

indicator

Auto start OFF

Auto start ON

To stop the Auto-Start countdown and return to the all-zero display, press A.

Pressing C while the Auto-Start countdown is in progress immediately starts the stopwatch.

Hour : Minutes

Mode indicator

Alarm on Hourly time

indicator signal on indicator

When the Daily Alarm is turned on, an alarm sounds for 20 seconds at the preset time each day. When the Hourly Time Signal is turned on, the watch beeps every hour on the hour.

If you do not operate any button for a few minutes while in the Alarm Mode, the watch goes back to the Timekeeping Mode automatically.

To set the alarm time

1.Hold down A until the hour digits start to flash on the display. The hour digits flash because they are selected. At this time the Alarm is automatically turned on.

2.Press B to change the selection in the following sequence.

Hour



Minutes

3.Press C to increase the number. Holding down C changes the digits at high speed.

The format (12-hour and 24-hour) of the alarm time matches the format you select for normal timekeeping.

When setting the alarm time using the 12-hour format, take care to set the time correctly as morning or afternoon.

4.After you set the alarm time, press A to return to the Alarm Mode.

If you do not operate any button for a few minutes while a selection is flashing, the flashing stops and the watch goes back to the Alarm Mode automatically.

To stop the alarm

Press any button to stop the alarm after it starts to sound.

1
