Casio YC400 manual Project stored image on computer, Select PC image mode, 1INSTALL SOFTWARE

Capture and record information on whiteboard Board Area Capture Mode

Capture and record handwriting information on whiteboard combines with projection image on the same whiteboard

Multifunctional Camera System

1Click Presentation and select Board Area Capture Mode

2Point camera part at the whiteboard

3 Adjust capturing frame by wide and tele button on Window of Board Area Capture

4 Click shutter button on dialog box to capture image

Before correction Image preview dialog box

Image projection area

*For more information, see Software User's Guide

Recording area

[Board Area Capture]

Recording area

When

case

closed

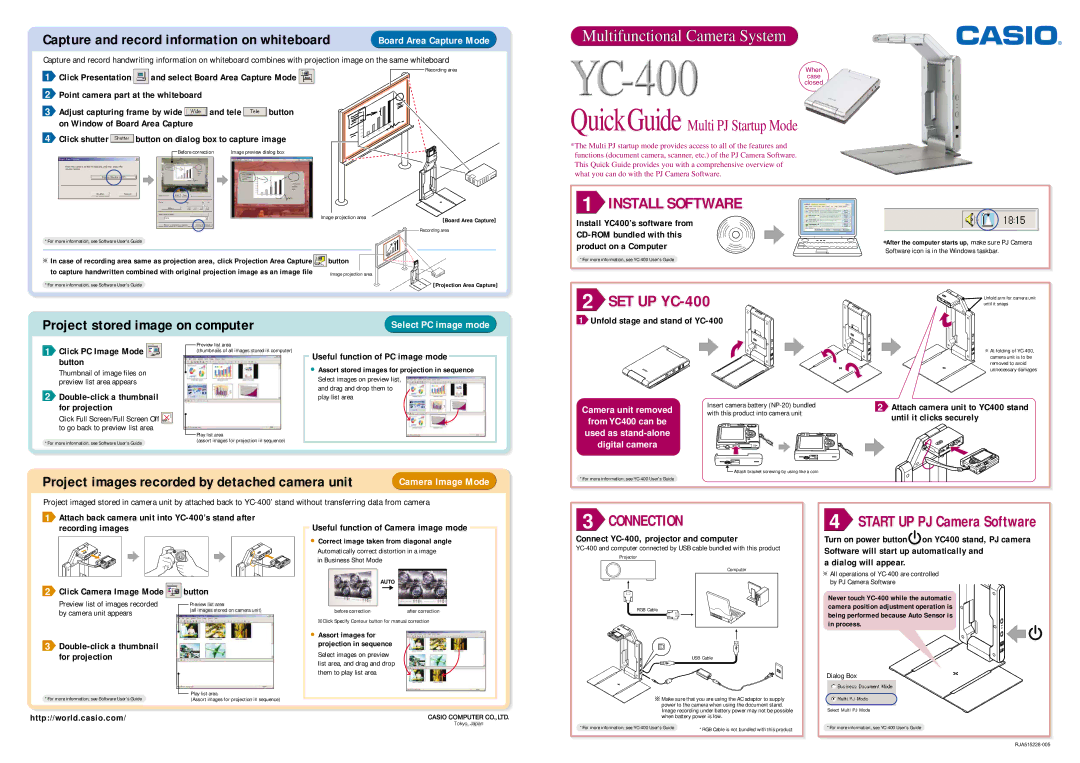

QuickGuide Multi PJ Startup Mode

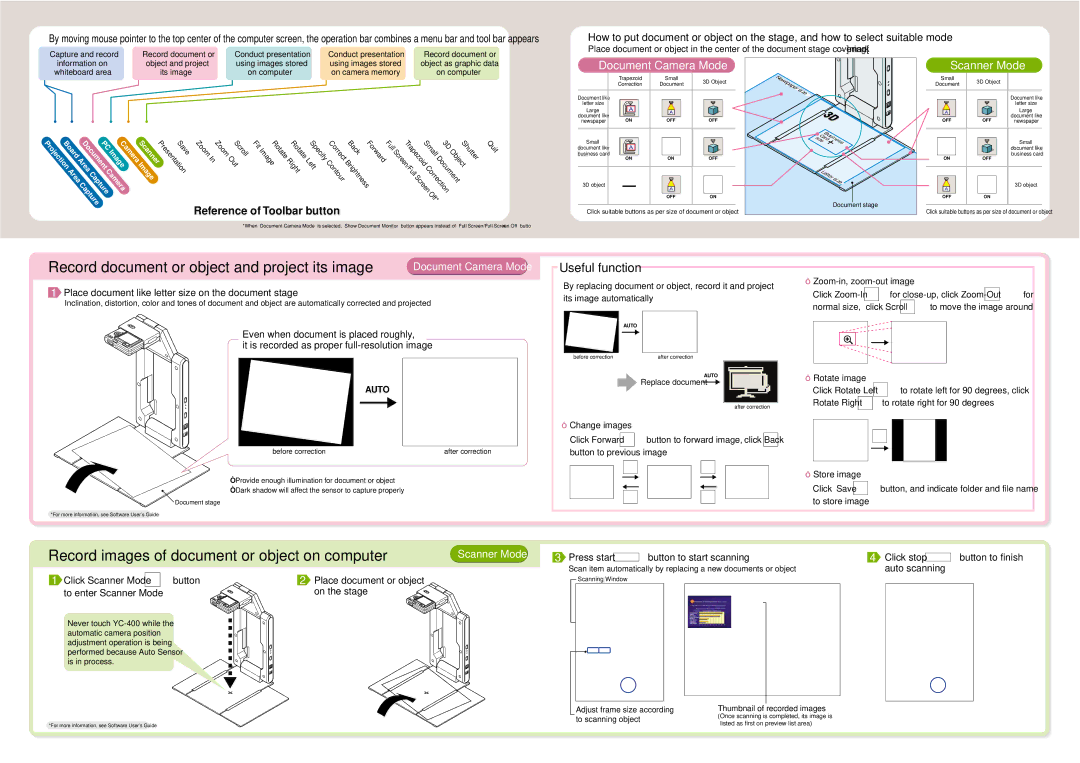

*The Multi PJ startup mode provides access to all of the features and functions (document camera, scanner, etc.) of the PJ Camera Software. This Quick Guide provides you with a comprehensive overview of what you can do with the PJ Camera Software.

1 INSTALL SOFTWARE

Install YC400’s software from

CD-ROM bundled with this

product on a Computer	*After the computer starts up, make sure PJ Camera
	Software icon is in the Windows taskbar.

※In case of recording area same as projection area, click Projection Area Capture button

to capture handwritten combined with original projection image as an image file	Image projection area
*For more information, see Software User's Guide

[Projection Area Capture]

*For more information, see YC-400 User's Guide

2 SET UP YC-400

Unfold arm for camera unit until it snaps

Project stored image on computer

Select PC image mode

1Unfold stage and stand of YC-400

1Click PC Image Mode

button

Thumbnail of image files on preview list area appears

2 Double-click a thumbnail

Preview list area

(thumbnails of all images stored in computer)

Useful function of PC image mode

●Assort stored images for projection in sequence

Select images on preview list, and drag and drop them to play list area

※At folding of YC-400, camera unit is to be removed to avoid unnecessary damages

for projection

Click Full Screen/Full Screen Off to go back to preview list area

*For more information, see Software User's Guide

Play list area

(assort images for projection in sequence)

Camera unit removed

from YC400 can be used as stand-alone digital camera

Insert camera battery (NP-20) bundled with this product into camera unit

Attach bracket screwing by using like a coin

2Attach camera unit to YC400 stand until it clicks securely

Project images recorded by detached camera unit Camera Image Mode

Project imaged stored in camera unit by attached back to YC-400’ stand without transferring data from camera

*For more information, see YC-400 User's Guide

1	Attach back camera unit into YC-400’s stand after
	recording images
	1
	2
2	Click Camera Image Mode	button

Preview list of images recorded	Preview list area
by camera unit appears	(all images stored on camera unit)

3Double-click a thumbnail for projection

*For more information, see Software User's Guide	Play list area
	(Assort images for projection in sequence)

Useful function of Camera image mode

●Correct image taken from diagonal angle

Automatically correct distortion in a image in Business Shot Mode

AUTO

before correction after correction

※Click Specify Contour button for manual correction

●Assort images for projection in sequence

Select images on preview list area, and drag and drop them to play list area

3 CONNECTION

Connect YC-400, projector and computer

YC-400 and computer connected by USB cable bundled with this product

Projector

Computer

RGB Cable

USB Cable

※ Make sure that you are using the AC adaptor to supply

power to the camera when using the document stand.

Image recording under battery power may not be possible

4 START UP PJ Camera Software

Turn on power buttonon YC400 stand, PJ camera Software will start up automatically and

a dialog will appear.

※All operations of YC-400 are controlled by PJ Camera Software

Never touch YC-400 while the automatic camera position adjustment operation is being performed because Auto Sensor is in process.

Dialog Box

Select Multi PJ Mode

http://world.casio.com/

when battery power is low.

*For more information, see YC-400 User's Guide *RGB Cable is not bundled with this product

*For more information, see YC-400 User's Guide

RJA515228-005
