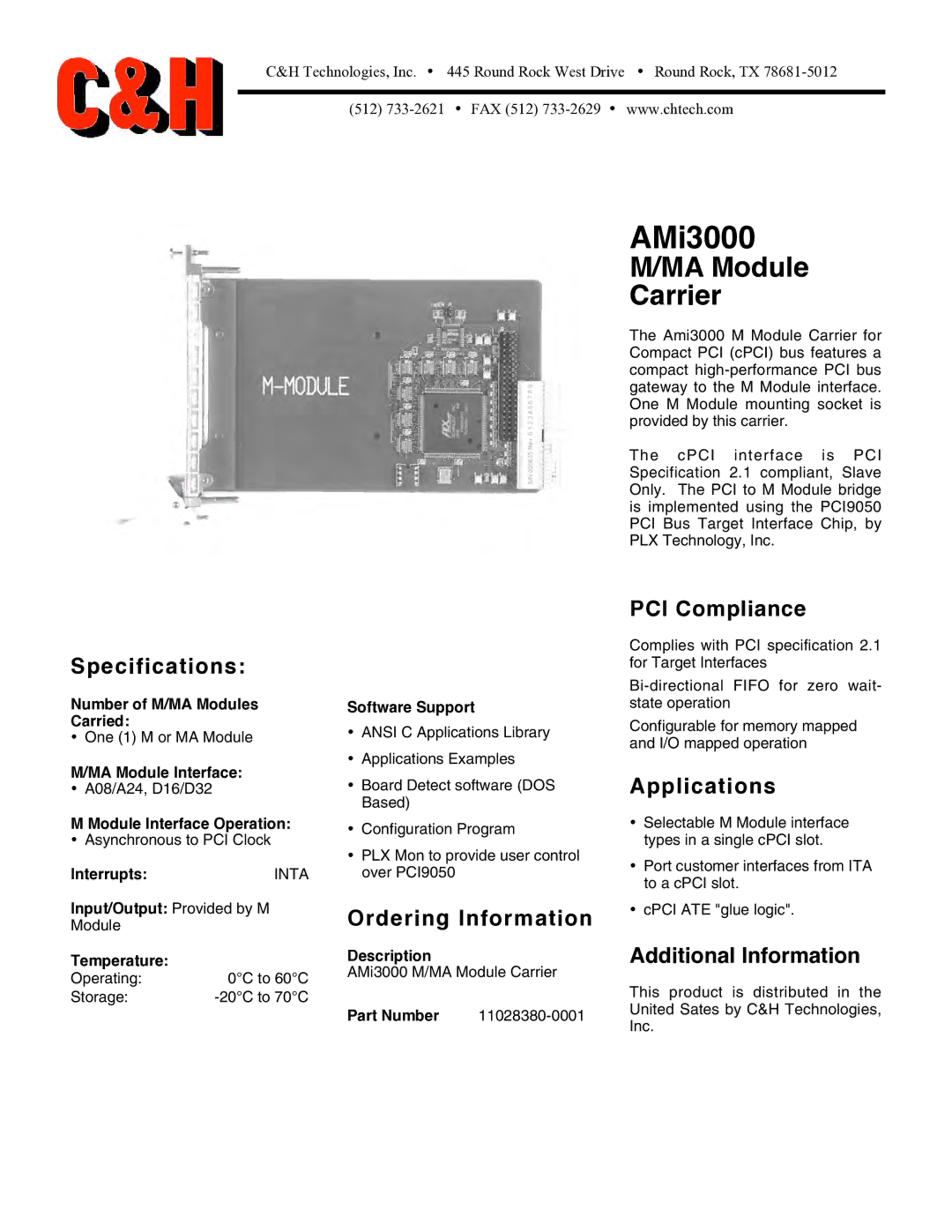

CH Tech AMi3000 specifications M/MA Module Carrier, Specifications, Ordering Information

C&H Technologies, Inc. • 445 Round Rock West Drive • Round Rock, TX 78681-5012

(512) 733-2621 • FAX (512) 733-2629 • www.chtech.com

AMi3000

M/MA Module

Carrier

The Ami3000 M Module Carrier for Compact PCI (cPCI) bus features a compact high-performance PCI bus gateway to the M Module interface. One M Module mounting socket is provided by this carrier.

The cPCI interface is PCI Specification 2.1 compliant, Slave Only. The PCI to M Module bridge is implemented using the PCI9050 PCI Bus Target Interface Chip, by PLX Technology, Inc.

Specifications:

Number of M/MA Modules Carried:

•One (1) M or MA Module

M/MA Module Interface:

•A08/A24, D16/D32

M Module Interface Operation:

•Asynchronous to PCI Clock

Interrupts:INTA

Input/Output: Provided by M Module

Temperature:
Operating:	0°C to 60°C
Storage:	-20°C to 70°C

Software Support

•ANSI C Applications Library

•Applications Examples

•Board Detect software (DOS Based)

•Configuration Program

•PLX Mon to provide user control over PCI9050

Ordering Information

Description

AMi3000 M/MA Module Carrier

Part Number 11028380-0001

PCI Compliance

Complies with PCI specification 2.1 for Target Interfaces

Bi-directional FIFO for zero wait- state operation

Configurable for memory mapped and I/O mapped operation

Applications

•Selectable M Module interface types in a single cPCI slot.

•Port customer interfaces from ITA to a cPCI slot.

•cPCI ATE "glue logic".

Additional Information

This product is distributed in the United Sates by C&H Technologies, Inc.
