C&H Technologies, Inc.

445 Round Rock West Drive

Round Rock, TX 78681-5012

(512) 733-2621

FAX (512) 733-2629

www.chtech.com

Specifications:

Outputs:

Two true (A & B) and two complement (A & B) outputs

Frequency:

20MHz max.

Input:

TTL

Output Amplitude:



RLOAD = 50

+0.21V to +15V

RLOAD =

+0.42V to +30V

Output Current:



Source

300mA

Sink

100mA

Output Impedance:

50

Programming Resolution:

10V range

2.50mV

30V range

7.50mV

Accuracy:

±0.75% ±75mV

Rise/Fall Time:



30V, RLOAD =

30ns

Inputs/Outputs:

Pulse Input

True Output A

True Output B

Complement Output A

Complement Output B

External Power (+36V)

External Power Interlock

Pulse Interlock

External Power:

36V 2A supply required

Front Panel Connectors:

Pulse Input/Outputs SMA Ext. Pwr. & Interlocks 9-pin DSUB

Temperature:



Operating:

0°C to 50°C

Storage:

-40°C to 70°C

Power (typical):



+5V

150 mA

+12V

300 mA

-12V

100 mA

Ext. +36V

1.0 A

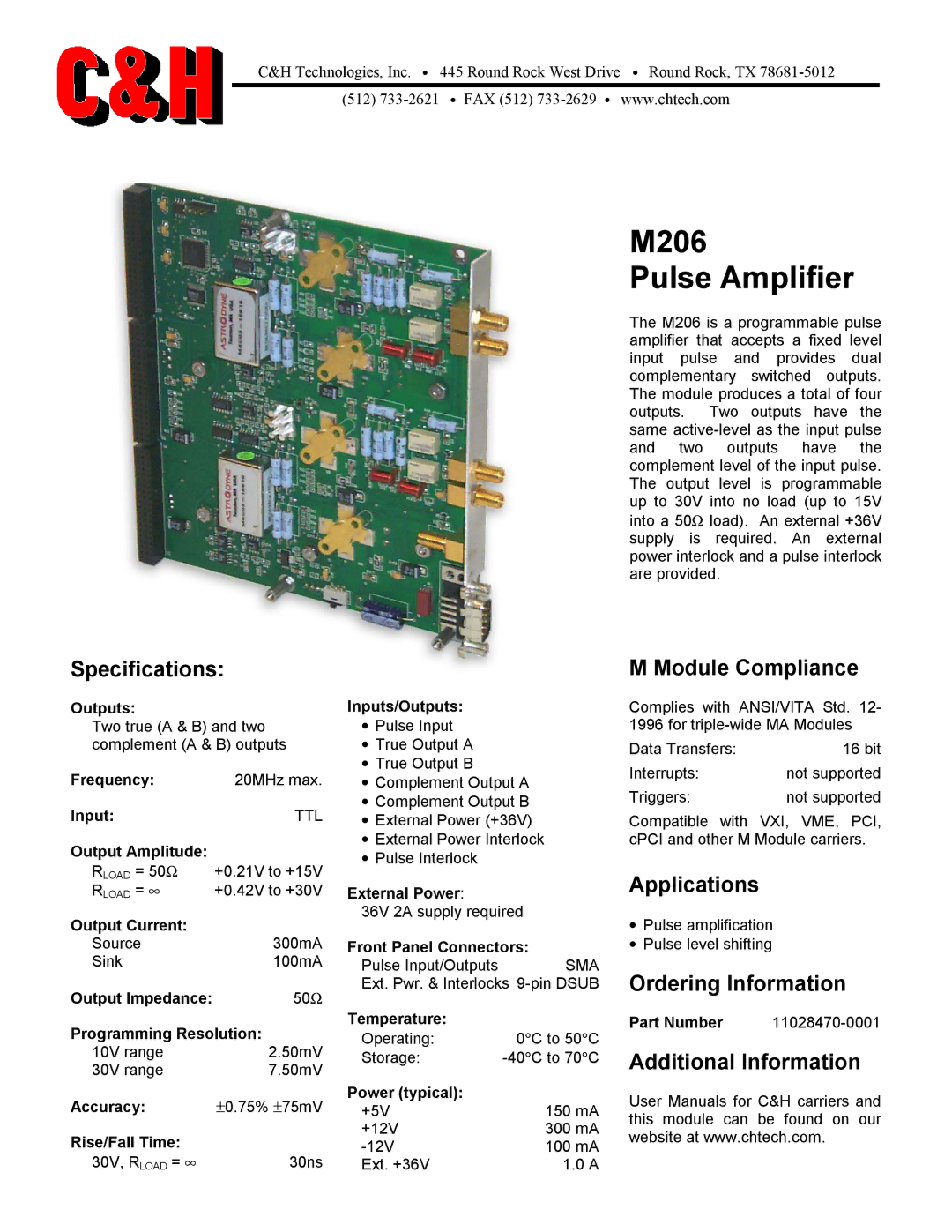

M206

Pulse Amplifier

The M206 is a programmable pulse amplifier that accepts a fixed level input pulse and provides dual complementary switched outputs. The module produces a total of four outputs. Two outputs have the same active-level as the input pulse and two outputs have the complement level of the input pulse. The output level is programmable up to 30V into no load (up to 15V

into a 50load). An external +36V supply is required. An external power interlock and a pulse interlock are provided.

M Module Compliance

Complies with ANSI/VITA Std. 12- 1996 for triple-wide MA Modules

Data Transfers:

16 bit

Interrupts:

not supported

Triggers:

not supported

Compatible with VXI, VME, PCI, cPCI and other M Module carriers.

Applications

Pulse amplification

Pulse level shifting

Ordering Information

Part Number

11028470-0001

Additional Information

User Manuals for C&H carriers and this module can be found on our website at www.chtech.com.

Page 1
