Specifications:

Maximum Input Voltage:

Terminal to Terminal:

250

Vdc or acrms



Terminal to Chassis:



250

Vdc or acrms



Maximum Switchable Voltage:



100

Vdc, 200 Vacrms



Maximum Switchable Current:



(DC or ACrms):

5A

Per Contact:

Per Module:

50A

Maximum Switchable Power:

Per Channel:

150W, 1250VA

Per Module:

1500W, 12500VA

Closed Channel Resistance:

Initially 0.1 (6Vdc @1A)

Insulation Resistance (between any two points):

>108

Relay Life (operations):



No Load

1 x 107

250

Vac, 5A, Resistive

1 x 105

Relay Operative Time:



4 to

7 msec



Relay Release Time:

1 to 2 msec

Power Up/Down States:

Normally open contact is open.

Power: +5V @ 1.0A typical +12V @ 1.5A typical

Ordering Information:

Description

Part Number

VX412C

11026205-0001

Locking Conn

See Accessories

VX412C

SPDT Switching

Module

The VX412C is a C size, Register based switching card that provides

32channels of 5A, Form-C switching. User connection to the module is through two (2) DIN 41612 Type F48M connectors. Normally closed, normally open and common terminals are provided for each of the non-latching relays. MODID and Board Select indicators are included. Module is equipped with BIT capability and shielding.

VXIbus Compliance

Complies with ANSI/IEEE Std. 1014- 1987 and VXIbus Rev 1.4

A16:D16 DTB Slave

Register based

No Interrupts

IACKIN tied to IACKOUT

BRX tied to BGX

Form Factor: Size C

Built-in test via register feedback

Applications

Power Switching

Control

LF Signal Switching

Page 1
Image 1

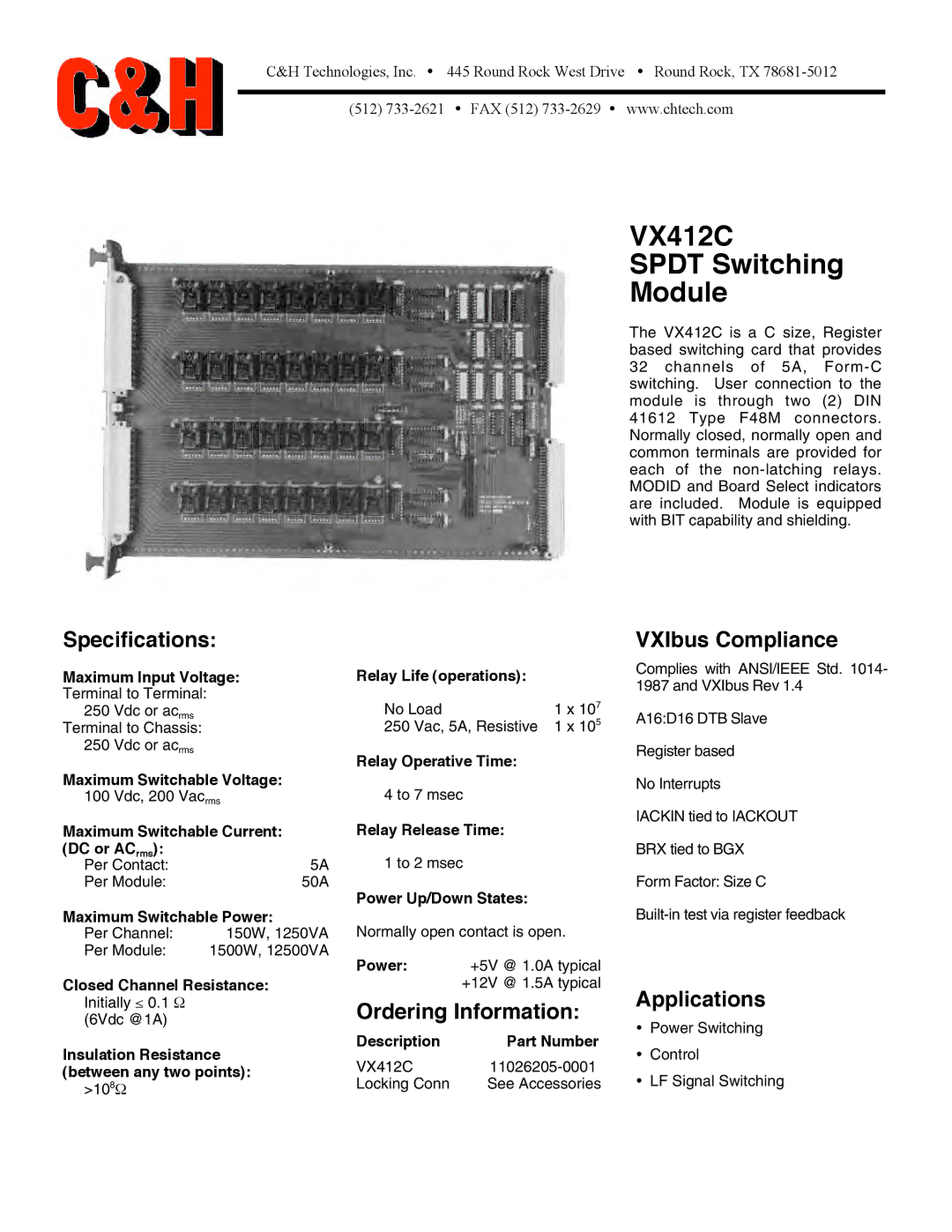

CH Tech specifications VX412C Spdt Switching Module, Specifications, Ordering Information, VXIbus Compliance
