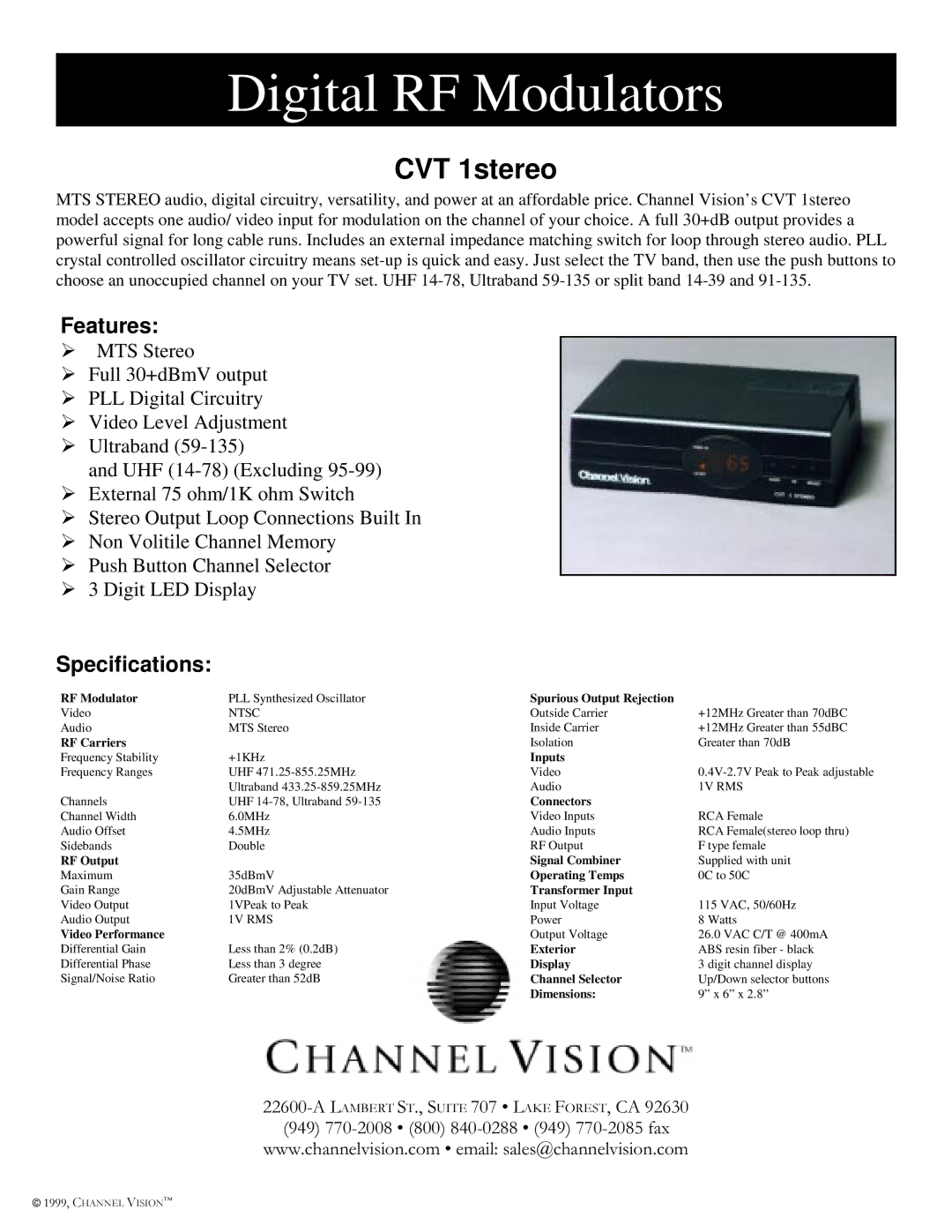

Digital RF Modulators

CVT 1stereo

MTS STEREO audio, digital circuitry, versatility, and power at an affordable price. Channel Vision’s CVT 1stereo model accepts one audio/ video input for modulation on the channel of your choice. A full 30+dB output provides a powerful signal for long cable runs. Includes an external impedance matching switch for loop through stereo audio. PLL crystal controlled oscillator circuitry means set-up is quick and easy. Just select the TV band, then use the push buttons to choose an unoccupied channel on your TV set. UHF 14-78, Ultraband 59-135 or split band 14-39 and 91-135.

Features:

¾￿MTS Stereo

¾Full 30+dBmV output

¾PLL Digital Circuitry

¾Video Level Adjustment

¾Ultraband (59-135)

and UHF (14-78) (Excluding 95-99)

¾External 75 ohm/1K ohm Switch

¾Stereo Output Loop Connections Built In

¾Non Volitile Channel Memory

¾Push Button Channel Selector

¾3 Digit LED Display

Specifications:

RF Modulator	PLL Synthesized Oscillator
Video	NTSC
Audio	MTS Stereo
RF Carriers
Frequency Stability	+1KHz
Frequency Ranges	UHF 471.25-855.25MHz
	Ultraband 433.25-859.25MHz
Channels	UHF 14-78, Ultraband 59-135
Channel Width	6.0MHz
Audio Offset	4.5MHz
Sidebands	Double
RF Output
Maximum	35dBmV
Gain Range	20dBmV Adjustable Attenuator
Video Output	1VPeak to Peak
Audio Output	1V RMS
Video Performance
Differential Gain	Less than 2% (0.2dB)
Differential Phase	Less than 3 degree
Signal/Noise Ratio	Greater than 52dB

Spurious Output Rejection
Outside Carrier	+12MHz Greater than 70dBC
Inside Carrier	+12MHz Greater than 55dBC
Isolation	Greater than 70dB
Inputs
Video	0.4V-2.7V Peak to Peak adjustable
Audio	1V RMS
Connectors
Video Inputs	RCA Female
Audio Inputs	RCA Female(stereo loop thru)
RF Output	F type female
Signal Combiner	Supplied with unit
Operating Temps	0C to 50C
Transformer Input
Input Voltage	115 VAC, 50/60Hz
Power	8 Watts
Output Voltage	26.0 VAC C/T @ 400mA
Exterior	ABS resin fiber - black
Display	3 digit channel display
Channel Selector	Up/Down selector buttons
Dimensions:	9” x 6” x 2.8”
