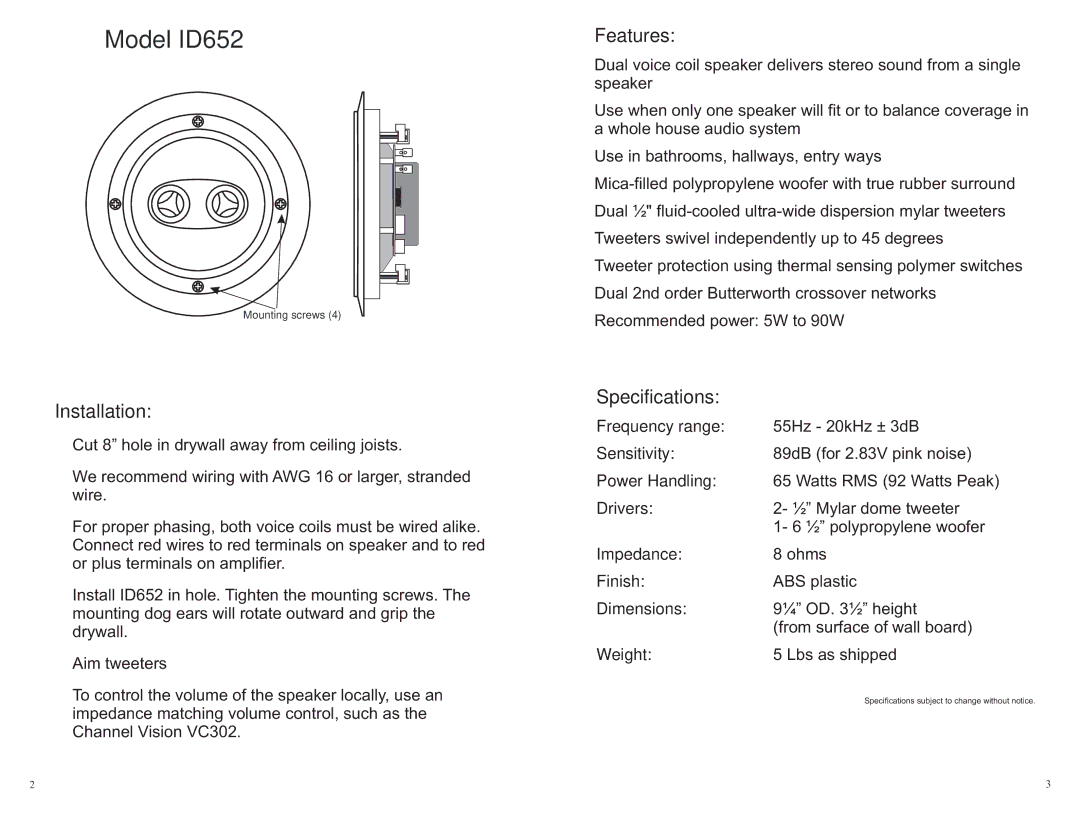

Model ID652

Mounting screws (4)

Installation:

￿Cut 8” hole in drywall away from ceiling joists.

￿We recommend wiring with AWG 16 or larger, stranded wire.

￿For proper phasing, both voice coils must be wired alike. Connect red wires to red terminals on speaker and to red or plus terminals on amplifier.

￿Install ID652 in hole. Tighten the mounting screws. The mounting dog ears will rotate outward and grip the drywall.

￿Aim tweeters

￿To control the volume of the speaker locally, use an impedance matching volume control, such as the Channel Vision VC302.

Features:

Dual voice coil speaker delivers stereo sound from a single speaker

Use when only one speaker will fit or to balance coverage in a whole house audio system

Use in bathrooms, hallways, entry ways

Mica-filled polypropylene woofer with true rubber surround

Dual ½" fluid-cooled ultra-wide dispersion mylar tweeters

Tweeters swivel independently up to 45 degrees

Tweeter protection using thermal sensing polymer switches

Dual 2nd order Butterworth crossover networks

Recommended power: 5W to 90W

Specifications:

Frequency range:

55Hz - 20kHz ± 3dB

Sensitivity:

89dB (for 2.83V pink noise)

Power Handling:

65 Watts RMS (92 Watts Peak)

Drivers:

2- ½” Mylar dome tweeter



1- 6 ½” polypropylene woofer

Impedance:

8 ohms

Finish:

ABS plastic

Dimensions:

9¼” OD. 3½” height



(from surface of wall board)

Weight:

5 Lbs as shipped



Specifications subject to change without notice.
