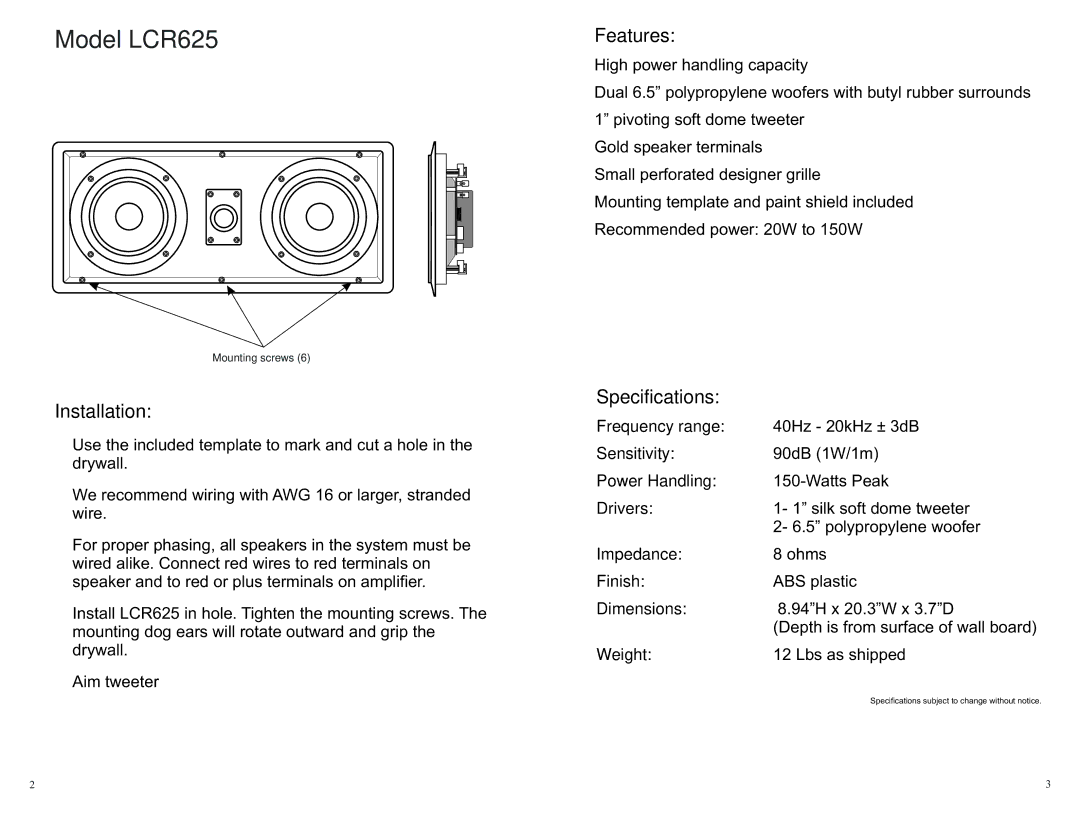

Model LCR625

Mounting screws (6)

Installation:

￿Use the included template to mark and cut a hole in the drywall.

￿We recommend wiring with AWG 16 or larger, stranded wire.

￿For proper phasing, all speakers in the system must be wired alike. Connect red wires to red terminals on speaker and to red or plus terminals on amplifier.

￿Install LCR625 in hole. Tighten the mounting screws. The mounting dog ears will rotate outward and grip the drywall.

￿Aim tweeter

Features:

High power handling capacity

Dual 6.5” polypropylene woofers with butyl rubber surrounds

1” pivoting soft dome tweeter

Gold speaker terminals

Small perforated designer grille

Mounting template and paint shield included

Recommended power: 20W to 150W

Specifications:

Frequency range:

40Hz - 20kHz ± 3dB

Sensitivity:

90dB (1W/1m)

Power Handling:

150-Watts Peak

Drivers:

1- 1” silk soft dome tweeter



2- 6.5” polypropylene woofer

Impedance:

8 ohms

Finish:

ABS plastic

Dimensions:

8.94”H x 20.3”W x 3.7”D



(Depth is from surface of wall board)

Weight:

12 Lbs as shipped



Specifications subject to change without notice.
