Char-Broil 463247311 NOTE: Parts and wires omitted for clarity of illustration

5
6
16
Upper back panel
1/4-20x1½”
screw 7mm lock
washer
7mm flat
washer
On back of grill, place upper back panel between side panels and above lower back panel. Secure upper back panel, in
lower holes, using one 1/4-20x1½” screw,7mm lock washer, and 7mm flat washer on each side.

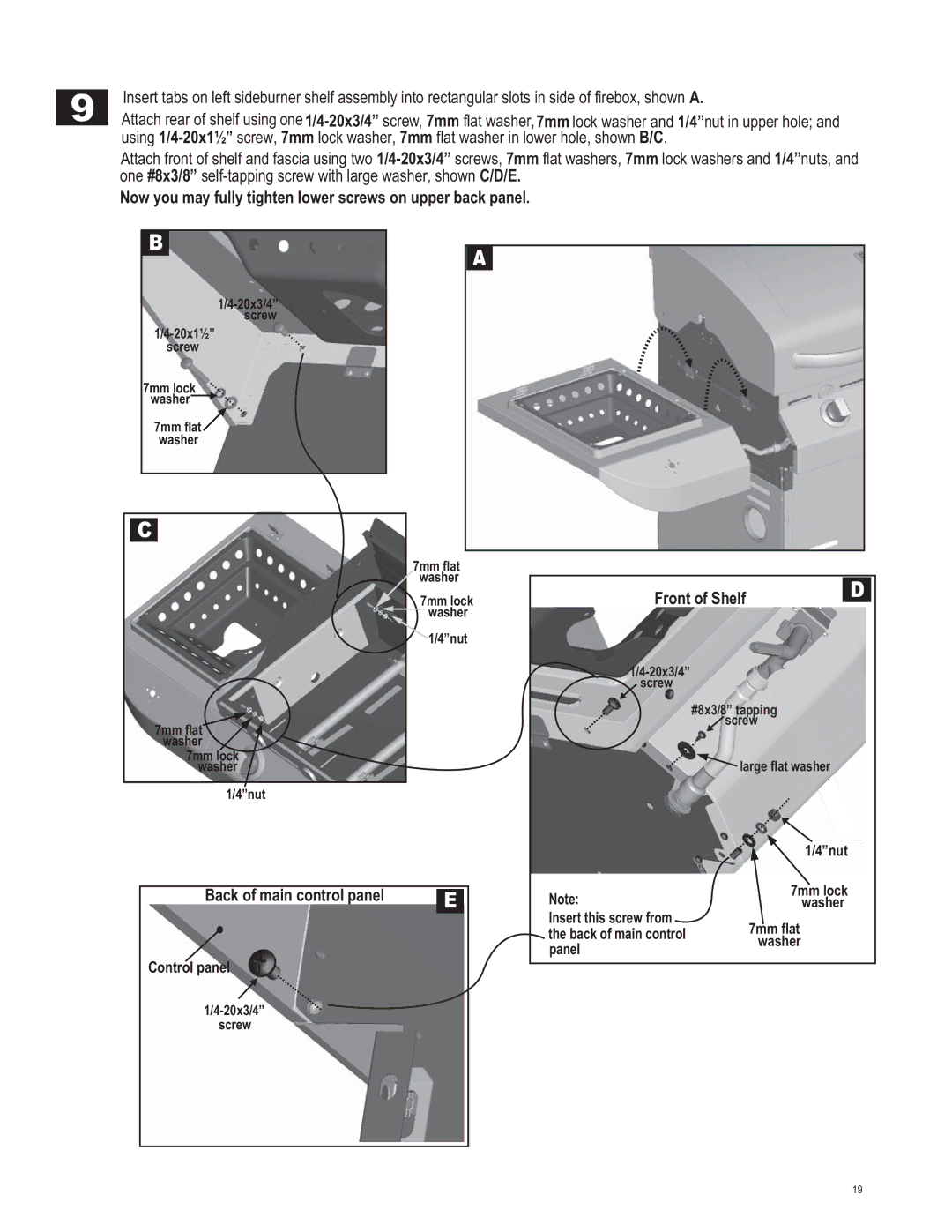

Do not fully tighten screws until side shelf installation is complete in later steps.
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel with
the nut and cap.
Lower back panel
Nut
Cap
Right side panel
Electronic ignition
module
NOTE: Parts and wires omitted for
clarity of illustration
