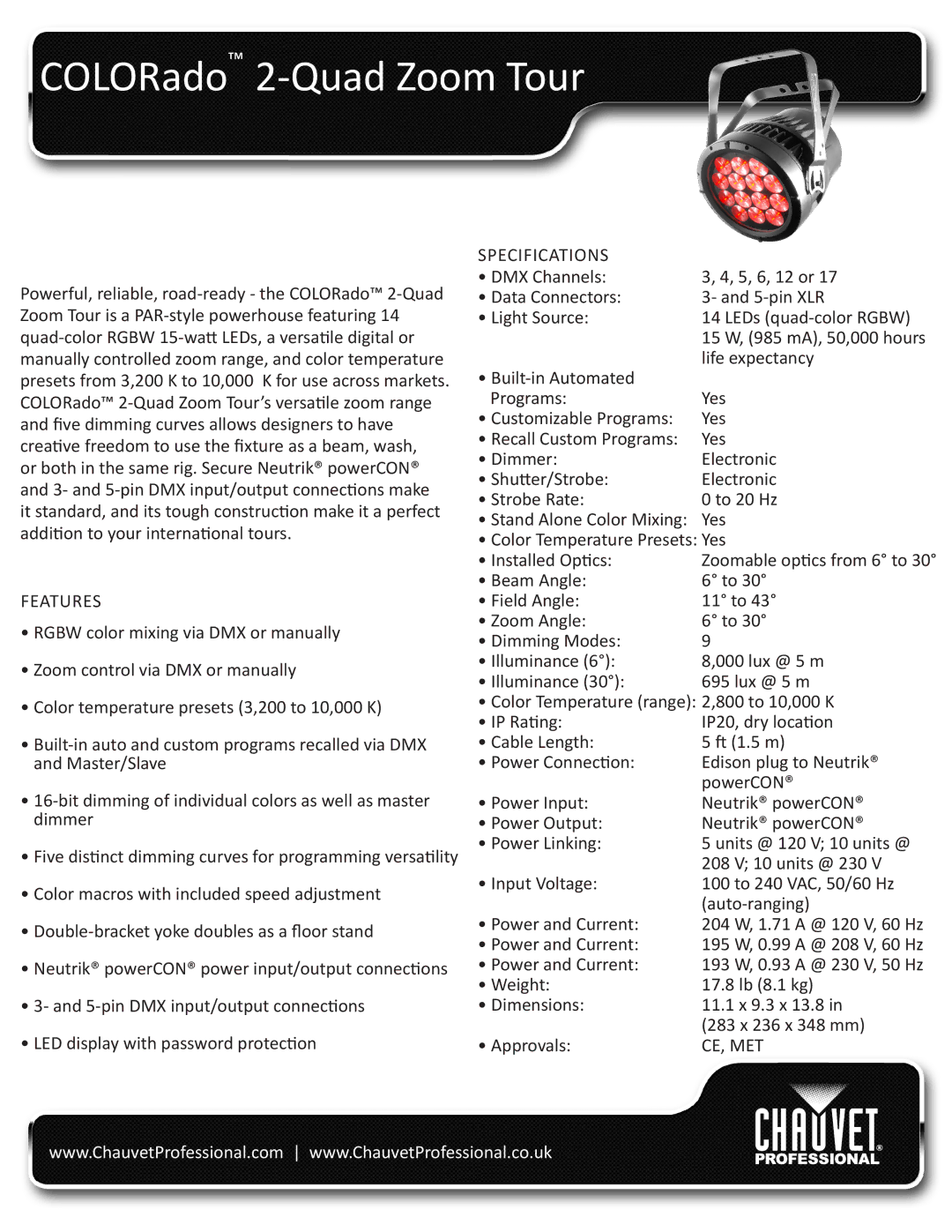

COLORado™ 2-Quad Zoom Tour

Powerful, reliable, road-ready - the COLORado™ 2-Quad Zoom Tour is a PAR-style powerhouse featuring 14 quad-color RGBW 15-watt LEDs, a versatile digital or manually controlled zoom range, and color temperature presets from 3,200 K to 10,000 K for use across markets. COLORado™ 2-Quad Zoom Tour’s versatile zoom range and five dimming curves allows designers to have creative freedom to use the fixture as a beam, wash,

or both in the same rig. Secure Neutrik® powerCON® and 3- and 5-pin DMX input/output connections make it standard, and its tough construction make it a perfect addition to your international tours.

FEATURES

•RGBW color mixing via DMX or manually

•Zoom control via DMX or manually

•Color temperature presets (3,200 to 10,000 K)

•Built-in auto and custom programs recalled via DMX and Master/Slave

•16-bit dimming of individual colors as well as master dimmer

•Five distinct dimming curves for programming versatility

•Color macros with included speed adjustment

•Double-bracket yoke doubles as a floor stand

•Neutrik® powerCON® power input/output connections

•3- and 5-pin DMX input/output connections

•LED display with password protection

SPECIFICATIONS
• DMX Channels:	3, 4, 5, 6, 12 or 17
• Data Connectors:	3- and 5-pin XLR
• Light Source:	14 LEDs (quad-color RGBW)
	15 W, (985 mA), 50,000 hours
• Built-in Automated	life expectancy
Programs:	Yes

•Customizable Programs: Yes

•Recall Custom Programs: Yes

• Dimmer:	Electronic
• Shutter/Strobe:	Electronic
• Strobe Rate:	0 to 20 Hz

•Stand Alone Color Mixing: Yes

•Color Temperature Presets: Yes

• Installed Optics:	Zoomable optics from 6° to 30°
• Beam Angle:	6° to 30°
• Field Angle:	11° to 43°
• Zoom Angle:	6° to 30°
• Dimming Modes:	9
• Illuminance (6°):	8,000 lux @ 5 m
• Illuminance (30°):	695 lux @ 5 m
• Color Temperature (range): 2,800 to 10,000 K
• IP Rating:	IP20, dry location
• Cable Length:	5 ft (1.5 m)
• Power Connection:	Edison plug to Neutrik®
	powerCON®
• Power Input:	Neutrik® powerCON®
• Power Output:	Neutrik® powerCON®
• Power Linking:	5 units @ 120 V; 10 units @
	208 V; 10 units @ 230 V
• Input Voltage:	100 to 240 VAC, 50/60 Hz
	(auto-ranging)
• Power and Current:	204 W, 1.71 A @ 120 V, 60 Hz
• Power and Current:	195 W, 0.99 A @ 208 V, 60 Hz
• Power and Current:	193 W, 0.93 A @ 230 V, 50 Hz
• Weight:	17.8 lb (8.1 kg)
• Dimensions:	11.1 x 9.3 x 13.8 in
	(283 x 236 x 348 mm)
• Approvals:	CE, MET
