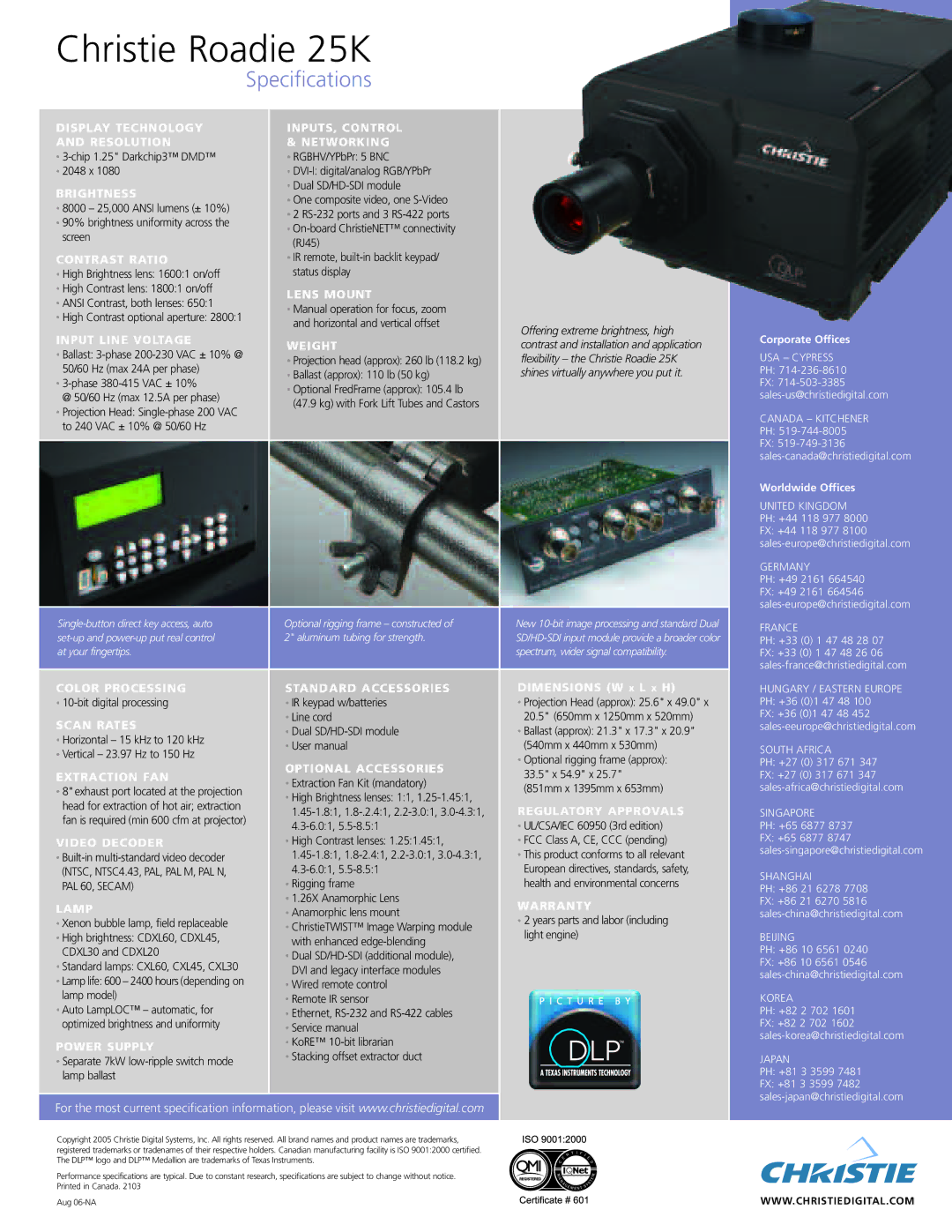

Christie Roadie 25K





Specifications



DISPLAY TECHNOLOGY

INPUTS, CONTROL



AND RESOLUTION

& NETWORKING



3-chip 1.25" Darkchip3™ DMD™

RGBHV/YPbPr: 5 BNC



2048 x 1080

DVI-I: digital/analog RGB/YPbPr



BRIGHTNESS

Dual SD/HD-SDI module



One composite video, one S-Video



8000 – 25,000 ANSI lumens (± 10%)



2 RS-232 ports and 3 RS-422 ports



90% brightness uniformity across the



On-board ChristieNET™ connectivity



screen



(RJ45)







CONTRAST RATIO

IR remote, built-in backlit keypad/



High Brightness lens: 1600:1 on/off

status display



High Contrast lens: 1800:1 on/off

LENS MOUNT



ANSI Contrast, both lenses: 650:1



Manual operation for focus, zoom



High Contrast optional aperture: 2800:1



and horizontal and vertical offset





Offering extreme brightness, high

INPUT LINE VOLTAGE



WEIGHT

contrast and installation and application

Ballast: 3-phase 200-230 VAC ± 10% @

Projection head (approx): 260 lb (118.2 kg)

flexibility – the Christie Roadie 25K

50/60 Hz (max 24A per phase)

Ballast (approx): 110 lb (50 kg)

shines virtually anywhere you put it.

3-phase 380-415 VAC ± 10%

Optional FredFrame (approx): 105.4 lb



@ 50/60 Hz (max 12.5A per phase)



(47.9 kg) with Fork Lift Tubes and Castors



Projection Head: Single-phase 200 VAC







to 240 VAC ± 10% @ 50/60 Hz

















Single-button direct key access, auto



Optional rigging frame – constructed of

New 10-bit image processing and standard Dual

set-up and power-up put real control



2" aluminum tubing for strength.

SD/HD-SDI input module provide a broader color

at your fingertips.







spectrum, wider signal compatibility.













COLOR PROCESSING



STANDARD ACCESSORIES

DIMENSIONS (W X L X H)

10-bit digital processing



IR keypad w/batteries

Projection Head (approx): 25.6" x 49.0" x

SCAN RATES



Line cord

20.5" (650mm x 1250mm x 520mm)



Dual SD/HD-SDI module

Ballast (approx): 21.3" x 17.3" x 20.9"

Horizontal – 15 kHz to 120 kHz





User manual

(540mm x 440mm x 530mm)

Vertical – 23.97 Hz to 150 Hz









Optional rigging frame (approx):





OPTIONAL ACCESSORIES

EXTRACTION FAN



33.5" x 54.9" x 25.7"



Extraction Fan Kit (mandatory)

8"exhaust port located at the projection



(851mm x 1395mm x 653mm)



High Brightness lenses: 1:1, 1.25-1.45:1,

head for extraction of hot air; extraction







1.45-1.8:1, 1.8-.2.4:1, 2.2-3.0:1, 3.0-4.3:1,



REGULATORY APPROVALS

fan is required (min 600 cfm at projector)



4.3-6.0:1, 5.5-8.5:1



UL/CSA/IEC 60950 (3rd edition)





VIDEO DECODER



High Contrast lenses: 1.25:1.45:1,

FCC Class A, CE, CCC (pending)

Built-in multi-standard video decoder

1.45-1.8:1, 1.8-2.4:1, 2.2-3.0:1, 3.0-4.3:1,



This product conforms to all relevant

(NTSC, NTSC4.43, PAL, PAL M, PAL N,

4.3-6.0:1, 5.5-8.5:1



European directives, standards, safety,

PAL 60, SECAM)



Rigging frame

health and environmental concerns

LAMP



1.26X Anamorphic Lens

WARRANTY



Anamorphic lens mount

Xenon bubble lamp, field replaceable



2 years parts and labor (including



ChristieTWIST™ Image Warping module

High brightness: CDXL60, CDXL45,



light engine)



with enhanced edge-blending

CDXL30 and CDXL20









Dual SD/HD-SDI (additional module),





Standard lamps: CXL60, CXL45, CXL30









DVI and legacy interface modules





Lamp life: 600 – 2400 hours (depending on









Wired remote control





lamp model)









Remote IR sensor





Auto LampLOC™ – automatic, for









Ethernet, RS-232 and RS-422 cables





optimized brightness and uniformity









Service manual













POWER SUPPLY



KoRE™ 10-bit librarian







Stacking offset extractor duct





Separate 7kW low-ripple switch mode

















lamp ballast











For the most current specification information, please visit www.christiedigital.com

Copyright 2005 Christie Digital Systems, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001:2000 certified. The DLP™ logo and DLP™ Medallion are trademarks of Texas Instruments.

Performance specifications are typical. Due to constant research, specifications are subject to change without notice.

Printed in Canada. 2103

Aug 06-NA

Corporate Offices

USA – CYPRESS PH: 714-236-8610 FX: 714-503-3385

sales-us@christiedigital.com

CANADA – KITCHENER PH: 519-744-8005 FX: 519-749-3136

sales-canada@christiedigital.com

Worldwide Offices

UNITED KINGDOM PH: +44 118 977 8000 FX: +44 118 977 8100

sales-europe@christiedigital.com

GERMANY

PH: +49 2161 664540

FX: +49 2161 664546 sales-europe@christiedigital.com

FRANCE

PH: +33 (0) 1 47 48 28 07

FX: +33 (0) 1 47 48 26 06 sales-france@christiedigital.com

HUNGARY / EASTERN EUROPE PH: +36 (0)1 47 48 100

FX: +36 (0)1 47 48 452 sales-eeurope@christiedigital.com

SOUTH AFRICA

PH: +27 (0) 317 671 347

FX: +27 (0) 317 671 347 sales-africa@christiedigital.com

SINGAPORE

PH: +65 6877 8737

FX: +65 6877 8747 sales-singapore@christiedigital.com

SHANGHAI

PH: +86 21 6278 7708

FX: +86 21 6270 5816 sales-china@christiedigital.com

BEIJING

PH: +86 10 6561 0240

FX: +86 10 6561 0546 sales-china@christiedigital.com

KOREA

PH: +82 2 702 1601

FX: +82 2 702 1602 sales-korea@christiedigital.com

JAPAN

PH: +81 3 3599 7481

FX: +81 3 3599 7482 sales-japan@christiedigital.com

WWW.CHRISTIEDIGITAL.COM

Page 2

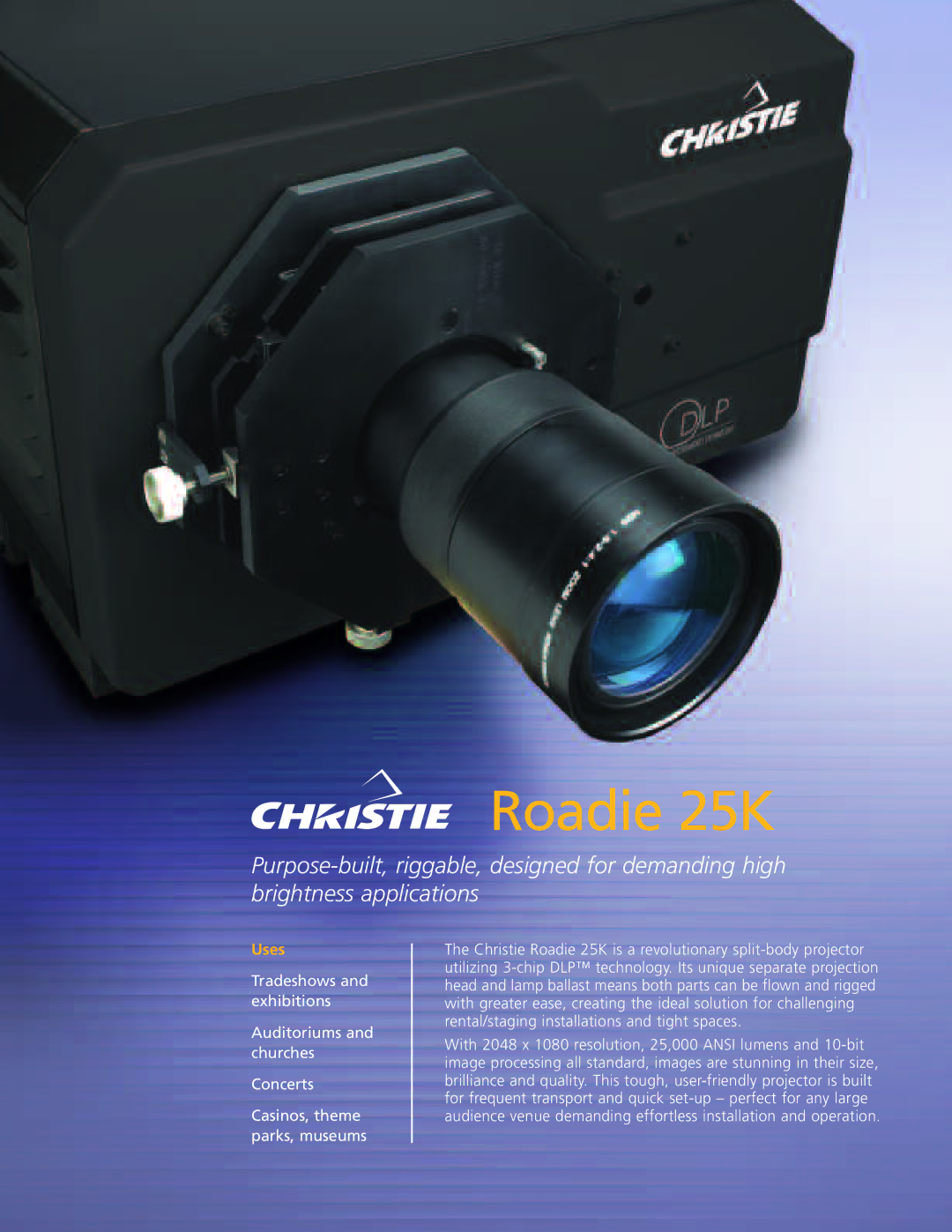

Image 2
Christie Digital Systems 25K Display Technology INPUTS, Control Resolution Networking, Brightness, Contrast Ratio, Lamp

25K specifications

Christie Digital Systems has long been a leader in the visualization industry, and their Christie 25K projector exemplifies this reputation for excellence in both performance and technology. Designed for large venues and demanding applications, the Christie 25K combines high brightness, advanced color accuracy, and robust connectivity options, making it ideal for a variety of settings including theaters, auditoriums, and event spaces.

One of the main features of the Christie 25K is its impressive brightness level, providing 25,000 ANSI lumens. This high output ensures that presentations and visual content remain vibrant and impactful, even in well-lit environments. The projector utilizes a DLP technology, ensuring sharp images and excellent contrast, while maintaining the consistency that users have come to expect from Christie products.

The Christie 25K employs an advanced color processing engine that enhances color fidelity and accuracy. This feature is particularly important for applications requiring precise color representation, such as corporate presentations, film screenings, and art installations. The projector's ability to reproduce a wide color gamut ensures stunning visuals that capture the attention of the audience.

Another notable characteristic is the projector’s flexible lens options. Christie offers a variety of lens choices that allow users to customize the projection to fit their specific spatial requirements. Whether users need a short throw lens for tight spaces or a long throw lens for large theaters, the Christie 25K can accommodate many configurations.

In terms of connectivity, the Christie 25K doesn’t disappoint. It comes equipped with multiple input options, including HDMI, 3G-SDI, and analog inputs, allowing for seamless integration into existing AV setups. Additionally, its advanced networking capabilities facilitate remote management and monitoring, providing users with the ability to control the projector from anywhere.

The projector’s compact design, coupled with a robust cooling system, ensures reliable operation over extended periods. This durability makes it suitable for rental and staging applications, where reliability is key. The Christie 25K exemplifies a commitment to quality and innovation, delivering exceptional performance tailored to the needs of professional users. In a world where visual impact is paramount, the Christie 25K stands out as a superior choice for those looking to elevate their presentations and events.
