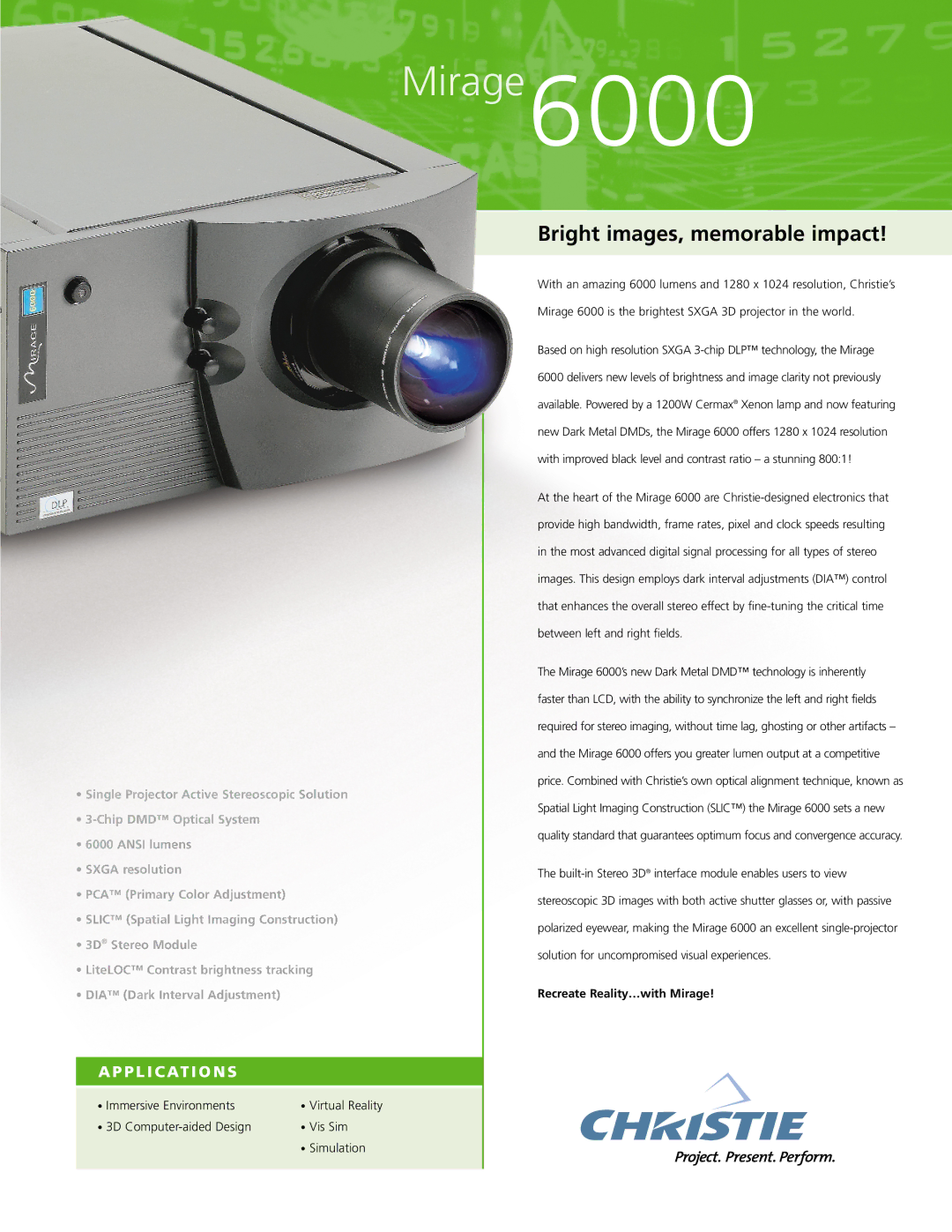

Mirage6000

Single Projector Active Stereoscopic Solution

3-Chip DMD™ Optical System

6000 ANSI lumens

SXGA resolution

PCA™ (Primary Color Adjustment)

SLIC™ (Spatial Light Imaging Construction)

3D® Stereo Module

LiteLOC™ Contrast brightness tracking

DIA™ (Dark Interval Adjustment)

A P P L I C AT I O N S

Immersive Environments

Virtual Reality

3D Computer-aided Design

Vis Sim



Simulation

Bright images, memorable impact!

With an amazing 6000 lumens and 1280 x 1024 resolution, Christie’s Mirage 6000 is the brightest SXGA 3D projector in the world.

Based on high resolution SXGA 3-chip DLP™ technology, the Mirage 6000 delivers new levels of brightness and image clarity not previously available. Powered by a 1200W Cermax® Xenon lamp and now featuring new Dark Metal DMDs, the Mirage 6000 offers 1280 x 1024 resolution with improved black level and contrast ratio – a stunning 800:1!

At the heart of the Mirage 6000 are Christie-designed electronics that provide high bandwidth, frame rates, pixel and clock speeds resulting in the most advanced digital signal processing for all types of stereo images. This design employs dark interval adjustments (DIA™) control that enhances the overall stereo effect by fine-tuning the critical time between left and right fields.

The Mirage 6000’s new Dark Metal DMD™ technology is inherently faster than LCD, with the ability to synchronize the left and right fields required for stereo imaging, without time lag, ghosting or other artifacts – and the Mirage 6000 offers you greater lumen output at a competitive price. Combined with Christie’s own optical alignment technique, known as

Spatial Light Imaging Construction (SLIC™) the Mirage 6000 sets a new

quality standard that guarantees optimum focus and convergence accuracy.

The built-in Stereo 3D® interface module enables users to view

stereoscopic 3D images with both active shutter glasses or, with passive

polarized eyewear, making the Mirage 6000 an excellent single-projector

solution for uncompromised visual experiences.

Recreate Reality…with Mirage!

Page 1
Image 1
Christie Digital Systems manual Mirage6000

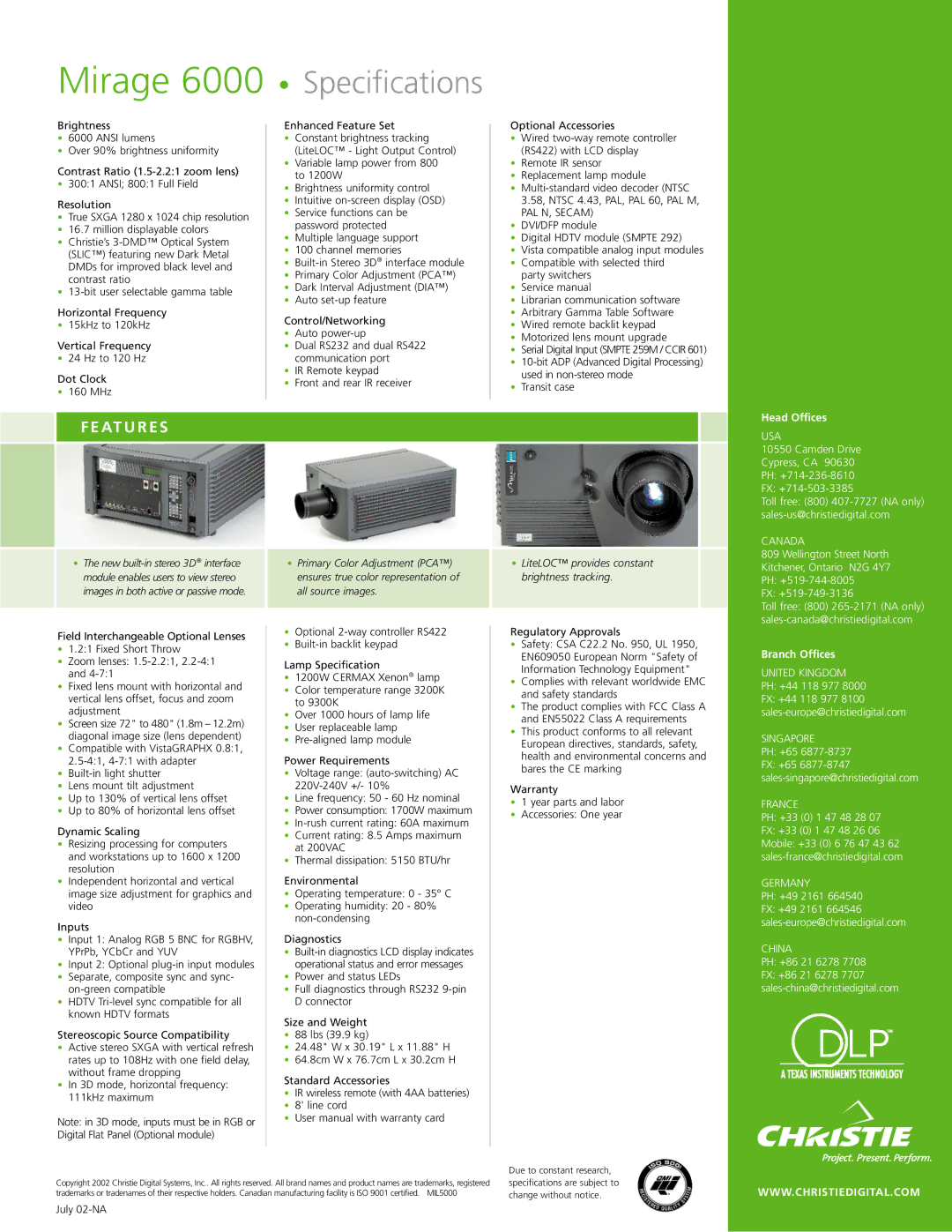

6000 specifications

Christie Digital Systems has long been a leader in the realm of visual display technology, and their feature-rich Christie 6000 series projectors exemplify their commitment to quality and innovation. Geared toward large venues, event spaces, and high-end installations, the Christie 6000 series projectors provide extraordinary brightness, vibrant color accuracy, and superior image quality.

One of the standout features of the Christie 6000 series is its high brightness levels, reaching up to 6,000 ANSI lumens. This level of brightness ensures exceptional performance in various lighting conditions, making it ideal for auditoriums and conference rooms where ambient light can be a challenge. The projectors utilize advanced DLP® technology, which enhances both the sharpness of the images and the overall durability of the unit. DLP technology contributes to a crisp, clear picture that remains consistent over time, ensuring that presentations look stunning day after day.

In terms of connectivity, the Christie 6000 series projectors are equipped with a variety of options. They support multiple input sources, including HDMI, DisplayPort, and VGA, allowing for seamless integration with various devices. This versatility ensures compatibility with a range of content formats, making it an excellent choice for multimedia presentations.

One of the hallmark characteristics of the Christie 6000 series is its sophisticated color management system. The projectors come with advanced color processing capabilities to produce rich, true-to-life colors that resonate with audiences. With a wide color gamut, the projectors render detailed images that captivate and engage viewers.

Additionally, the Christie 6000 series offers networking features that allow for remote monitoring and management. Users can manage projector operations from anywhere on the network, facilitating easy maintenance and troubleshooting. This connectivity feature is particularly beneficial for large installations where multiple projectors are deployed.

Durability is another key aspect of the Christie 6000 projectors. Designed with robust housing and advanced cooling systems, these projectors perform reliably even during extended use. This reliability makes them suitable for rental and staging environments, where performance consistency is crucial.

In summary, the Christie Digital Systems 6000 series projectors are a powerful blend of brightness, image quality, connectivity, and durability. They are designed to meet the needs of modern businesses, educational institutions, and entertainment venues alike, offering a versatile and high-performance solution for all projection needs.
