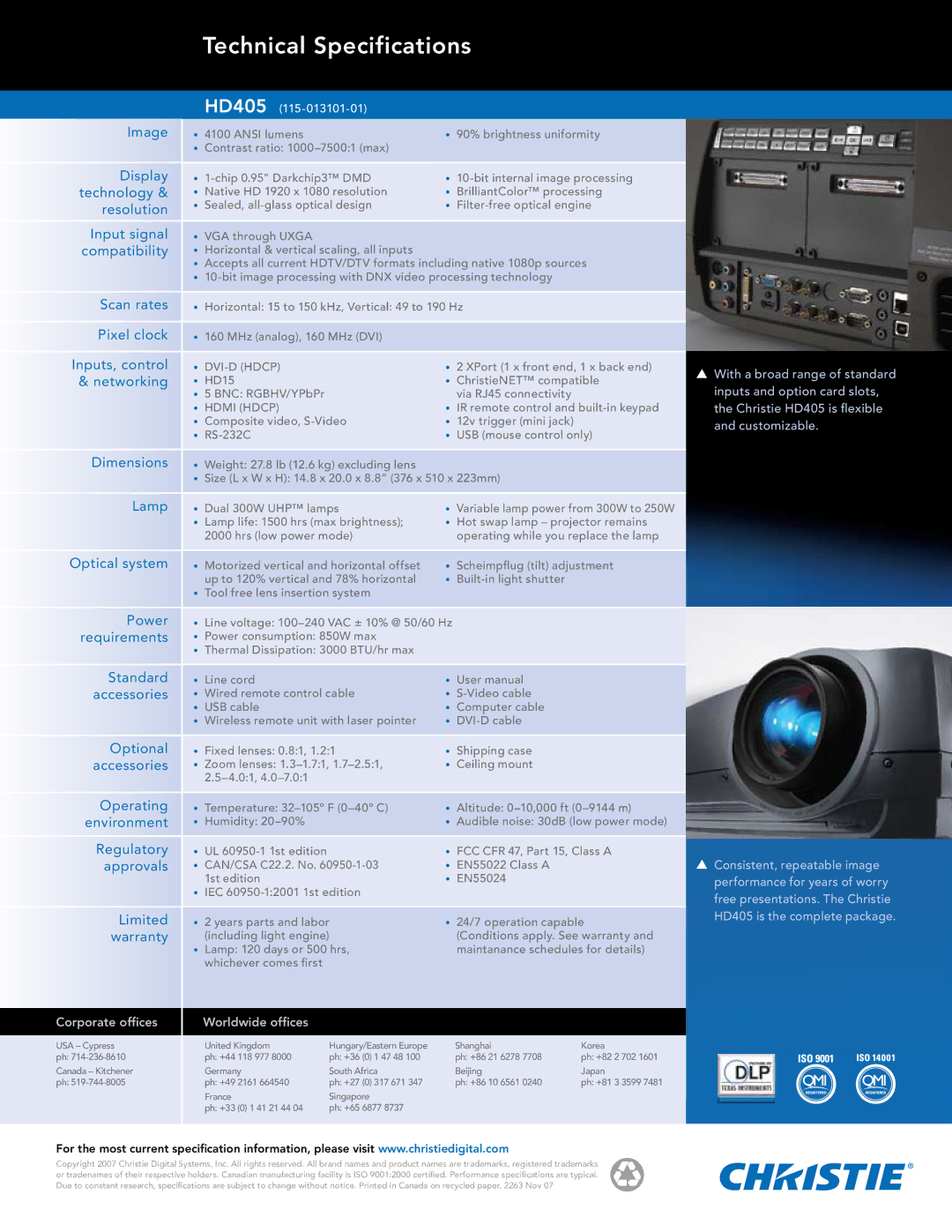

Technical Specifications


Display technology & resolution

Input signal compatibility

Scan rates

Pixel clock

Inputs, control & networking

Dimensions

Lamp

Optical system

Power requirements

Standard accessories

Optional accessories

Operating environment

Regulatory approvals

Limited warranty

Corporate offices

USA – Cypress ph: 714-236-8610

Canada – Kitchener ph: 519-744-8005

HD405 (115-013101-01)

• 4100 ANSI lumens • 90% brightness uniformity

•Contrast ratio: 1000–7500:1 (max)

•	1-chip 0.95” Darkchip3™ DMD	•	10-bit internal image processing
•	Native HD 1920 x 1080 resolution	•	BrilliantColor™ processing
•	Sealed, all-glass optical design	•	Filter-free optical engine

•VGA through UXGA

•Horizontal & vertical scaling, all inputs

•Accepts all current HDTV/DTV formats including native 1080p sources

•10-bit image processing with DNX video processing technology

•Horizontal: 15 to 150 kHz, Vertical: 49 to 190 Hz

•160 MHz (analog), 160 MHz (DVI)

•	DVI-D (HDCP)	•	2 XPort (1 x front end, 1 x back end)
•	HD15	•	ChristieNET™ compatible
•	5 BNC: RGBHV/YPbPr		via RJ45 connectivity
•	HDMI (HDCP)	•	IR remote control and built-in keypad
•	Composite video, S-Video	•	12v trigger (mini jack)
•	RS-232C	•	USB (mouse control only)

•Weight: 27.8 lb (12.6 kg) excluding lens

•Size (L x W x H): 14.8 x 20.0 x 8.8” (376 x 510 x 223mm)

•	Dual 300W UHP™ lamps	•	Variable lamp power from 300W to 250W
•	Lamp life: 1500 hrs (max brightness);	•	Hot swap lamp – projector remains
	2000 hrs (low power mode)		operating while you replace the lamp
•	Motorized vertical and horizontal offset	•	Scheimpflug (tilt) adjustment
	up to 120% vertical and 78% horizontal	•	Built-in light shutter

•Tool free lens insertion system

•Line voltage: 100–240 VAC ± 10% @ 50/60 Hz

•Power consumption: 850W max

•Thermal Dissipation: 3000 BTU/hr max

•	Line cord	•	User manual
•	Wired remote control cable	•	S-Video cable
•	USB cable	•	Computer cable
•	Wireless remote unit with laser pointer	•	DVI-D cable
•	Fixed lenses: 0.8:1, 1.2:1	•	Shipping case
•	Zoom lenses: 1.3–1.7:1, 1.7–2.5:1,	•	Ceiling mount
	2.5–4.0:1, 4.0–7.0:1
•	Temperature: 32–105º F (0–40º C)	•	Altitude: 0–10,000 ft (0–9144 m)
•	Humidity: 20–90%	•	Audible noise: 30dB (low power mode)
•	UL 60950-1 1st edition	•	FCC CFR 47, Part 15, Class A
•	CAN/CSA C22.2. No. 60950-1-03	•	EN55022 Class A
	1st edition	•	EN55024

•IEC 60950-1:2001 1st edition

•	2 years parts and labor	• 24/7 operation capable
	(including light engine)	(Conditions apply. See warranty and
•	Lamp: 120 days or 500 hrs,	maintanance schedules for details)
	whichever comes first

Worldwide offices

United Kingdom		Hungary/Eastern Europe­		Shanghai	Korea
ph: +44	118 977 8000	ph: +36	(0) 1 47 48 100	ph: +86 21 6278 7708	ph: +82	2 702 1601
Germany		South Africa		Beijing	Japan
ph: +49	2161 664540	ph: +27	(0) 317 671 347	ph: +86 10 6561 0240	ph: +81	3 3599 7481
France		Singapore
ph: +33	(0) 1 41 21 44 04	ph: +65	6877 8737

With a broad range of standard inputs and option card slots, the Christie HD405 is flexible and customizable.

Consistent, repeatable image performance for years of worry free presentations. The Christie HD405 is the complete package.

For the most current specification information, please visit www.christiedigital.com
