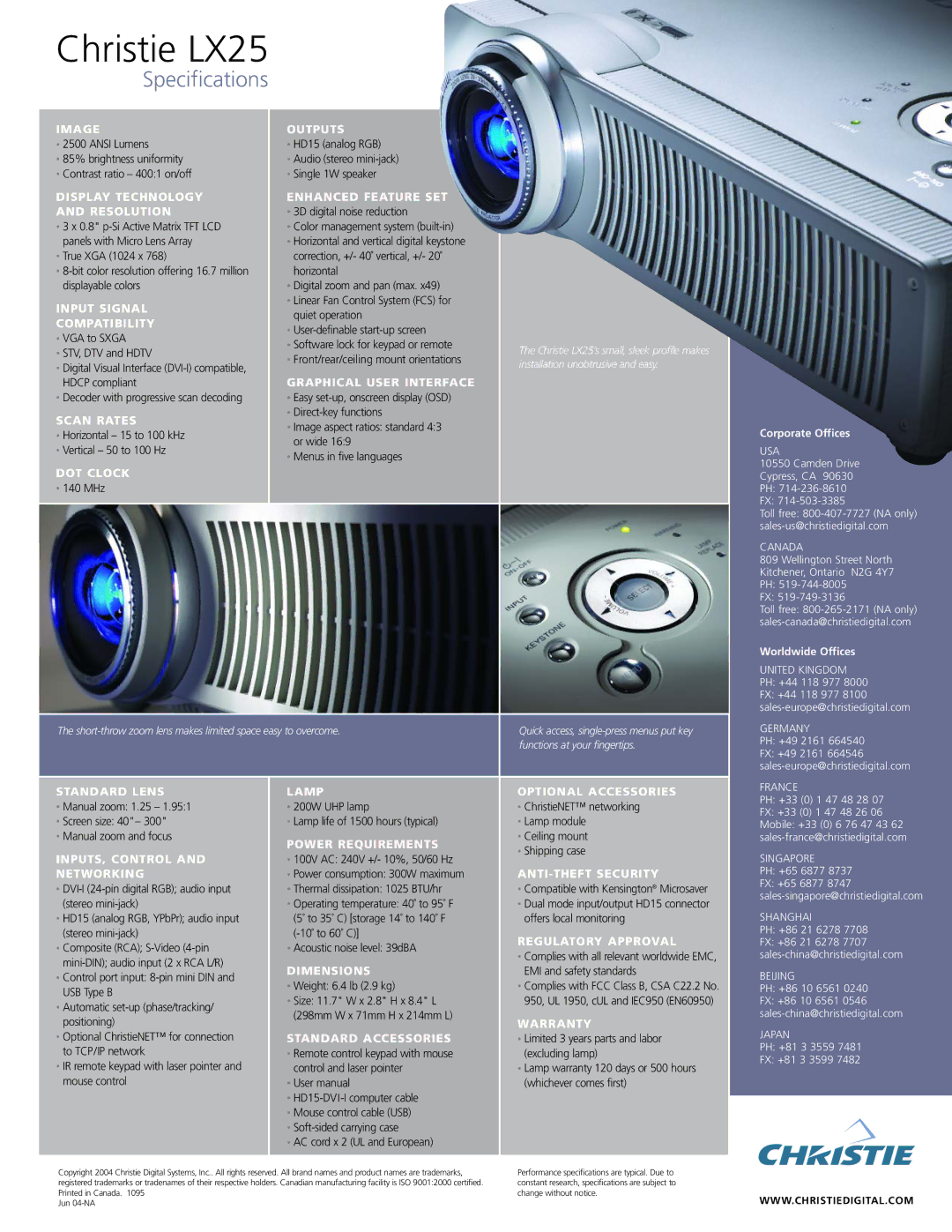

Christie LX25



Specifications




OUTPUTS

2500 ANSI Lumens

HD15 (analog RGB)

85% brightness uniformity

Audio (stereo mini-jack)

Contrast ratio – 400:1 on/off

Single 1W speaker

DISPLAY TECHNOLOGY

ENHANCED FEATURE SET



AND RESOLUTION

3D digital noise reduction



3 x 0.8" p-Si Active Matrix TFT LCD

Color management system (built-in)



panels with Micro Lens Array

Horizontal and vertical digital keystone



True XGA (1024 x 768)

correction, +/- 40˚ vertical, +/- 20˚



8-bit color resolution offering 16.7 million

horizontal



displayable colors

Digital zoom and pan (max. x49)



INPUT SIGNAL

Linear Fan Control System (FCS) for



quiet operation



COMPATIBILITY



User-definable start-up screen



VGA to SXGA



Software lock for keypad or remote

The Christie LX25’s small, sleek profile makes

STV, DTV and HDTV

Front/rear/ceiling mount orientations

Digital Visual Interface (DVI-I) compatible,

installation unobtrusive and easy.







HDCP compliant

GRAPHICAL USER INTERFACE



Decoder with progressive scan decoding

Easy set-up, onscreen display (OSD)



SCAN RATES

Direct-key functions



Image aspect ratios: standard 4:3



Horizontal – 15 to 100 kHz



or wide 16:9



Vertical – 50 to 100 Hz



Menus in five languages







DOT CLOCK





140 MHz





The short-throw zoom lens makes limited space easy to overcome.

Quick access, single-press menus put key



functions at your fingertips.

STANDARD LENS

LAMP

OPTIONAL ACCESSORIES

Manual zoom: 1.25 – 1.95:1

200W UHP lamp

ChristieNET™ networking

Screen size: 40"– 300"

Lamp life of 1500 hours (typical)

Lamp module

Manual zoom and focus

POWER REQUIREMENTS

Ceiling mount



Shipping case

INPUTS, CONTROL AND

100V AC: 240V +/- 10%, 50/60 Hz



NETWORKING

Power consumption: 300W maximum

ANTI-THEFT SECURITY

DVI-I (24-pin digital RGB); audio input

Thermal dissipation: 1025 BTU/hr

Compatible with Kensington® Microsaver

(stereo mini-jack)

Operating temperature: 40˚ to 95˚ F

Dual mode input/output HD15 connector

HD15 (analog RGB, YPbPr); audio input

(5˚ to 35˚ C) [storage 14˚ to 140˚ F

offers local monitoring

(stereo mini-jack)

(-10˚ to 60˚ C)]

REGULATORY APPROVAL

Composite (RCA); S-Video (4-pin

Acoustic noise level: 39dBA

Complies with all relevant worldwide EMC,

mini-DIN); audio input (2 x RCA L/R)



DIMENSIONS

EMI and safety standards

Control port input: 8-pin mini DIN and

Weight: 6.4 lb (2.9 kg)

Complies with FCC Class B, CSA C22.2 No.

USB Type B

Size: 11.7" W x 2.8" H x 8.4" L

950, UL 1950, cUL and IEC950 (EN60950)

Automatic set-up (phase/tracking/

(298mm W x 71mm H x 214mm L)



positioning)

WARRANTY



Optional ChristieNET™ for connection

STANDARD ACCESSORIES

Limited 3 years parts and labor

to TCP/IP network

Remote control keypad with mouse

(excluding lamp)

IR remote keypad with laser pointer and

control and laser pointer

Lamp warranty 120 days or 500 hours

mouse control

User manual

(whichever comes first)



HD15-DVI-I computer cable





Mouse control cable (USB)





Soft-sided carrying case





AC cord x 2 (UL and European)



Copyright 2004 Christie Digital Systems, Inc.. All rights reserved. All brand names and product names are trademarks,

Performance specifications are typical. Due to

registered trademarks or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001:2000 certified.

constant research, specifications are subject to

Printed in Canada. 1095



change without notice.
