MirageSIM

•4000 ANSI lumens and 1000:1 on/off contrast ratio

•SXGA resolution (1280 x 1024) with dark metal DMDs

•Built-in edge blending (software and opto-mechanical blinders included)

•110 VAC operation

•Brightness uniformity

•PCA™ Primary Color Adjustment for RGB color matching across multiple screens

•SLIC™ Spatial Light Image Construction

•LiteLOC™ constant brightness tracking

•MFD™ Minimum Frame Delay

•Wide range of optional lenses, modules and accessories

•Lens mount tilt adjustment

A P P L I C AT I O N S

• Aircraft, Ship’s Bridge and Land	• Architecture, Engineering
Vehicle Simulators	and Construction
• Driver Training	• Research and Development
• Air Traffic Control Simulators	• Military Training
• Design Simulation	• Entertainment

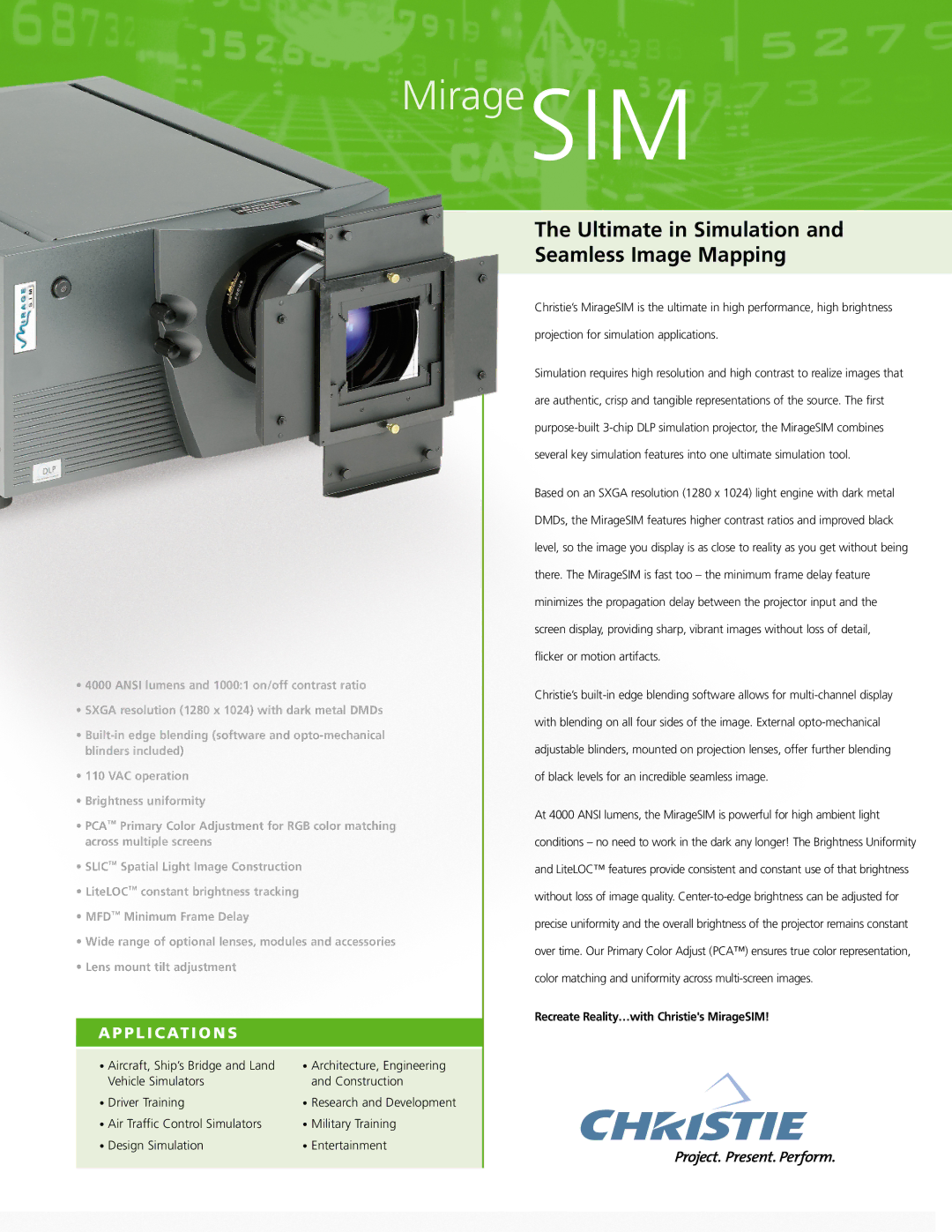

The Ultimate in Simulation and Seamless Image Mapping

Christie’s MirageSIM is the ultimate in high performance, high brightness projection for simulation applications.

Simulation requires high resolution and high contrast to realize images that are authentic, crisp and tangible representations of the source. The first purpose-built 3-chip DLP simulation projector, the MirageSIM combines several key simulation features into one ultimate simulation tool.

Based on an SXGA resolution (1280 x 1024) light engine with dark metal DMDs, the MirageSIM features higher contrast ratios and improved black level, so the image you display is as close to reality as you get without being there. The MirageSIM is fast too – the minimum frame delay feature minimizes the propagation delay between the projector input and the screen display, providing sharp, vibrant images without loss of detail, flicker or motion artifacts.

Christie’s built-in edge blending software allows for multi-channel display with blending on all four sides of the image. External opto-mechanical adjustable blinders, mounted on projection lenses, offer further blending of black levels for an incredible seamless image.

At 4000 ANSI lumens, the MirageSIM is powerful for high ambient light conditions – no need to work in the dark any longer! The Brightness Uniformity and LiteLOC™ features provide consistent and constant use of that brightness without loss of image quality. Center-to-edge brightness can be adjusted for precise uniformity and the overall brightness of the projector remains constant over time. Our Primary Color Adjust (PCA™) ensures true color representation, color matching and uniformity across multi-screen images.

Recreate Reality…with Christie's MirageSIM!
