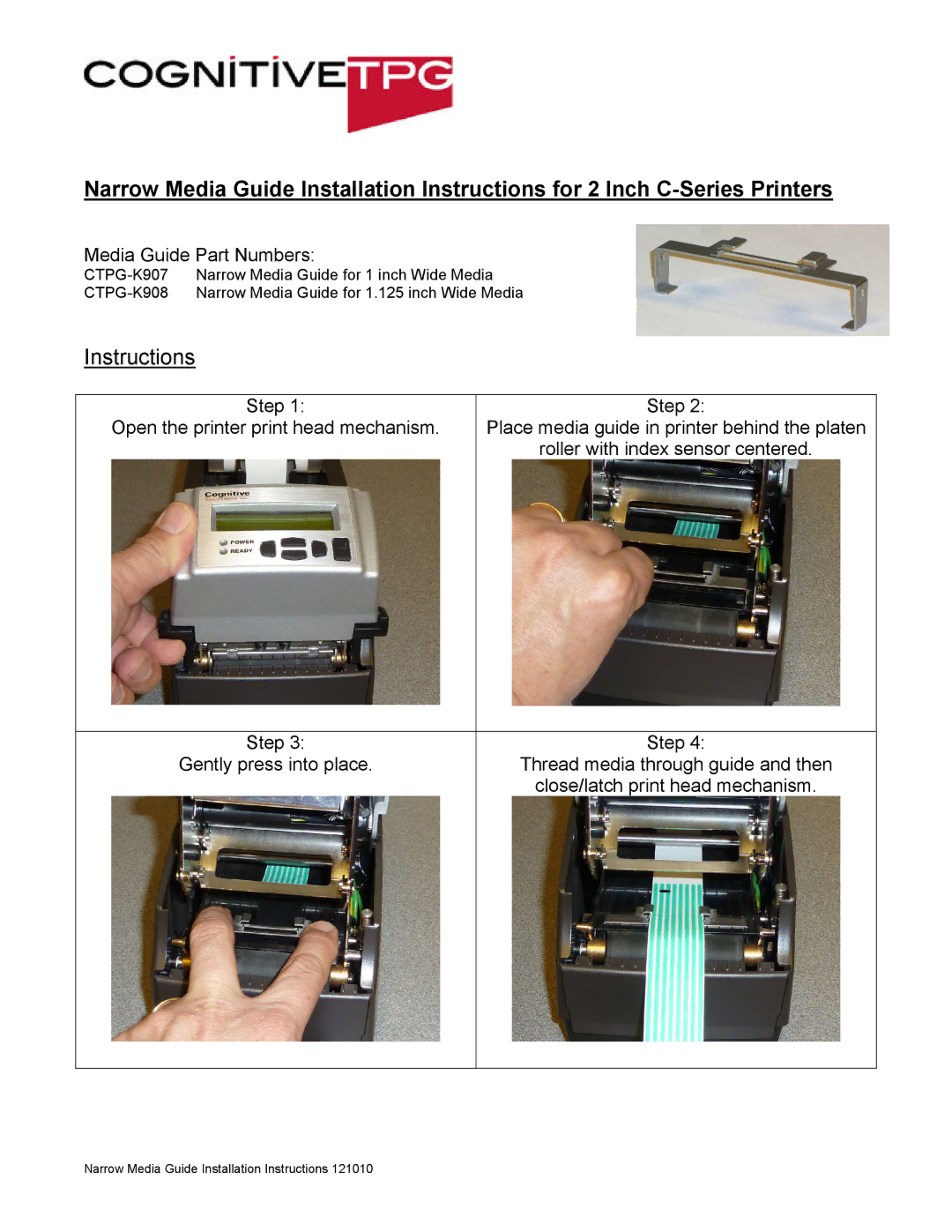

NARROW MEDIA GUIDE INSTALLATION INSTRUCTIONS FOR 2 INCH C-SERIES PRINTERS

Media Guide Part Numbers:

CTPG-K907 Narrow Media Guide for 1 inch Wide Media

CTPG-K908 Narrow Media Guide for 1.125 inch Wide Media

Instructions

Step 1:

Open the printer print head mechanism.

Step 2:

Place media guide in printer behind the platen

roller with index sensor centered.

Step 3:

Gently press into place.

Step 4:

Thread media through guide and then close/latch print head mechanism.

Narrow Media Guide Installation Instructions 121010
