Coleman 2000007831 Stake the Tent, Disassembly, To Store, Webbing Loop Tent Stake, Guyline Stake

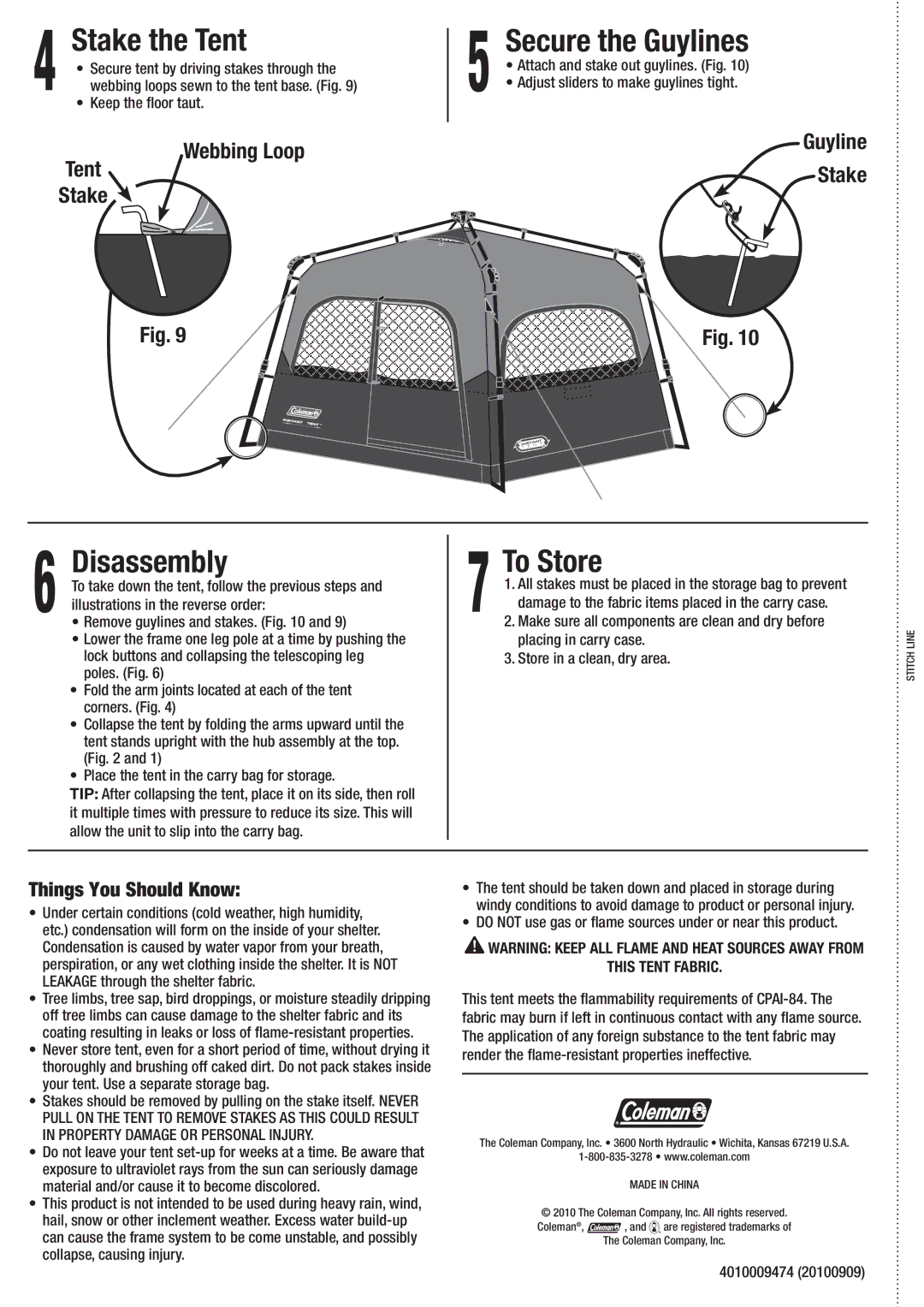

Stake the Tent

4	t Secure tent by driving stakes	through the
	webbing loops sewn to the	tent base. (Fig. 9)

t
Keep the floor taut.

Webbing Loop

Tent

Stake

Fig. 9

5Secure the Guylinest
Attach and stake out guylines. (Fig. 10)t
Adjust sliders to make guylines tight.

Guyline

Stake

Fig. 10

6	Disassembly
	To take down the tent, follow the previous steps and
	illustrations in the reverse order:
	t Remove guylines and stakes. (Fig. 10 and 9)
	t Lower the frame one leg pole at a time by pushing the
	lock buttons and collapsing the telescoping leg
	poles. (Fig. 6)
	t Fold the arm joints located at each of the tent
	corners. (Fig. 4)
	t Collapse the tent by folding the arms upward until the
	tent stands upright with the hub assembly at the top.
	(Fig. 2 and 1)
	t Place the tent in the carry bag for storage.
	TIP: After collapsing the tent, place it on its side, then roll
	it multiple times with pressure to reduce its size. This will
	allow the unit to slip into the carry bag.

7To Store

1.All stakes must be placed in the storage bag to prevent damage to the fabric items placed in the carry case.

2.Make sure all components are clean and dry before placing in carry case.

3.Store in a clean, dry area.

STITCH LINE

Things You Should Know:

t
Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside of your shelter. Condensation is caused by water vapor from your breath, perspiration, or any wet clothing inside the shelter. It is NOT LEAKAGE through the shelter fabric.

t
Tree limbs, tree sap, bird droppings, or moisture steadily dripping off tree limbs can cause damage to the shelter fabric and its coating resulting in leaks or loss of flame-resistant properties.

t
Never store tent, even for a short period of time, without drying it thoroughly and brushing off caked dirt. Do not pack stakes inside your tent. Use a separate storage bag.

t
Stakes should be removed by pulling on the stake itself. NEVER PULL ON THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.

t
Do not leave your tent set-up for weeks at a time. Be aware that exposure to ultraviolet rays from the sun can seriously damage material and/or cause it to become discolored.

t
This product is not intended to be used during heavy rain, wind, hail, snow or other inclement weather. Excess water build-up can cause the frame system to be come unstable, and possibly collapse, causing injury.

t
The tent should be taken down and placed in storage during windy conditions to avoid damage to product or personal injury.

t
DO NOT use gas or flame sources under or near this product.

WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM

THIS TENT FABRIC.

This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.

5IF
$PMFNBO
$PNQBOZ
*OD
t

/PSUI
)ZESBVMJD
t
8JDIJUB
,BOTBT

64"


t
XXXDPMFNBODPN

MADE IN CHINA

©2010 The Coleman Company, Inc. All rights reserved.

Coleman®,, and are registered trademarks of

The Coleman Company, Inc.

4010009474 (20100909)
