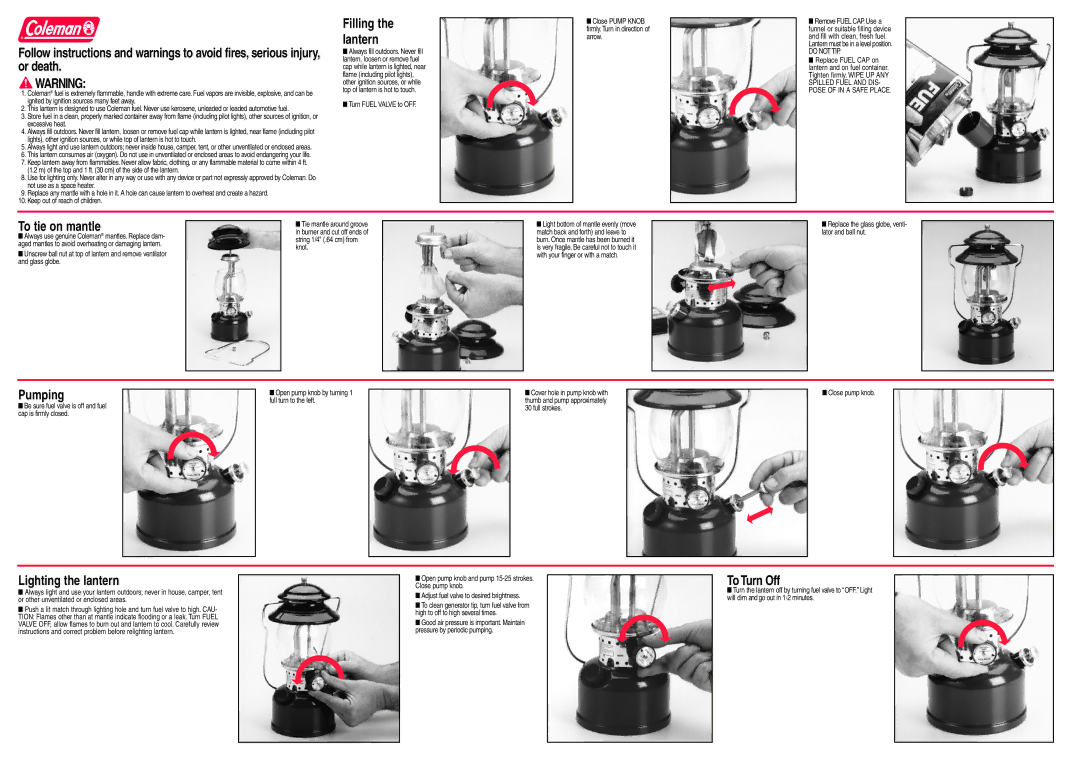

Coleman® Fuel Lanterns
Instructions for use
200BA65J
200BA66J®
Coleman Limited One-Year Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a period of one year from the date of original retail purchase, this product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer avail- able, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transfer- able. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman deal- ers, service centers, or retail stores selling Coleman® products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that are not genuine Coleman® parts, or damage resulting from any of the following: negligent use or misuse of the product; use on improper voltage or current; commercial use of the product; use contrary to the operating instructions; disassembly, repair or alteration by any- one other than Coleman or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. Warranty void if damage to product results from the use of a part other than a genuine Coleman® part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT ARE CAUSED BY THE USE OF UNAUTHO- RIZED PARTS OR SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUEN- TIAL DAMAGES CAUSED BY THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER- CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE WARRANTY OR CONDITIONS. SOME STATES, PROVINCES, OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITA- TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.You can find the nearest authorized Coleman serv- ice center by visiting www.coleman.com or calling
For products purchased in the United States: | For products purchased in Canada: |
The Coleman Company, Inc. | Sunbeam Corporation (Canada) Limited |
3600 North Hydraulic | 5975 Falbourne Street |
Wichita, KS 67219 | Mississauga, Ontario |
| Canada L5R 3V8 |
The costs of transporting the product to Coleman or an authorized service center for warranty service is the responsibility of the purchaser.
Do not mail products with fuel in tanks, or with disposable propane cylinders. Remove glass globes from lanterns and wrap separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
If you have any questions regarding this warranty please call
© 2005 The Coleman Company, Inc. All rights reserved. Coleman®, ® | and the shape of the lantern |
are registered trademarks of The Coleman Company, Inc. | Litho in the U.S.A. |
| |
| 200A055J (7/15/05) P.I. |
|
| Parts List |
No. | Part No. | Description |
1 | Burner Assembly | |
2 | 231A3111 | Spring Clip |
3 | Burner Tube and Retainer Assembly | |
4 | 21A | Mantle |
5 | 285A5891 | Generator |
6 | 286A6571 | Valve Assembly |
7 | Knob Assemby | |
8 | 200B4301 | Frame Bottom and Bolt Assembly |
9 | Heat Shield | |
10 | Collar Assembly | |
11 | 220C1401 | Filler Cap |
12 | 220A6201 | Pump Plunger Assembly |
13 | Globe |
14200B4901 Ventilator Assembly (Black) (Includes Bail)
15 | 220A4411 | Ball Nut |
Things you should know
1.Carry a spare set of Coleman® Mantles. Once burned, a mantle is fragile and can be damaged if touched or dropped.
2.For best results, use only Coleman® Fuel in this lantern. Coleman Fuel is especially formulated and tested to rigid specifi- cations for long storage life and includes a rust inhibitor to help prevent corrosion. Use of other fuels including unleaded automo- tive fuel may shorten generator life, damage lantern, and result in unsatisfactory performance.
3.Rinse tank occasionally with fresh fuel to remove sediment, gum formations, and moisture accumulations. If lantern is to be used for standby service, rinse and refill annually with fresh fuel.
4.Oil pump periodically to keep it working smoothly.
5.Part of the brightness control is located in the generator. If the lantern fails to adjust from high to low properly, replace the generator.
6.The usual storage areas for camping and picnic equipment are the basement, attic, or garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these storage areas, place your lantern in a plastic bag and seal it with a rubber band.
7.For repair service, call
8.If not completely satisfied with performance of this product, please call the
