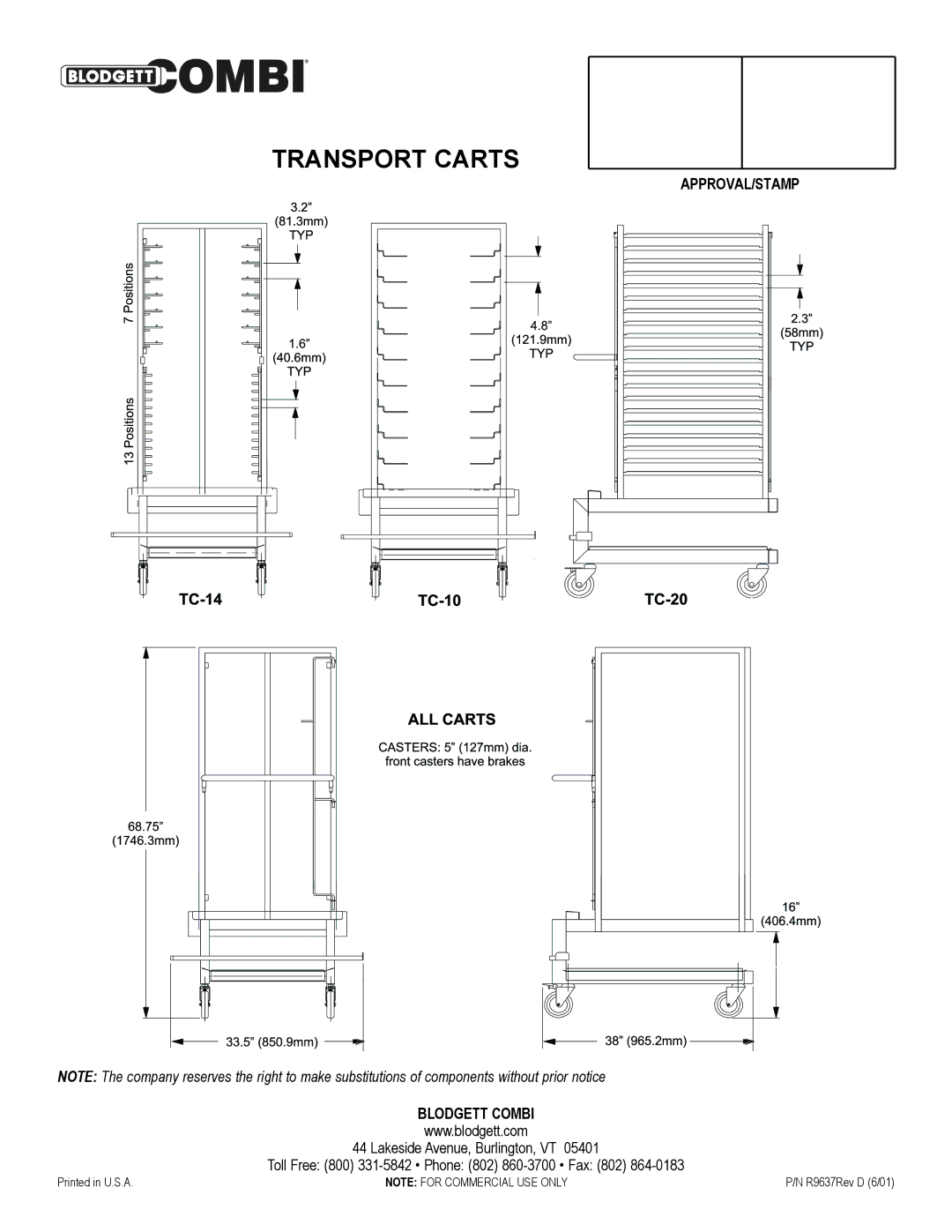

TRANSPORT CARTS

(Wire shelves not included)

Project







TRANSPORT









Item No.













Quantity









All data is shown per oven section, unless otherwise indicated.



STANDARD FEATURES

CARTS

„ Exterior of type 304 stainless steel



„ Locking pan stop



„ Capable of being hosed down for cleaning



„ Increases production capacity



„ 5" (127 mm) heavy duty casters (2 locking, 2 non-locking)



„ Drip pan for waste removal



„ Removable cart handle (excluding TC-10 model)



STANDARD CHOICES

„TC-10- 10 shelf universal rack guides which are welded, non-removable. Holds up to (10) 18" x 26" sheet pans or (20) 12" x 20" steam table pans up to 4" deep. Supplied without cart handle and handle supports for corrections applications.

„TC-14- 26 position rack guides at 3-1/4" spacing. Holds up to (14) 18" x 26" sheet pans on wire shelves or (28) 12" x 20" x 2.5" steam table pans. Utilizes SRG or URG rack guides (see options) Supplied as standard cart.

„TC-20- 20 position rack guides at 2-3/8" spacing. Holds up to (20) 18" x 26" sheet pans on wire shelves or (20) 12" x 20" x 2.5" steam table pans. Used primarily for Gastronorm pans (European standards).

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

‰SRG - 13 position rack guides for TC-14 cart (set of 2 per cart). Each set holds up to (7) 18" x 26" bake pans on wire shelves or (14) 12" x 20" x 2.5" steam table pans. May be used in conjunction with URG for maximum flexibility.

‰URG - 7 position rack guide for TC-14 cart (set of 2 per cart). Each set holds up to (7) 18" x 26" bake pans or (14) 12" x 20" x 2.5" steam table pans. Wire shelves not required. Guide will not accept steam table pans deeper than 2.5". May be used in con- junction with SRG for maximum flexiblity.

‰Stainless steel wire shelves.

‰Stainless steel chicken roasting rack - Half-size wire shelf with protruding holders. Will accommodate six chickens.

BLODGETT COMBI

www.blodgett.com

44 Lakeside Avenue, Burlington, VT 05401

Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183

Page 1
