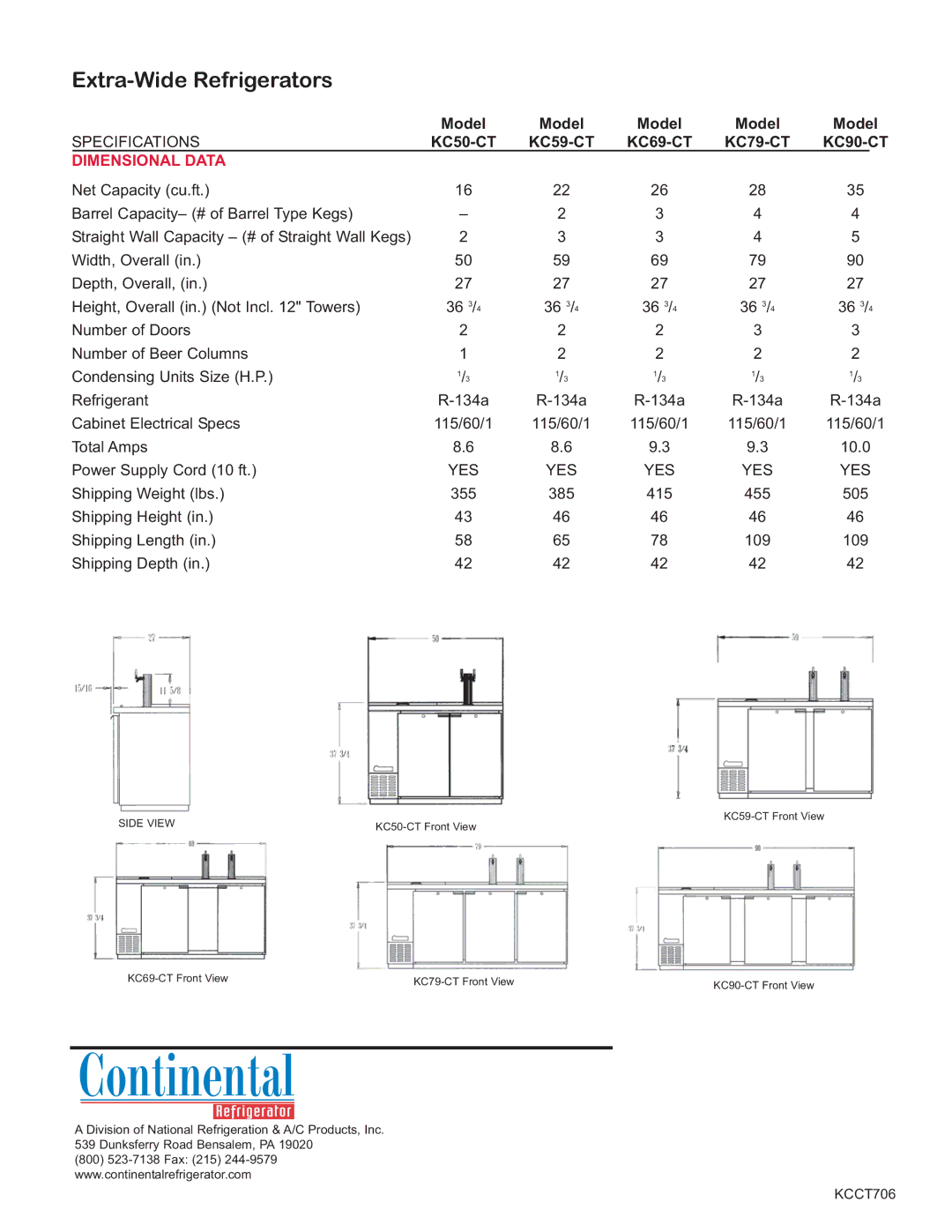

Extra-Wide Refrigerators
| Model | Model | Model | Model | Model | |
SPECIFICATIONS | ||||||
DIMENSIONAL DATA |
|
|
|
|
|
|
Net Capacity (cu.ft.) | 16 | 22 | 26 | 28 | 35 |
|
Barrel Capacity– (# of Barrel Type Kegs) | – | 2 | 3 | 4 | 4 |
|
Straight Wall Capacity – (# of Straight Wall Kegs) | 2 | 3 | 3 | 4 | 5 |
|
Width, Overall (in.) | 50 | 59 | 69 | 79 | 90 |
|
Depth, Overall, (in.) | 27 | 27 | 27 | 27 | 27 |
|
Height, Overall (in.) (Not Incl. 12" Towers) | 36 3/4 | 36 3/4 | 36 3/4 | 36 3/4 | 36 3/4 | |
Number of Doors | 2 | 2 | 2 | 3 | 3 |
|
Number of Beer Columns | 1 | 2 | 2 | 2 | 2 |
|
Condensing Units Size (H.P.) | 1/3 | 1/3 | 1/3 | 1/3 | 1/3 |
|
Refrigerant | ||||||
Cabinet Electrical Specs | 115/60/1 | 115/60/1 | 115/60/1 | 115/60/1 | 115/60/1 | |
Total Amps | 8.6 | 8.6 | 9.3 | 9.3 | 10.0 | |
Power Supply Cord (10 ft.) | YES | YES | YES | YES | YES | |
Shipping Weight (lbs.) | 355 | 385 | 415 | 455 | 505 |
|
Shipping Height (in.) | 43 | 46 | 46 | 46 | 46 |
|
Shipping Length (in.) | 58 | 65 | 78 | 109 | 109 |
|
Shipping Depth (in.) | 42 | 42 | 42 | 42 | 42 |
|
SIDE VIEW | ||
|
| ||
|
|
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800)
KCCT706
