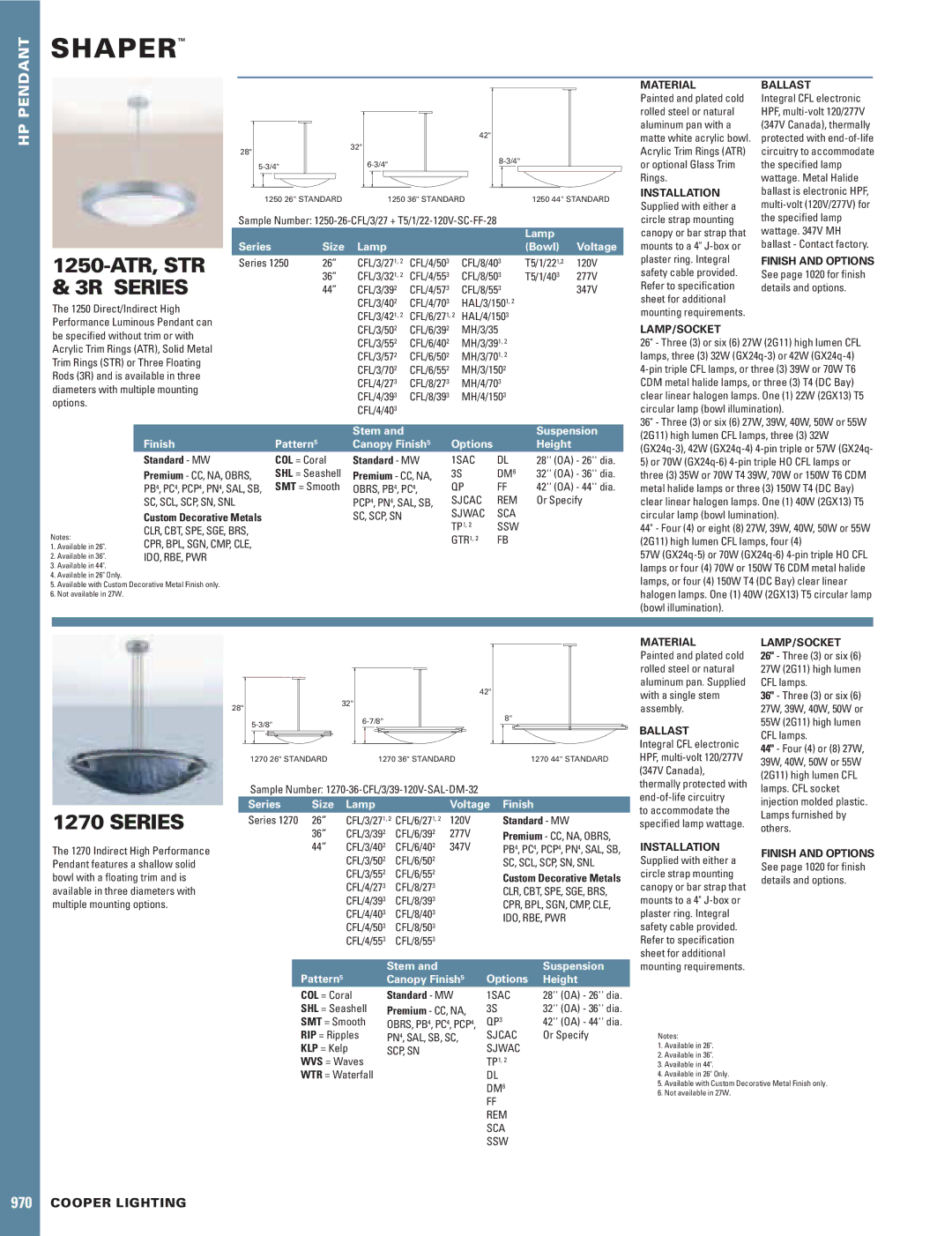

Cooper Lighting 1250-STR specifications Shaper, 1250-ATR,STR, 3R SERIES, Series, Pendant

PENDANT

SHAPER™

HP

		42"
28"	32"
		8-3/4"
5-3/4"	6-3/4"
1250 26" STANDARD	1250 36" STANDARD	1250 44" STANDARD

Sample Number: 1250-26-CFL/3/27 + T5/1/22-120V-SC-FF-28

Lamp

MATERIAL

Painted and plated cold rolled steel or natural aluminum pan with a matte white acrylic bowl. Acrylic Trim Rings (ATR) or optional Glass Trim Rings.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that

BALLAST

Integral CFL electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage. Metal Halide ballast is electronic HPF, multi-volt (120V/277V) for the specified lamp wattage. 347V MH

1250-ATR, STR	Series	Size
	Series 1250	26”
& 3R SERIES		36”
		44”

The 1250 Direct/Indirect High

Performance Luminous Pendant can

Lamp

CFL/3/271, 2	CFL/4/503	CFL/8/403
CFL/3/321, 2	CFL/4/553	CFL/8/503
CFL/3/392	CFL/4/573	CFL/8/553
CFL/3/402	CFL/4/703	HAL/3/1501, 2
CFL/3/421, 2	CFL/6/271, 2	HAL/4/1503

(Bowl) Voltage

T5/1/221,2 120V

T5/1/403 277V 347V

mounts to a 4" J-box or plaster ring. Integral safety cable provided. Refer to specification sheet for additional mounting requirements.

ballast - Contact factory.

FINISH AND OPTIONS See page 1020 for finish details and options.

be specified without trim or with Acrylic Trim Rings (ATR), Solid Metal Trim Rings (STR) or Three Floating Rods (3R) and is available in three diameters with multiple mounting options.

CFL/3/502	CFL/6/392	MH/3/35
CFL/3/552	CFL/6/402	MH/3/391, 2
CFL/3/572	CFL/6/502	MH/3/701, 2
CFL/3/702	CFL/6/552	MH/3/1502
CFL/4/273	CFL/8/273	MH/4/703
CFL/4/393	CFL/8/393	MH/4/1503
CFL/4/403

LAMP/SOCKET

26" - Three (3) or six (6) 27W (2G11) high lumen CFL lamps, three (3) 32W (GX24q-3) or 42W (GX24q-4)

4-pin triple CFL lamps, or three (3) 39W or 70W T6 CDM metal halide lamps, or three (3) T4 (DC Bay) clear linear halogen lamps. One (1) 22W (2GX13) T5 circular lamp (bowl illumination).

Notes:

Finish

Standard - MW

Premium - CC, NA, OBRS, PB4, PC4, PCP4, PN4, SAL, SB, SC, SCL, SCP, SN, SNL

Custom Decorative Metals

CLR, CBT, SPE, SGE, BRS,

Pattern5

COL = Coral

SHL = Seashell

SMT = Smooth

Stem and Canopy Finish5

Standard - MW Premium - CC, NA,

OBRS, PB4, PC4, PCP4, PN4, SAL, SB, SC, SCP, SN

Options

1SAC	DL
3S	DM6
QP	FF
SJCAC	REM
SJWAC	SCA
TP1, 2	SSW
GTR1, 2	FB

Suspension Height

28'' (OA) - 26'' dia. 32'' (OA) - 36'' dia. 42'' (OA) - 44'' dia. Or Specify

36" - Three (3) or six (6) 27W, 39W, 40W, 50W or 55W (2G11) high lumen CFL lamps, three (3) 32W (GX24q-3), 42W (GX24q-4) 4-pin triple or 57W (GX24q-

5) or 70W (GX24q-6) 4-pin triple HO CFL lamps or

three (3) 35W or 70W T4 39W, 70W or 150W T6 CDM

metal halide lamps or three (3) 150W T4 (DC Bay)

clear linear halogen lamps. One (1) 40W (2GX13) T5

circular lamp (bowl lumination).

44" - Four (4) or eight (8) 27W, 39W, 40W, 50W or 55W

(2G11) high lumen CFL lamps, four (4)

1.Available in 26".CPR, BPL, SGN, CMP, CLE,

2. Available in 36". IDO, RBE, PWR

3.Available in 44".

4.Available in 26" Only.

5.Available with Custom Decorative Metal Finish only.

6.Not available in 27W.

57W (GX24q-5) or 70W (GX24q-6) 4-pin triple HO CFL

lamps or four (4) 70W or 150W T6 CDM metal halide

lamps, or four (4) 150W T4 (DC Bay) clear linear

halogen lamps. One (1) 40W (2GX13) T5 circular lamp

(bowl illumination).

		42"
28"	32"
5-3/8"	6-7/8"	8"
1270 26" STANDARD	1270 36" STANDARD	1270 44" STANDARD

MATERIAL

Painted and plated cold rolled steel or natural aluminum pan. Supplied with a single stem assembly.

BALLAST

Integral CFL electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with

LAMP/SOCKET 26" - Three (3) or six (6) 27W (2G11) high lumen CFL lamps.

36" - Three (3) or six (6) 27W, 39W, 40W, 50W or 55W (2G11) high lumen CFL lamps.

44" - Four (4) or (8) 27W, 39W, 40W, 50W or 55W (2G11) high lumen CFL

1270 SERIES

The 1270 Indirect High Performance Pendant features a shallow solid bowl with a floating trim and is available in three diameters with multiple mounting options.

Sample Number: 1270-36-CFL/3/39-120V-SAL-DM-32

Series	Size	Lamp		Voltage
Series 1270	26”	CFL/3/271, 2	CFL/6/271, 2	120V
	36”	CFL/3/392	CFL/6/392	277V
	44”	CFL/3/402	CFL/6/402	347V
		CFL/3/502	CFL/6/502
		CFL/3/552	CFL/6/552
		CFL/4/273	CFL/8/273
		CFL/4/393	CFL/8/393
		CFL/4/403	CFL/8/403
		CFL/4/503	CFL/8/503
		CFL/4/553	CFL/8/553

Finish

Standard - MW

Premium - CC, NA, OBRS, PB4, PC4, PCP4, PN4, SAL, SB, SC, SCL, SCP, SN, SNL

Custom Decorative Metals

CLR, CBT, SPE, SGE, BRS, CPR, BPL, SGN, CMP, CLE,

IDO, RBE, PWR

end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided. Refer to specification sheet for additional

lamps. CFL socket injection molded plastic. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

	Stem and
Pattern5	Canopy Finish5
COL = Coral	Standard - MW
SHL = Seashell	Premium - CC, NA,
SMT = Smooth	OBRS, PB4, PC4, PCP4,
RIP = Ripples	PN4, SAL, SB, SC,
KLP = Kelp	SCP, SN
WVS = Waves
WTR = Waterfall

	Suspension
Options	Height
1SAC	28'' (OA) - 26'' dia.
3S	32'' (OA) - 36'' dia.
QP3	42'' (OA) - 44'' dia.
SJCAC	Or Specify
SJWAC
TP1, 2
DL
DM6
FF
REM
SCA
SSW

mounting requirements.

Notes:

1.Available in 26".

2.Available in 36".

3.Available in 44".

4.Available in 26" Only.

5.Available with Custom Decorative Metal Finish only.

6.Not available in 27W.

970COOPER LIGHTING
