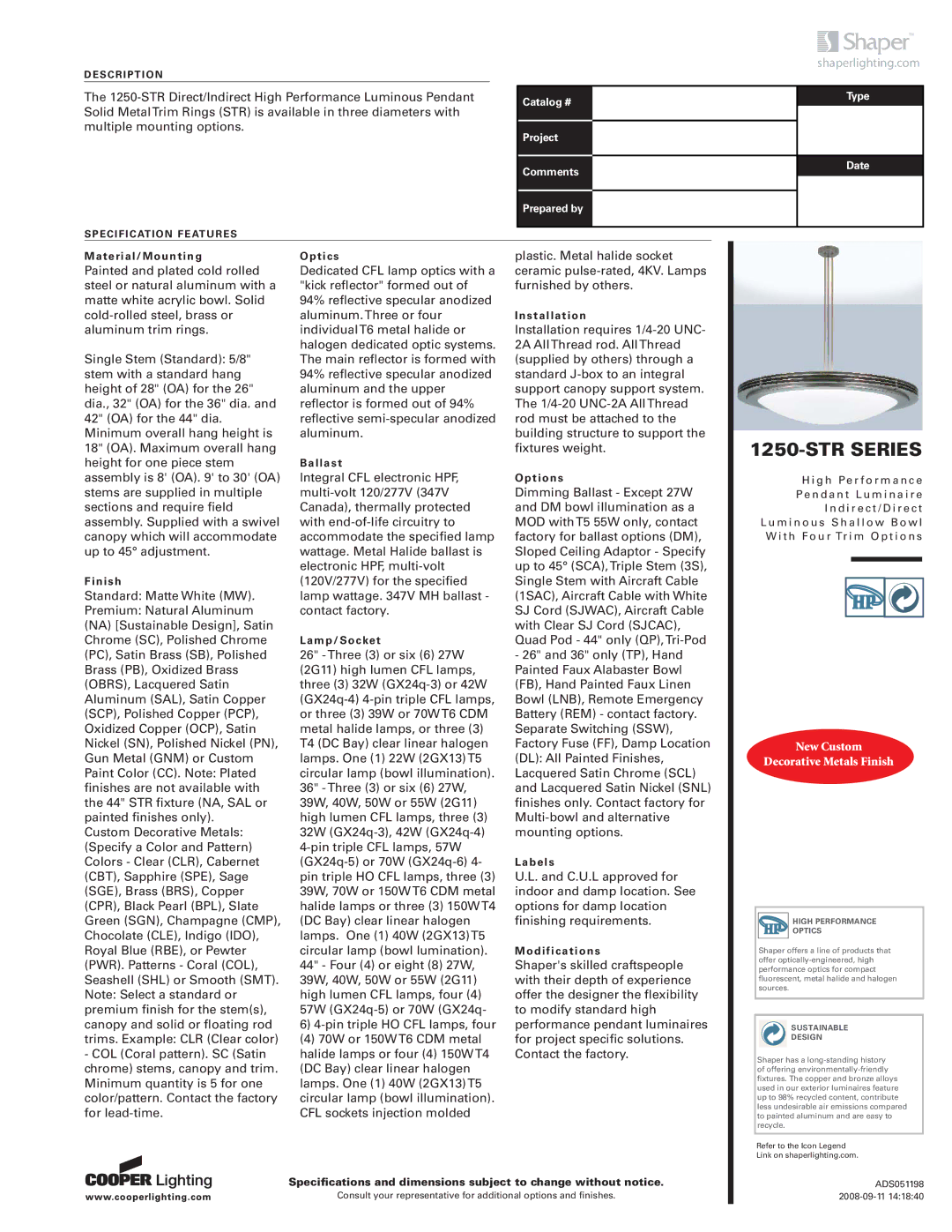

DESCRIPTION

The 1250-STR Direct/Indirect High Performance Luminous Pendant Solid MetalTrim Rings (STR) is available in three diameters with multiple mounting options.

SPECIFICATION FEATURES

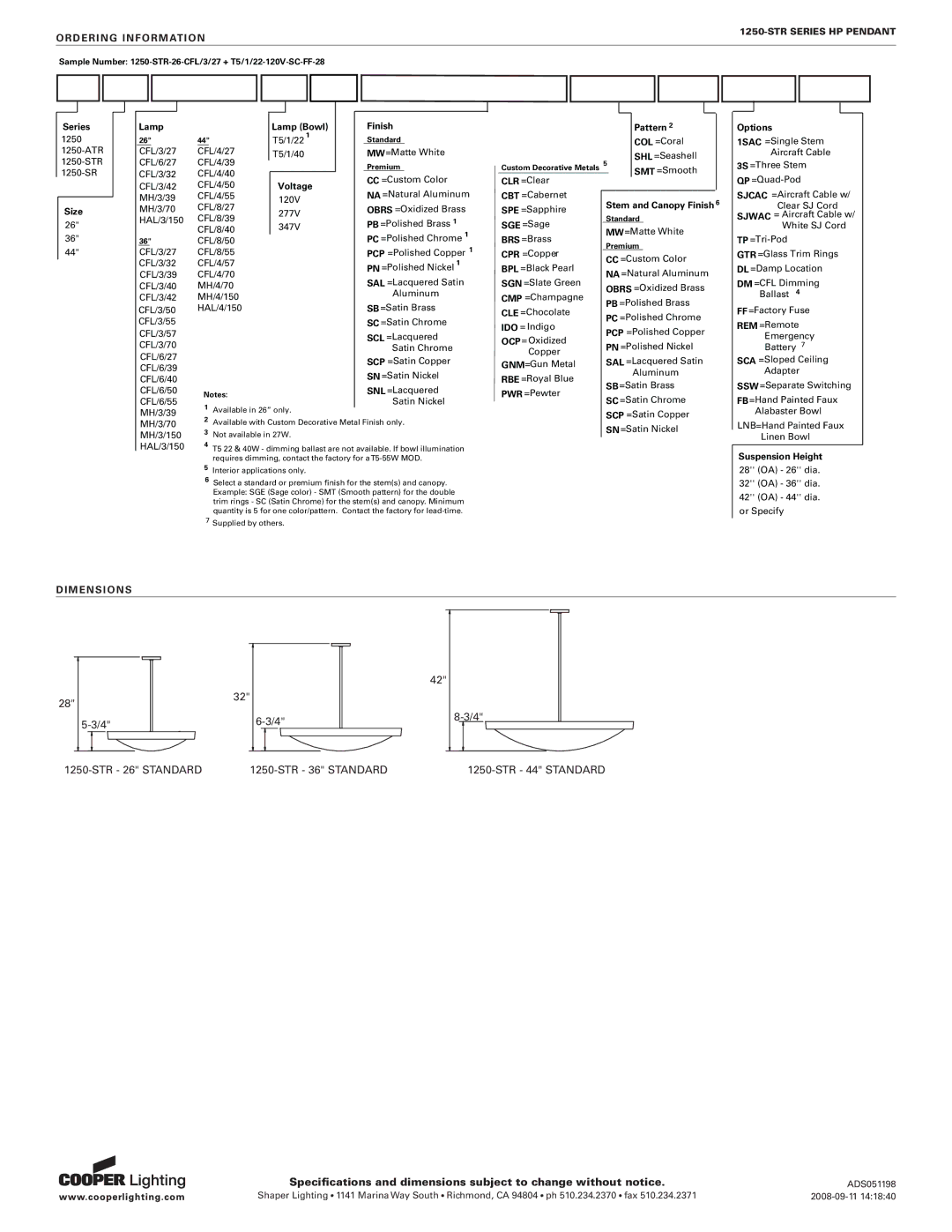

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material/Mounting

Painted and plated cold rolled steel or natural aluminum with a matte white acrylic bowl. Solid cold-rolled steel, brass or aluminum trim rings.

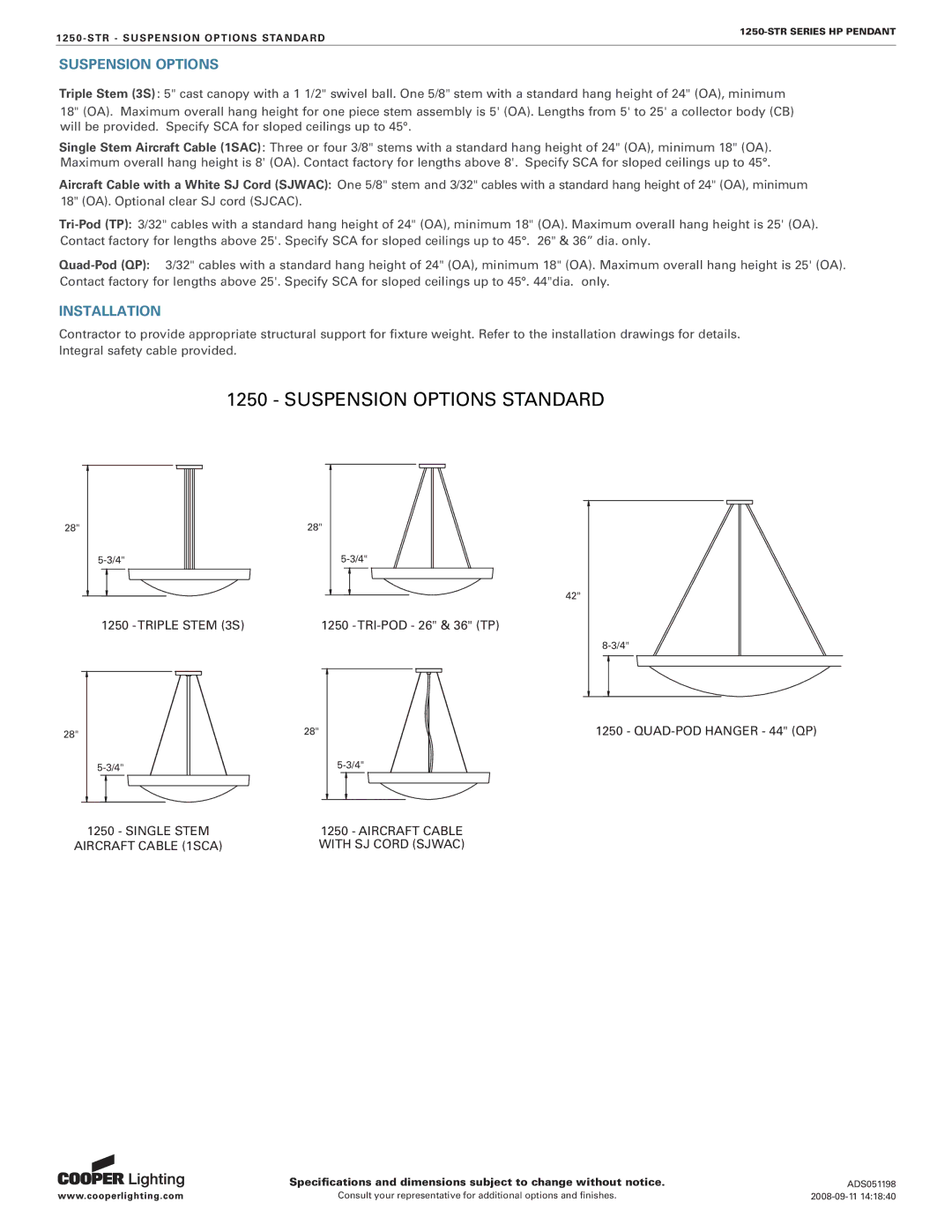

Single Stem (Standard): 5/8" stem with a standard hang height of 28" (OA) for the 26" dia., 32" (OA) for the 36" dia. and 42" (OA) for the 44" dia. Minimum overall hang height is 18" (OA). Maximum overall hang height for one piece stem assembly is 8' (OA). 9' to 30' (OA) stems are supplied in multiple sections and require ﬁeld assembly. Supplied with a swivel canopy which will accommodate up to 45° adjustment.

Finish

Standard: Matte White (MW).

Premium: Natural Aluminum (NA) [Sustainable Design], Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS), Lacquered Satin Aluminum (SAL), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Gun Metal (GNM) or Custom Paint Color (CC). Note: Plated ﬁnishes are not available with the 44" STR ﬁxture (NA, SAL or painted ﬁnishes only).

Custom Decorative Metals: (Specify a Color and Pattern) Colors - Clear (CLR), Cabernet (CBT), Sapphire (SPE), Sage (SGE), Brass (BRS), Copper (CPR), Black Pearl (BPL), Slate Green (SGN), Champagne (CMP), Chocolate (CLE), Indigo (IDO), Royal Blue (RBE), or Pewter (PWR). Patterns - Coral (COL), Seashell (SHL) or Smooth (SMT). Note: Select a standard or premium ﬁnish for the stem(s), canopy and solid or ﬂoating rod trims. Example: CLR (Clear color)

-COL (Coral pattern). SC (Satin chrome) stems, canopy and trim. Minimum quantity is 5 for one color/pattern. Contact the factory for lead-time.

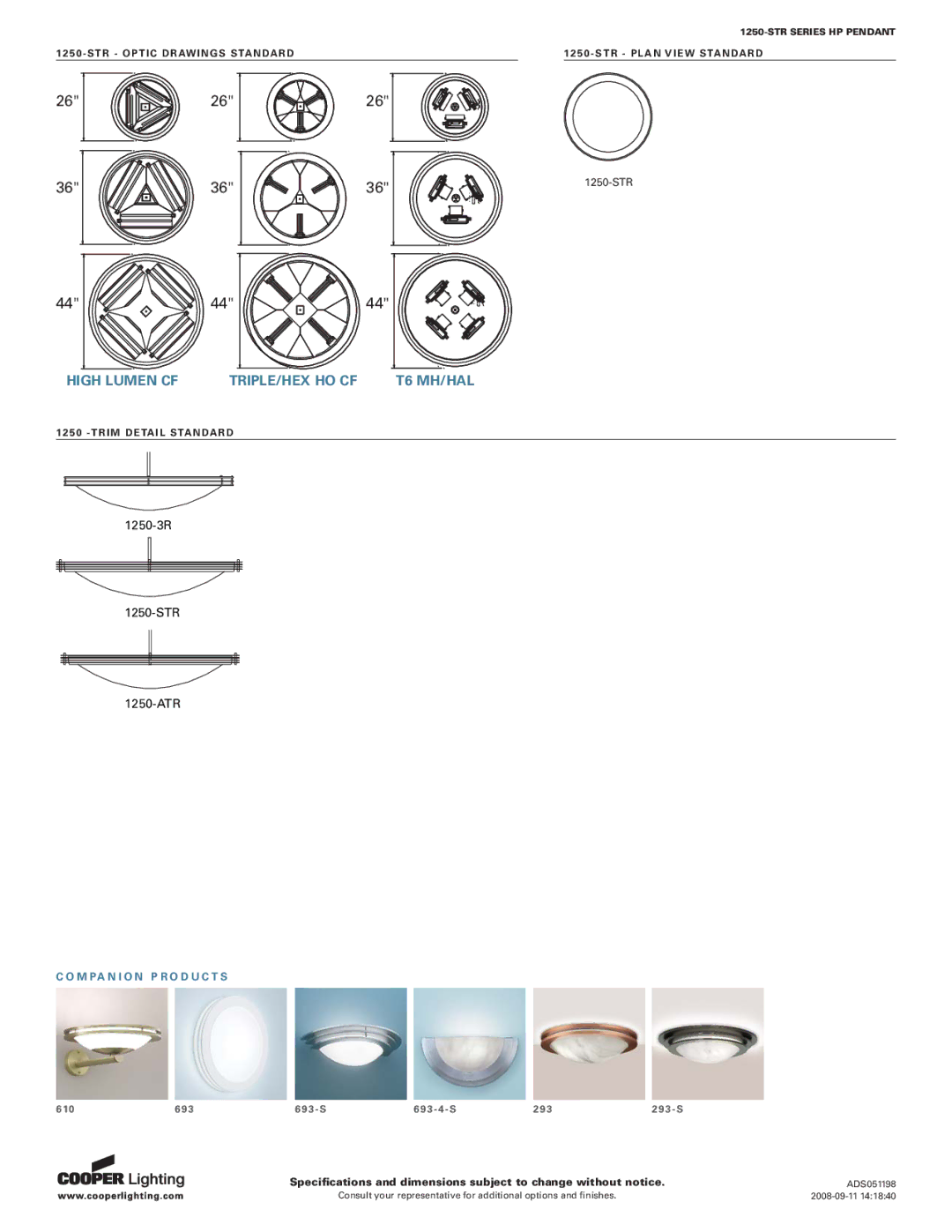

Optics

Dedicated CFL lamp optics with a "kick reﬂector" formed out of

94% reﬂective specular anodized aluminum.Three or four individualT6 metal halide or halogen dedicated optic systems. The main reﬂector is formed with 94% reﬂective specular anodized aluminum and the upper reﬂector is formed out of 94% reﬂective semi-specular anodized aluminum.

Ballast

Integral CFL electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the speciﬁed lamp wattage. Metal Halide ballast is electronic HPF, multi-volt (120V/277V) for the speciﬁed lamp wattage. 347V MH ballast - contact factory.

Lamp/Socket

26" -Three (3) or six (6) 27W (2G11) high lumen CFL lamps, three (3) 32W (GX24q-3) or 42W (GX24q-4) 4-pin triple CFL lamps, or three (3) 39W or 70WT6 CDM metal halide lamps, or three (3) T4 (DC Bay) clear linear halogen lamps. One (1) 22W (2GX13)T5 circular lamp (bowl illumination). 36" -Three (3) or six (6) 27W, 39W, 40W, 50W or 55W (2G11) high lumen CFL lamps, three (3) 32W (GX24q-3), 42W (GX24q-4)

4-pin triple CFL lamps, 57W (GX24q-5) or 70W (GX24q-6) 4- pin triple HO CFL lamps, three (3) 39W, 70W or 150WT6 CDM metal halide lamps or three (3) 150WT4 (DC Bay) clear linear halogen lamps. One (1) 40W (2GX13)T5 circular lamp (bowl lumination). 44" - Four (4) or eight (8) 27W, 39W, 40W, 50W or 55W (2G11) high lumen CFL lamps, four (4) 57W (GX24q-5) or 70W (GX24q-

6)4-pin triple HO CFL lamps, four

(4) 70W or 150WT6 CDM metal halide lamps or four (4) 150WT4 (DC Bay) clear linear halogen lamps. One (1) 40W (2GX13)T5 circular lamp (bowl illumination). CFL sockets injection molded

plastic. Metal halide socket ceramic pulse-rated, 4KV. Lamps furnished by others.

Installation

Installation requires 1/4-20 UNC- 2A AllThread rod. AllThread (supplied by others) through a standard J-box to an integral support canopy support system. The 1/4-20 UNC-2A AllThread rod must be attached to the building structure to support the ﬁxtures weight.

Options

Dimming Ballast - Except 27W and DM bowl illumination as a MOD withT5 55W only, contact factory for ballast options (DM), Sloped Ceiling Adaptor - Specify up to 45° (SCA),Triple Stem (3S), Single Stem with Aircraft Cable (1SAC), Aircraft Cable with White SJ Cord (SJWAC), Aircraft Cable with Clear SJ Cord (SJCAC), Quad Pod - 44" only (QP),Tri-Pod

-26" and 36" only (TP), Hand Painted Faux Alabaster Bowl (FB), Hand Painted Faux Linen Bowl (LNB), Remote Emergency Battery (REM) - contact factory. Separate Switching (SSW), Factory Fuse (FF), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) ﬁnishes only. Contact factory for Multi-bowl and alternative mounting options.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location ﬁnishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the ﬂexibility to modify standard high performance pendant luminaires for project speciﬁc solutions. Contact the factory.

1250-STR SERIES

H i g h P e r f o r m a n c e P e n d a n t L u m i n a i r e I n d i r e c t / D i r e c t

L u m i n o u s S h a l l o w B o w l W i t h F o u r Tr i m O p t i o n s

New Custom

Decorative Metals Finish

HIGH PERFORMANCE

OPTICS

Shaper offers a line of products that offer optically-engineered, high performance optics for compact ﬂuorescent, metal halide and halogen sources.

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly ﬁxtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

Refer to the Icon Legend

Link on shaperlighting.com.

Speciﬁcations and dimensions subject to change without notice.

Consult your representative for additional options and ﬁnishes.

ADS051198 2008-09-11 14:18:40
