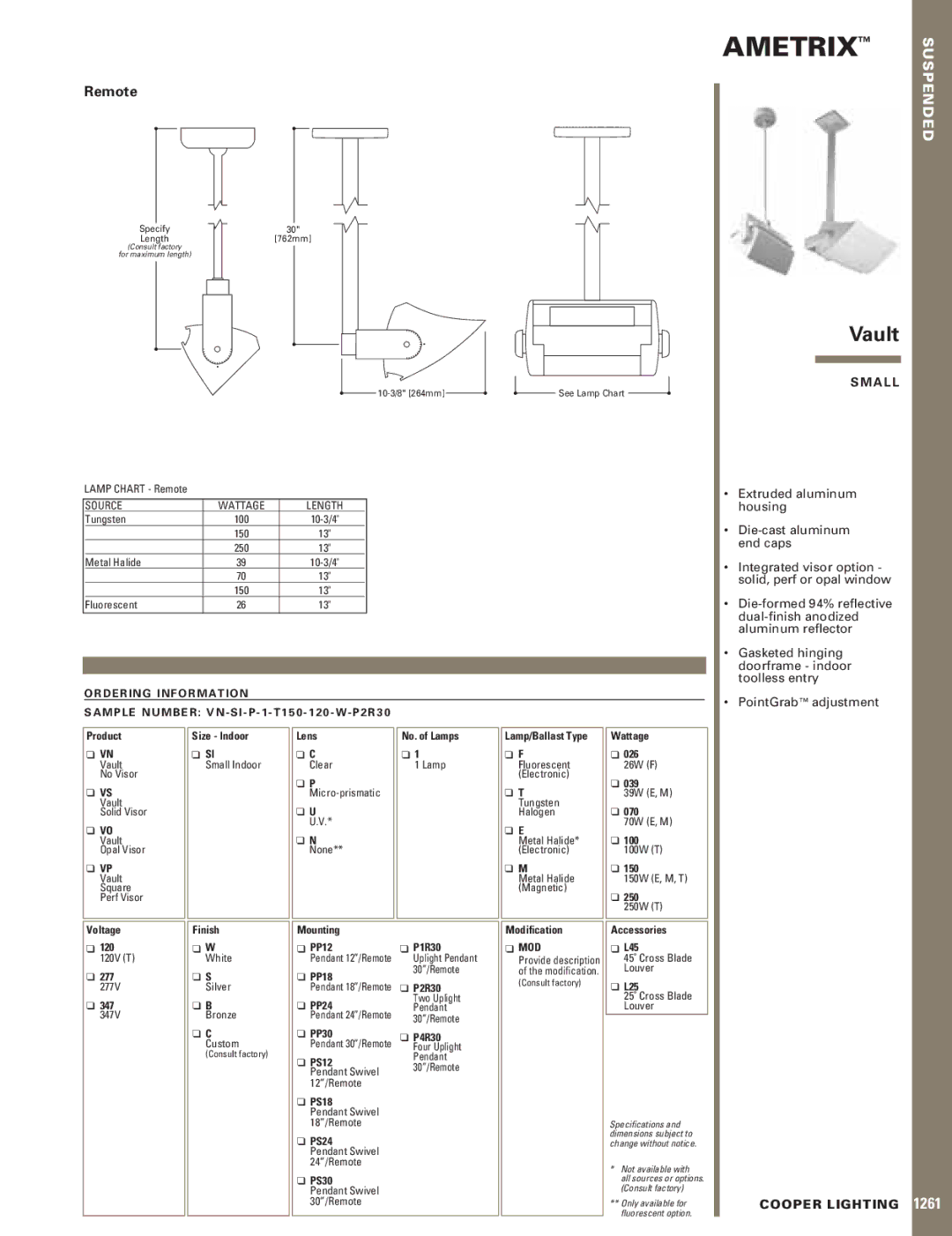

Cooper Lighting 1261 specifications Ametrix, Vault, Remote, Suspended, S M A L L, Cooper Lighting

Remote

Specify	30"
Length	[762mm]

(Consult factory

for maximum length)

10-3/8" [264mm] See Lamp Chart

LAMP CHART - Remote

SOURCE	WATTAGE	LENGTH
Tungsten	100	10-3/4"
	150	13"
	250	13"
Metal Halide	39	10-3/4"
	70	13"
	150	13"
Fluorescent	26	13"

O R D E R I N G I N F O R M A T I O N

S A M P L E N U M B E R : V N - S I - P - 1 - T 1 5 0 - 1 2 0 - W - P 2 R 3 0

AMETRIX™ SUSPENDED

Vault

S M A L L

•Extruded aluminum housing•Die-cast aluminum end caps

•Integrated visor option - solid, perf or opal window

•Die-formed 94% reflective dual-finish anodized aluminum reflector

•Gasketed hinging doorframe - indoor toolless entry

•PointGrab™ adjustment

Product

❑VN Vault No Visor

❑VS Vault Solid Visor

❑VO Vault Opal Visor

❑VP Vault Square Perf Visor

Size - Indoor

❑SI

Small Indoor

Lens

❑C Clear

❑P Micro-prismatic

❑U U.V.*

❑N None**

No. of Lamps

❑1

1 Lamp

Lamp/Ballast Type

❑F Fluorescent (Electronic)

❑T Tungsten Halogen

❑E

Metal Halide* (Electronic)

❑M

Metal Halide (Magnetic)

Wattage

❑026

26W (F)

❑039

39W (E, M)

❑070

70W (E, M)

❑100

100W (T)

❑150

150W (E, M, T)

❑250

250W (T)

Voltage

❑120

120V (T)

❑277

277V

❑347

347V

Finish

❑W White

❑S Silver

❑B Bronze

❑C Custom

(Consult factory)

Mounting
❑ PP12	❑ P1R30
Pendant 12”/Remote	Uplight Pendant
❑ PP18	30”/Remote
Pendant 18”/Remote	❑ P2R30
❑ PP24	Two Uplight
	Pendant
Pendant 24”/Remote	30”/Remote
❑ PP30	❑ P4R30
Pendant 30”/Remote	Four Uplight
❑ PS12	Pendant
	30”/Remote
Pendant Swivel
12”/Remote
❑ PS18
Pendant Swivel
18”/Remote
❑ PS24
Pendant Swivel
24”/Remote
❑ PS30
Pendant Swivel
30”/Remote

Modification

❑MOD

Provide description of the modification.

(Consult factory)

Accessories

❑L45

45˚ Cross Blade Louver

❑L25

25˚ Cross Blade Louver

Specifications and dimensions subject to change without notice.

*Not available with

all sources or options. (Consult factory)

**Only available for fluorescent option.

COOPER LIGHTING 1261
