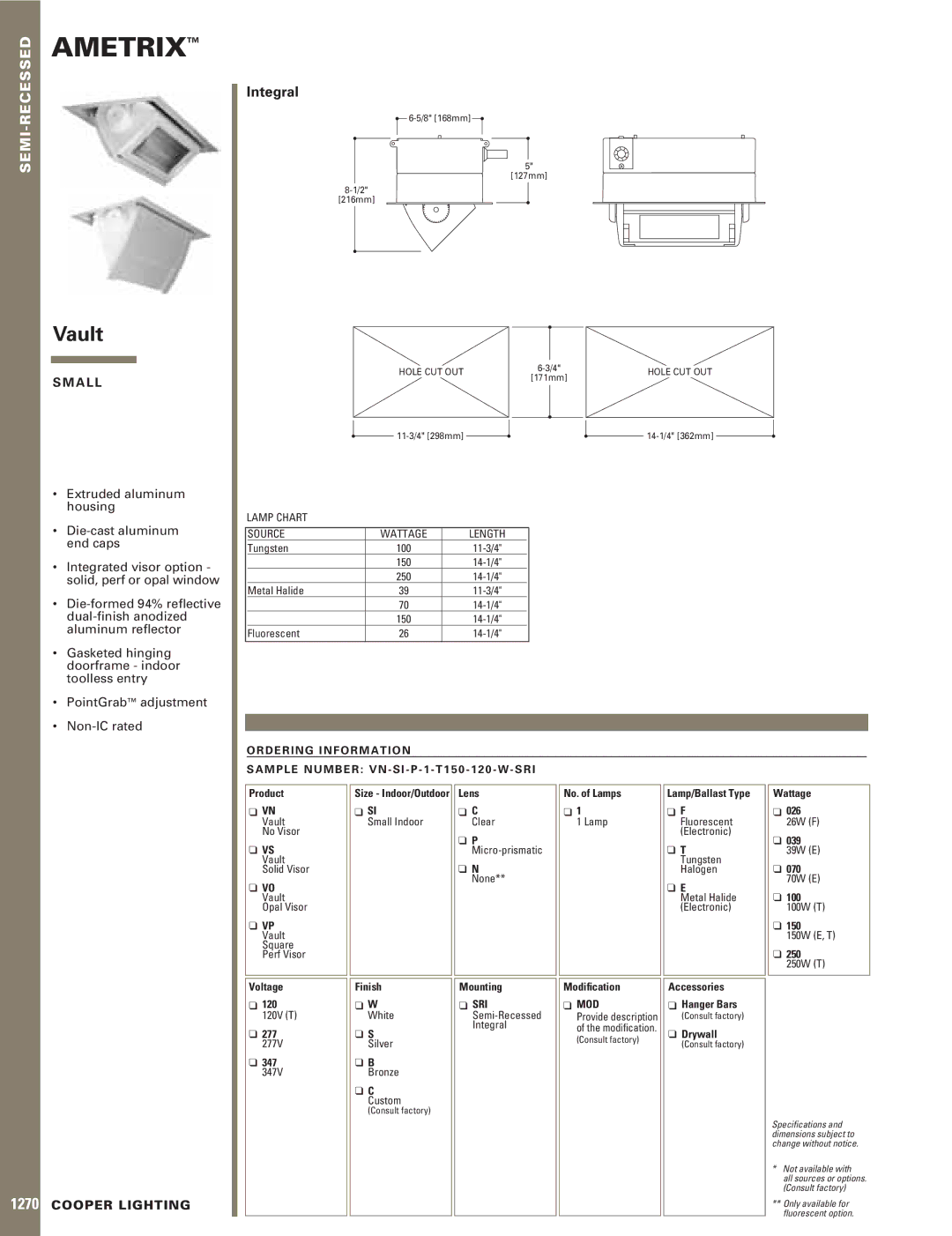

Cooper Lighting 1270 specifications Ametrix, Vault, Semi-Recessed, Integral, S M A L L

SEMI-RECESSED

AMETRIX™

Vault

S M A L L

Integral

6-5/8" [168mm]

5"

[127mm]

8-1/2"

[216mm]

	6-3/4"
HOLE CUT OUT
		[171mm]

11-3/4" [298mm]

HOLE CUT OUT

14-1/4" [362mm]

•Extruded aluminum housing•Die-cast aluminum end caps

•Integrated visor option - solid, perf or opal window

•Die-formed 94% reflective dual-finish anodized aluminum reflector

•Gasketed hinging doorframe - indoor toolless entry

•PointGrab™ adjustment

•Non-IC rated

LAMP CHART

SOURCE	WATTAGE	LENGTH
Tungsten	100	11-3/4"
	150	14-1/4"
	250	14-1/4"
Metal Halide	39	11-3/4"
	70	14-1/4"
	150	14-1/4"
Fluorescent	26	14-1/4"

O R D E R I N G I N F O R M A T I O N

S A M P L E N U M B E R : V N - S I - P - 1 - T 1 5 0 - 1 2 0 - W - S R I

1270

COOPER LIGHTING

Product

❑VN Vault No Visor

❑VS Vault Solid Visor

❑VO Vault Opal Visor

❑VP Vault Square Perf Visor

Voltage

❑120

120V (T)

❑277

277V

❑347

347V

Size - Indoor/Outdoor

❑SI

Small Indoor

Finish

❑W White

❑S Silver

❑B Bronze

❑C Custom

(Consult factory)

Lens

❑C Clear

❑P Micro-prismatic

❑N None**

Mounting

❑SRI Semi-Recessed Integral

No. of Lamps

❑1

1 Lamp

Modification

❑MOD

Provide description of the modification.

(Consult factory)

Lamp/Ballast Type

❑F Fluorescent (Electronic)

❑T Tungsten Halogen

❑E

Metal Halide (Electronic)

Accessories

❑Hanger Bars

(Consult factory)

❑Drywall

(Consult factory)

Wattage

❑026

26W (F)

❑039

39W (E)

❑070

70W (E)

❑100

100W (T)

❑150

150W (E, T)

❑250

250W (T)

Specifications and dimensions subject to change without notice.

*Not available with

all sources or options. (Consult factory)

**Only available for fluorescent option.
