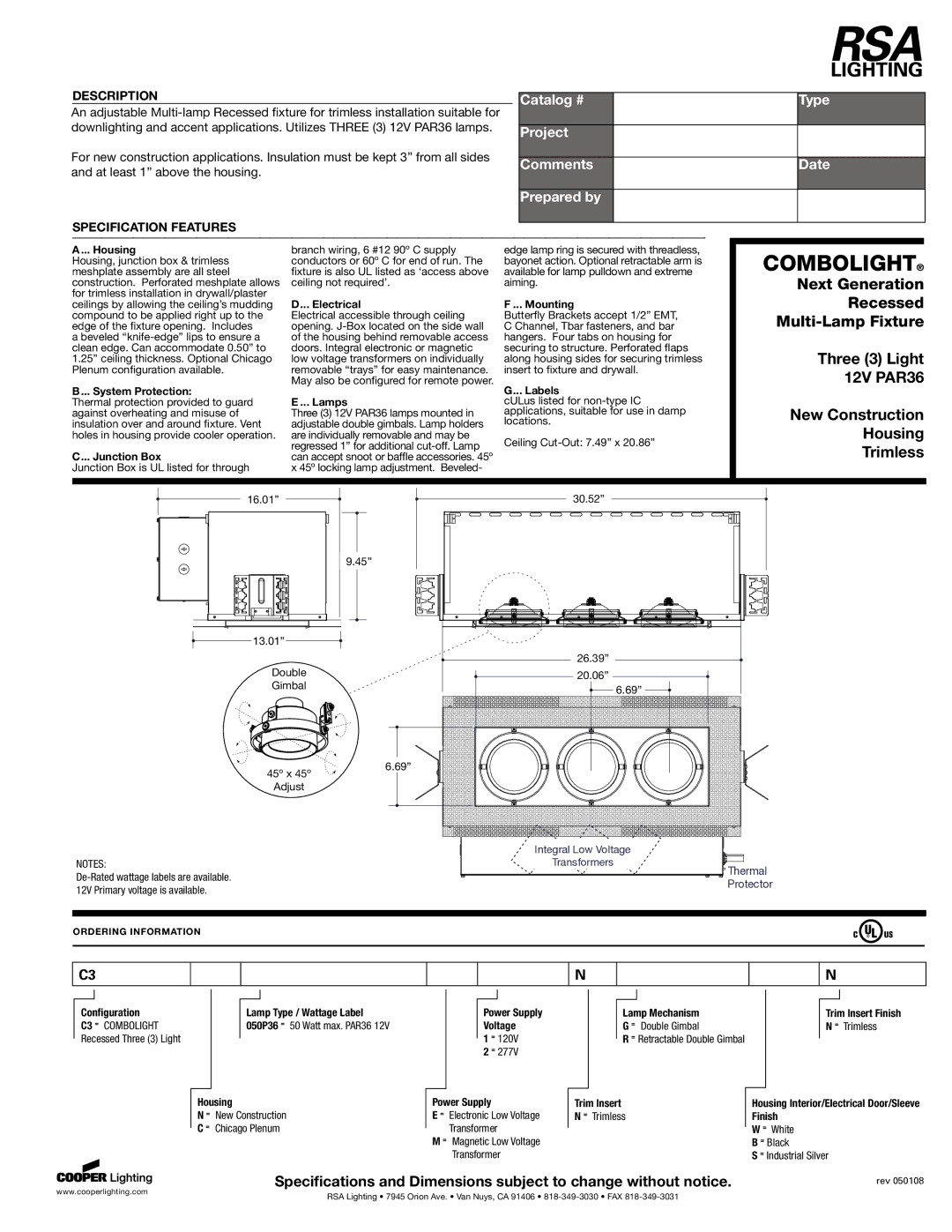

Cooper Lighting 12V PAR36 specifications Combolight, Next Generation, Recessed Multi-LampFixture

DESCRIPTION

An adjustable Multi-lamp Recessed fixture for trimless installation suitable for downlighting and accent applications. Utilizes THREE (3) 12V PAR36 lamps.

For new construction applications. Insulation must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A.... Housing

Housing, junction box & trimless meshplate assembly are all steel construction. Perforated meshplate allows for trimless installation in drywall/plaster

branch wiring, 6 #12 90º C supply	edge lamp ring is secured with threadless,
conductors or 60º C for end of run. The	bayonet action. Optional retractable arm is
fixture is also UL listed as ‘access above	available for lamp pulldown and extreme
ceiling not required’.	aiming.

COMBOLIGHT®

Next Generation

ceilings by allowing the ceiling’s mudding compound to be applied right up to the edge of the fixture opening. Includes

a beveled “knife-edge” lips to ensure a clean edge. Can accommodate 0.50” to 1.25” ceiling thickness. Optional Chicago Plenum configuration available.

B.... System Protection:

Thermal protection provided to guard against overheating and misuse of insulation over and around fixture. Vent holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through

D... Electrical

Electrical accessible through ceiling opening. J-Box located on the side wall of the housing behind removable access doors. Integral electronic or magnetic low voltage transformers on individually removable “trays” for easy maintenance. May also be configured for remote power.

E.... Lamps

Three (3) 12V PAR36 lamps mounted in adjustable double gimbals. Lamp holders are individually removable and may be regressed 1” for additional cut-off. Lamp can accept snoot or baffle accessories. 45º x 45º locking lamp adjustment. Beveled-

F.... Mounting

Butterfly Brackets accept 1/2” EMT, C Channel, Tbar fasteners, and bar hangers. Four tabs on housing for securing to structure. Perforated flaps along housing sides for securing trimless insert to fixture and drywall.

G... Labels

cULus listed for non-type IC applications, suitable for use in damp locations.

Ceiling Cut-Out: 7.49” x 20.86”

Recessed Multi-Lamp Fixture

Three (3) Light 12V PAR36

New Construction

Housing

Trimless

16.01”	30.52”
	9.45”
13.01”
	26.39”
Double	20.06”
Gimbal	6.69”
45º x 45º	6.69”
Adjust
	Integral Low Voltage
NOTES:	Transformers	Thermal
De-Rated wattage labels are available.
		Protector
12V Primary voltage is available.
ORDERING INFORMATION
C3	N	N

Configuration	Lamp Type / Wattage Label
C3 = COMBOLIGHT	050P36 = 50 Watt max. PAR36 12V
Recessed Three (3) Light

Housing

N = New Construction

C = Chicago Plenum

Power Supply

Voltage

1 = 120V

2 = 277V

Power Supply

E = Electronic Low Voltage

Transformer

M = Magnetic Low Voltage

Transformer

Lamp Mechanism

G = Double Gimbal

R = Retractable Double Gimbal

Trim Insert

N = Trimless

Trim Insert Finish

N = Trimless

Housing Interior/Electrical Door/Sleeve Finish

W = White

B = Black

S = Industrial Silver

Specifications and Dimensions subject to change without notice.

rev 050108
