Page 1
Image 1

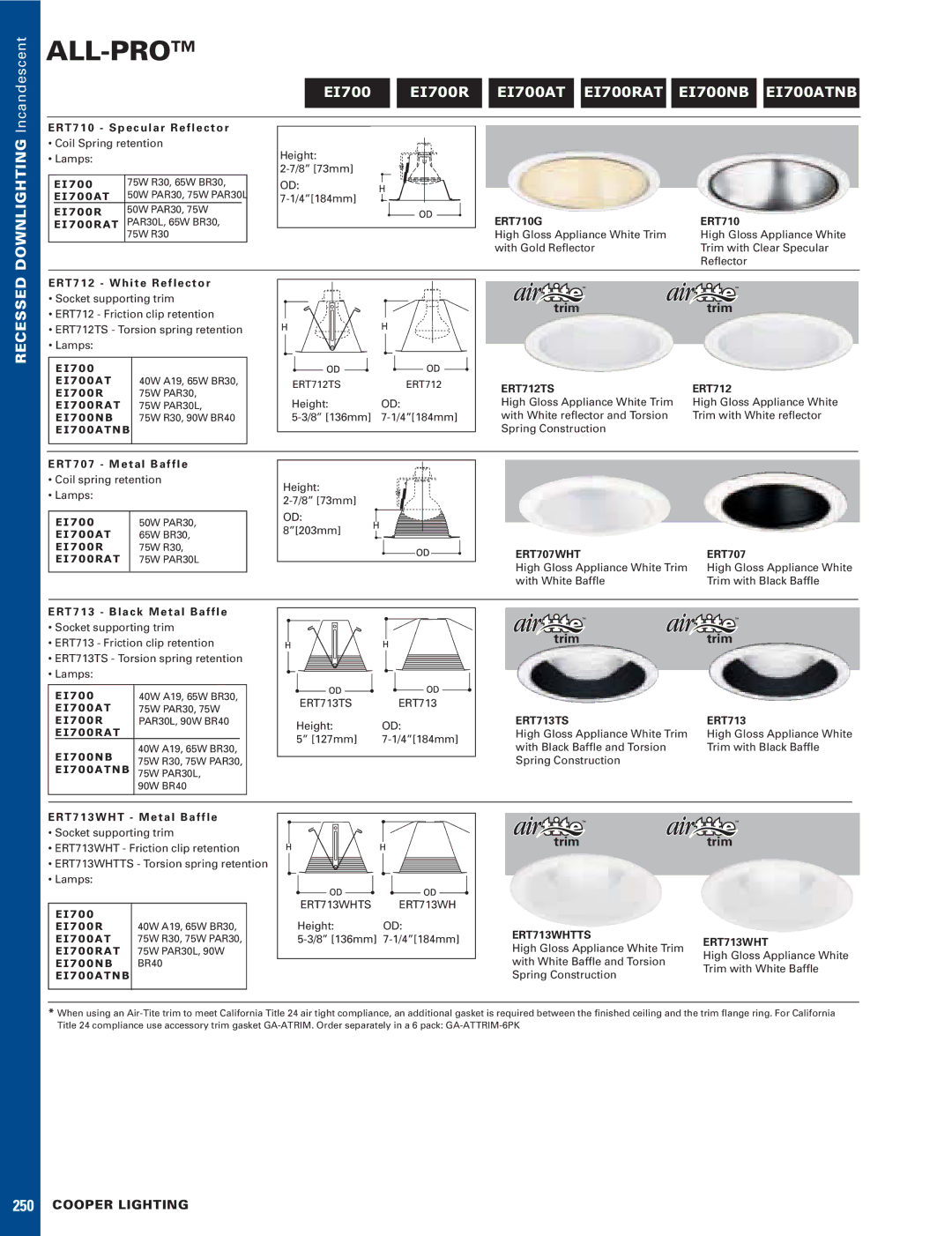

Incandescent

Incandescent

ALL-PRO™

EI700 EI700R EI700AT EI700RAT EI700NB EI700ATNB

DOWNLIGHTING

E R T 7 1 0 - S p e c u l a r R e f l e c t o r

Coil Spring retention

Lamps:



EI700

75W R30, 65W BR30,



EI700AT

50W PAR30, 75W PAR30L



EI700R

50W PAR30, 75W





EI700RAT

PAR30L, 65W BR30,





75W R30

Height:

2-7/8” [73mm]

OD:

7-1/4”[184mm]

ERT710G

High Gloss Appliance White Trim with Gold Reflector

ERT710

High Gloss Appliance White Trim with Clear Specular Reflector

RECESSED

E R T 7 1 2 - W h i t e R e f l e c t o r

Socket supporting trim

ERT712 - Friction clip retention

ERT712TS - Torsion spring retention

Lamps:

EI700

EI700AT

40W A19, 65W BR30,

EI700R

75W PAR30,

EI700RAT

75W PAR30L,

EI700NB

75W R30, 90W BR40

EI700ATNB



ERT712TS

ERT712

Height:

OD:

5-3/8” [136mm]

7-1/4”[184mm]

trim

trim





ERT712TS

ERT712

High Gloss Appliance White Trim

High Gloss Appliance White

with White reflector and Torsion

Trim with White reflector

Spring Construction



E R T 7 0 7 - M e t a l B a f f l e





























• Coil spring retention



Height:



















































• Lamps:

































2-7/8” [73mm]





























































OD:

























EI700

50W PAR30,





























8”[203mm]

























EI700AT

65W BR30,























































EI700R

75W R30,





























EI700RAT

75W PAR30L





















































































































ERT707WHT

ERT707

High Gloss Appliance White Trim

High Gloss Appliance White

with White Baffle

Trim with Black Baffle

E R T 7 1 3 - B l a c k M e t a l B a f f l e

Socket supporting trim

ERT713 - Friction clip retention

ERT713TS - Torsion spring retention

Lamps:



EI700

40W A19, 65W BR30,



EI700AT

75W PAR30, 75W



EI700R

PAR30L, 90W BR40



EI700RAT







EI700NB

40W A19, 65W BR30,



75W R30, 75W PAR30,



EI700ATNB



75W PAR30L,





90W BR40









ERT713TS

ERT713

Height:

OD:

5” [127mm]

7-1/4”[184mm]

trim

trim





ERT713TS

ERT713

High Gloss Appliance White Trim

High Gloss Appliance White

with Black Baffle and Torsion

Trim with Black Baffle

Spring Construction



E R T 7 1 3 W H T - M e t a l B a f f l e

Socket supporting trim

ERT713WHT - Friction clip retention

ERT713WHTTS - Torsion spring retention

Lamps:

EI700

EI700R 40W A19, 65W BR30, EI700AT 75W R30, 75W PAR30, EI700RAT 75W PAR30L, 90W

EI700NB BR40

EI700ATNB

ERT713WHTS

ERT713WH

Height:

OD:

5-3/8” [136mm]

7-1/4”[184mm]

trim

trim





ERT713WHTTS

ERT713WHT

High Gloss Appliance White Trim

High Gloss Appliance White

with White Baffle and Torsion

Trim with White Baffle

Spring Construction



*When using an Air-Tite trim to meet California Title 24 air tight compliance, an additional gasket is required between the finished ceiling and the trim flange ring. For California Title 24 compliance use accessory trim gasket GA-ATRIM. Order separately in a 6 pack: GA-ATTRIM-6PK

250COOPER LIGHTING
