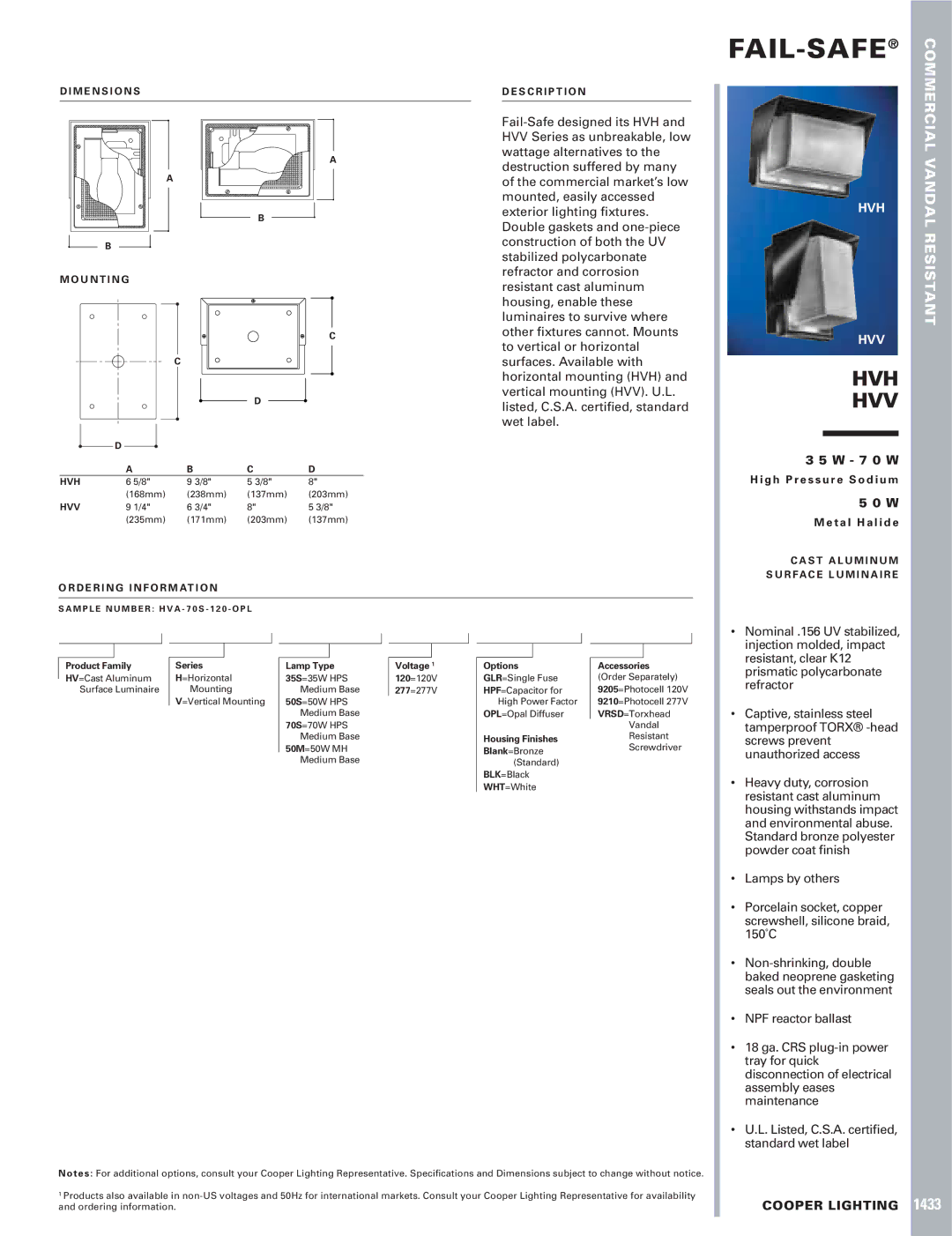

D I M E N S I O N S

A

A

A

BB

B

M O U N T I N G

C

C

			DD
	D
	A	B	C	D
HVH	6 5/8"	9 3/8"	5 3/8"	8"
	(168mm)	(238mm)	(137mm)	(203mm)
HVV	9 1/4"	6 3/4"	8"	5 3/8"

(235mm) (171mm) (203mm) (137mm)

D E S C R I P T I O N

Fail-Safe designed its HVH and HVV Series as unbreakable, low wattage alternatives to the destruction suffered by many of the commercial market’s low mounted, easily accessed exterior lighting fixtures. Double gaskets and one-piece construction of both the UV stabilized polycarbonate refractor and corrosion resistant cast aluminum housing, enable these luminaires to survive where other fixtures cannot. Mounts to vertical or horizontal surfaces. Available with horizontal mounting (HVH) and vertical mounting (HVV). U.L. listed, C.S.A. certified, standard wet label.

FAIL-SAFE®	COMMERCIAL
HVH	VANDAL
	RESISTANT
HVV

HVH

HVV

3 5 W - 7 0 W

H i g h P r e s s u r e S o d i u m

5 0 W

M e t a l H a l i d e

C A S T A L U M I N U M

S U R FA C E L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : H V A - 7 0 S - 1 2 0 - O P L

Product Family

HV=Cast Aluminum Surface Luminaire

Series

H=Horizontal

Mounting

V=Vertical Mounting

Lamp Type

35S=35W HPS

Medium Base

50S=50W HPS

Medium Base

70S=70W HPS

Medium Base

50M=50W MH

Medium Base

Voltage 1

120=120V

277=277V

Options

GLR=Single Fuse HPF=Capacitor for

High Power Factor OPL=Opal Diffuser

Housing Finishes

Blank=Bronze

(Standard) BLK=Black WHT=White

Accessories (Order Separately) 9205=Photocell 120V 9210=Photocell 277V VRSD=Torxhead

Vandal Resistant Screwdriver

•Nominal .156 UV stabilized, injection molded, impact resistant, clear K12 prismatic polycarbonate refractor

•Captive, stainless steel tamperproof TORX® -head screws prevent unauthorized access

•Heavy duty, corrosion resistant cast aluminum housing withstands impact and environmental abuse. Standard bronze polyester powder coat finish

•Lamps by others

•Porcelain socket, copper screwshell, silicone braid, 150˚C

•Non-shrinking, double baked neoprene gasketing seals out the environment

•NPF reactor ballast

•18 ga. CRS plug-in power tray for quick disconnection of electrical assembly eases maintenance

•U.L. Listed, C.S.A. certified, standard wet label

N o t e s : For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.

1Products also available in non-US voltages and 50Hz for international markets. Consult your Cooper Lighting Representative for availability and ordering information.

COOPER LIGHTING 1433
