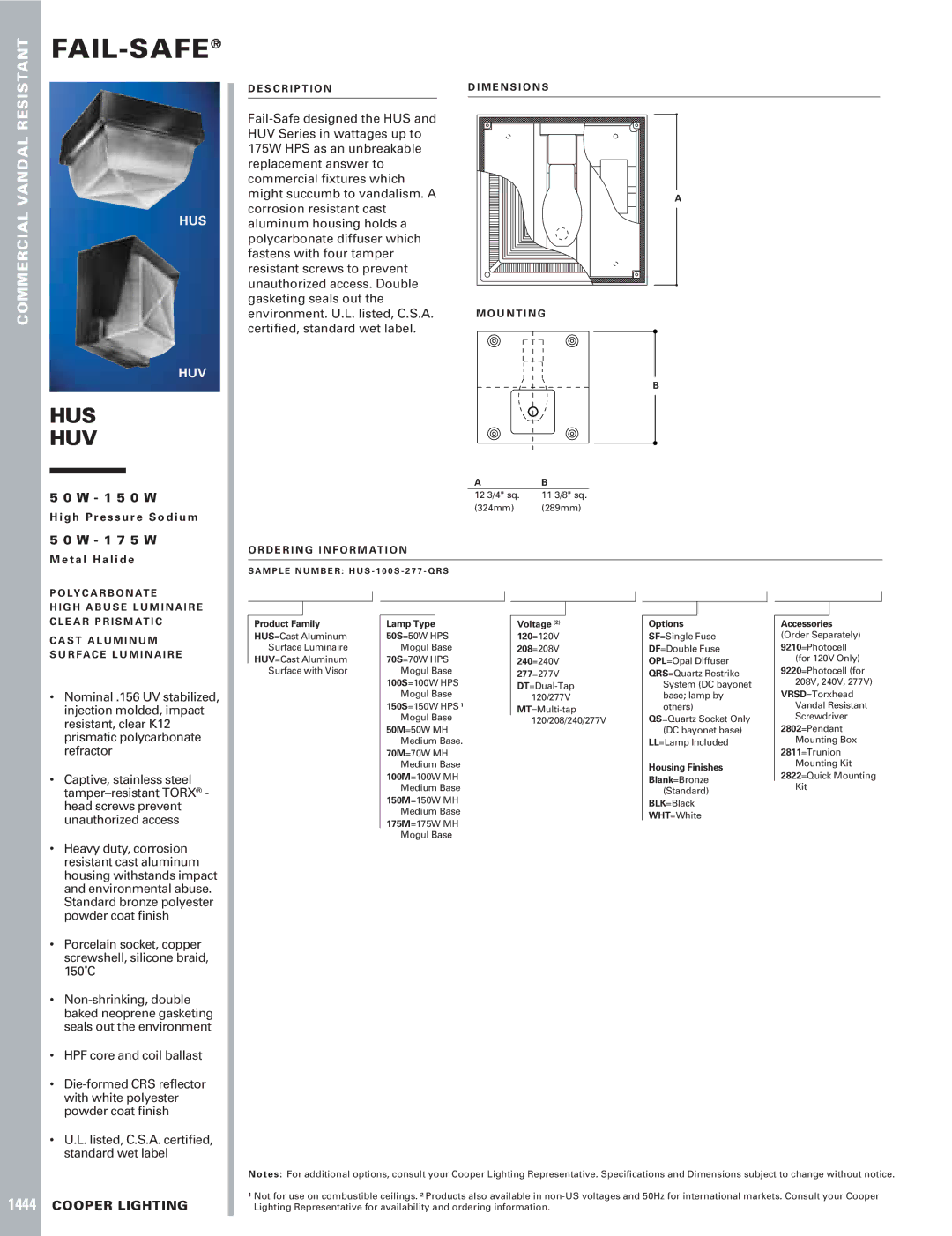

COOPER LIGHTING
FAIL-SAFE®
COMMERCIAL VANDAL RESISTANT
• Nominal .156 UV stabilized,
injection molded, impact
resistant, clear K12
prismatic polycarbonate
refractor
• Captive, stainless steel
tamper–resistant TORX®-
head screws prevent
unauthorized access
• Heavy duty, corrosion
resistant cast aluminum
housing withstands impact
and environmental abuse.
Standard bronze polyester
powder coat finish
• Porcelain socket, copper
screwshell, silicone braid,
150˚C
• Non-shrinking, double
baked neoprene gasketing
seals out the environment
• HPF core and coil ballast
• Die-formed CRS reflector
with white polyester
powder coat finish
• U.L. listed, C.S.A. certified,
standard wet label
DESCRIPTION
Fail-Safe designed the HUS and
HUV Series in wattages up to
175W HPS as an unbreakable
replacement answer to
commercial fixtures which
might succumb to vandalism. A
corrosion resistant cast
aluminum housing holds a
polycarbonate diffuser which
fastens with four tamper
resistant screws to prevent
unauthorized access. Double
gasketing seals out the
environment. U.L. listed, C.S.A.
certified, standard wet label.
B
A
AB
12 3/4" sq. 11 3/8" sq.
(324mm) (289mm)
MOUNTING
A
B
Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.
1Not for use on combustible ceilings. 2Products also available in non-US voltages and 50Hz for international markets. Consult your Cooper
Lighting Representative for availability and ordering information.
ORDERING INFORMATION
SAMPLE NUMBER: HUS-100S-277-QRS
Product Family
HUS=Cast Aluminum
Surface Luminaire
HUV=Cast Aluminum
Surface with Visor
Lamp Type
50S=50W HPS
Mogul Base
70S=70W HPS
Mogul Base
100S=100W HPS
Mogul Base
150S=150W HPS 1
Mogul Base
50M=50W MH
Medium Base.
70M=70W MH
Medium Base
100M=100W MH
Medium Base
150M=150W MH
Medium Base
175M=175W MH
Mogul Base
Voltage (2)
120=120V
208=208V
240=240V
277=277V
DT=Dual-Tap
120/277V
MT=Multi-tap
120/208/240/277V
Options
SF=Single Fuse
DF=Double Fuse
OPL=Opal Diffuser
QRS=Quartz Restrike
System (DC bayonet
base; lamp by
others)
QS=Quartz Socket Only
(DC bayonet base)
LL=Lamp Included
Housing Finishes
Blank=Bronze
(Standard)
BLK=Black
WHT=White
Accessories
(Order Separately)
9210=Photocell
(for 120V Only)
9220=Photocell (for
208V, 240V, 277V)
VRSD=Torxhead
Vandal Resistant
Screwdriver
2802=Pendant
Mounting Box
2811=Trunion
Mounting Kit
2822=Quick Mounting
Kit
DIMENSIONS
HUS
HUV
50W-150W
High Pressure Sodium
50W-175W
Metal Halide
POLYCARBONATE
HIGH ABUSE LUMINAIRE
CLEAR PRISMATIC
CAST ALUMINUM
SURFACE LUMINAIRE
1444
HUV
HUS
