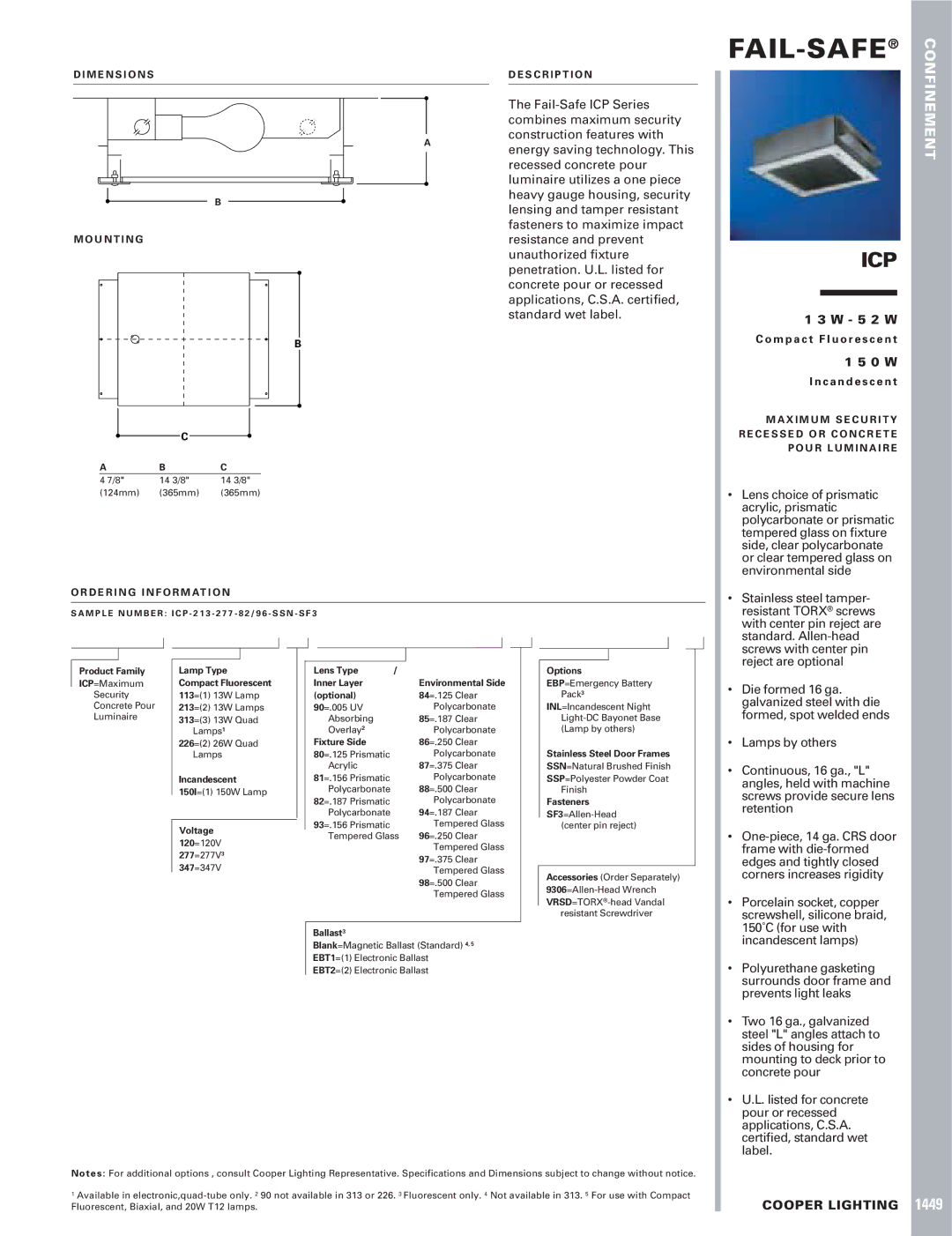

D I M E N S I O N S

BB

M O U N T I N G

AA

D E S C R I P T I O N

The Fail-Safe ICP Series combines maximum security construction features with energy saving technology. This recessed concrete pour luminaire utilizes a one piece heavy gauge housing, security lensing and tamper resistant fasteners to maximize impact resistance and prevent unauthorized fixture penetration. U.L. listed for concrete pour or recessed applications, C.S.A. certified, standard wet label.

FAIL-SAFE®

CONFINEMENT



ICP

1 3 W - 5 2 W

B

C

A

B

C

4 7/8"

14 3/8"

14 3/8"

(124mm)

(365mm)

(365mm)

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : I C P - 2 1 3 - 2 7 7 - 8 2 / 9 6 - S S N - S F 3

C o m p a c t F l u o r e s c e n t

1 5 0 W

I n c a n d e s c e n t

M A X I M U M S E C U R I T Y R E C E S S E D O R C O N C R E T E P O U R L U M I N A I R E

• Lens choice of prismatic

acrylic, prismatic

polycarbonate or prismatic

tempered glass on fixture

side, clear polycarbonate

or clear tempered glass on

environmental side

• Stainless steel tamper-

resistant TORX® screws

with center pin reject are

standard. Allen-head

screws with center pin

reject are optional

Product Family

ICP=Maximum

Security

Concrete Pour

Luminaire

Lamp Type

Compact Fluorescent

113=(1) 13W Lamp

213=(2) 13W Lamps

313=(3) 13W Quad

Lamps1

226=(2) 26W Quad

Lamps

Incandescent

150I=(1) 150W Lamp

Voltage 120=120V 277=277V3 347=347V

Lens Type

/



Inner Layer



Environmental Side

(optional)



84=.125 Clear

90=.005 UV



Polycarbonate

Absorbing



85=.187 Clear

Overlay2



Polycarbonate

Fixture Side



86=.250 Clear

80=.125 Prismatic



Polycarbonate

Acrylic



87=.375 Clear

81=.156 Prismatic



Polycarbonate

Polycarbonate



88=.500 Clear

82=.187 Prismatic



Polycarbonate

Polycarbonate



94=.187 Clear

93=.156 Prismatic



Tempered Glass

Tempered Glass

96=.250 Clear





Tempered Glass

97=.375 Clear

Tempered Glass

98=.500 Clear

Tempered Glass

Ballast3

Blank=Magnetic Ballast (Standard) 4, 5

EBT1=(1) Electronic Ballast

EBT2=(2) Electronic Ballast

Options

EBP=Emergency Battery Pack3

INL=Incandescent Night Light-DC Bayonet Base (Lamp by others)

Stainless Steel Door Frames

SSN=Natural Brushed Finish

SSP=Polyester Powder Coat

Finish

Fasteners

SF3=Allen-Head (center pin reject)

Accessories (Order Separately)

9306=Allen-Head Wrench

VRSD=TORX®-head Vandal

resistant Screwdriver

• Die formed 16 ga.



galvanized steel with die



formed, spot welded ends

Lamps by others

• Continuous, 16 ga., "L"



angles, held with machine



screws provide secure lens



retention

One-piece, 14 ga. CRS door



frame with die-formed



edges and tightly closed



corners increases rigidity

Porcelain socket, copper



screwshell, silicone braid,



150˚C (for use with



incandescent lamps)

Polyurethane gasketing



surrounds door frame and



prevents light leaks

• Two 16 ga., galvanized



steel "L" angles attach to



sides of housing for



mounting to deck prior to



concrete pour

• U.L. listed for concrete



pour or recessed



applications, C.S.A.



certified, standard wet



label.

Notes: For additional options , consult Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.

1Available in electronic,quad-tube only. 2 90 not available in 313 or 226. 3 Fluorescent only. 4 Not available in 313. 5 For use with Compact Fluorescent, Biaxial, and 20W T12 lamps.

COOPER LIGHTING 1449

Page 1
