D I M E N S I O N S

D E S C R I P T I O N



Fail~Safe’s MPWA series



combines a multi-function, wall



mounted luminaire with the



architectural styling of today’s



healthcare environment.



Through innovative features,



the MPWA accommodates for



multiple applications



throughout the healthcare



environment while offering an



appealing and highly styled

M O U N T I N G

design for all architectural



tastes. The MPWA luminaire



has been designed with the



patient and healthcare



professional in mind.

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : M P W A - 2 / 2 3 2 - 1 2 0 - E B 8 3 - E X L L - P S 4

FAIL-SAFE®

MEDICAL/TASK&





MPWA

UNDERCABINET















5 1 W – 2 1 6 W



F l u o r e s c e n t



A R C H I T E C T U R A L



H E A LT H C A R E



WA L L M O U N T E D





L U M I N A I R E



• Up light: .125" thick,

prismatic K12 pattern,

acrylic lens is standard;

Down light: .125" thick,

contoured drape formed,

prismatic K12 pattern,

acrylic lens is standard

Series

MPWA = Medical

Patient

Wall

Architectural

Lamp Type

T5HO

24" Nom.

Fluorescents

Length

1/239=(3) 39W

T8 Fluorescents

Lamps

1 Up, 2

1/217=(3) 17W

Down

Lamps

2/239=(4) 39W

1 Up, 2

Lamps

Down

2 Up, 2

2/217=(4) 17W

Down

Lamps

48" Nom.

2 Up, 2

Down

Length

T5HO

T8 Fluorescents

1/232=(3) 32W

Fluorescents

Lamps

1/224=(3) 24W

1 Up, 2

Lamps

Down

1 Up, 2

2/232=(4) 32W

Down

Lamps

2/224=(4) 24W

2 Up, 2

Lamps

Down

2 Up, 2



Down

T5HO

36" Nom.

Fluorescents

1/254=(3) 54W

Length

Lamps



T8 Fluorescents

1 Up, 2

1/225=(3) 25W

Down

Lamps

2/254=(4) 54W

1 Up, 2

Lamps

Down

2 Up, 2

2/225=(4) 25W

Down

Lamps



2 Up, 2



Down



Voltage

120=120V

277=277V

347=347V UNV=120V

through 277V

Ballast

3Electronic Ballasts are Standard

EB83=T8

EB53=T5

LEOC8=Magnetic energy savings ballast (T8 only, min. 3 per fixture) 1

Exam Light

EXLR=Exam Light,

Switch Right Side

Mounted Facing

Unit.

EXLL=Exam Light,

Switch Left Side

Mounted Facing

Unit.

Switching Control

Options

PICK ONE BELOW

or (if no switching option is specified, fixture ships with leads left unwired for switch wiring completed in field)

PS4=4 position pull chain 2

PS1D=2 position pull chain (controls bottom lamp only, upper lamps on separate circuit) 2

LVCP=Low voltage controller, patient controlled (patient controls all lamps) 1

LVCF=Low voltage controller, facility controlled as needed 1

Options

EBP=Emergency battery pack 1 (no red, yellow, or green charge light will be provided)

FNL=Fluorescent Night Light, 2-pin (G23 Base), 7 or 9w twin tube (Lamps by others).

GCO=Grounded Convenience Outlet, right side mounted facing unit 2

(Non Hospital Grade Only) GCOL=Grounded Convenience

Outlet, left side mounted facing unit 2

GLR=Fuse and holder

NRLR=White LED Nurse Chart Reading Light, right side mounted facing unit 2

NRLL=White LED Nurse Chart Reading Light, left side mounted facing unit 2

RIF=Radio Interference Filter. For use with T8 magnetic ballast only (1 per ballast) 1

SFP=Machine Screws, Philips Head Natural Stainless Steel

SF1=Tamper-proof Torx™-Head Fasteners

Finish Options

(If not specified, fixture ships with standard high gloss white finish) MF=Metallic Finish

DP=Dark Platinum

IH=Almond Finish

Custom Colors are available (specify or supply sample, requires a flat fee, consult customer service)

SSN=Stainless Steel Natural (brushed finish)

SSP=Stainless Steel Painted (Standard high gloss white or specify finish)

(i.e. SSP-DP)

Nickel-plated thumbscrews

are standard (requires no

tools to remove lens

assembly)

• Housing is 18 gauge, die-

formed, cold rolled steel

with seam-welded ends

• MPWA uses T8 Linear

Fluorescent or T5 HO

Linear Fluorescent

• Ballast Options include T8

Electronic Instant Start, T5

Electronic Programmed

Start and T8 Magnetic-HPF

• High gloss white polyester

powder coat finish is

standard on exterior

housing; interior reflector is

high reflectance white

• UL/CUL Listed for Damp

Locations

Notes: For additional options, consult your Cooper Lighting Representative.

Special Claims: When mounting, installer must verify fixture weight in selecting proper anchoring; when not anchoring directly to stud. Refer to installation instructions.

The depicted luminaire is not rated for hazardous locations or adverse environments. Illustrations and photographs depicted in this literature are representative examples only. Consult the appropriate certified and licensed lighting engineering and installation professionals for site-specific applications of products and codes.

Specifications and dimensions subject to change without notice.

1Due to internal size limitations, some configurations and options are not available with other options. Consult customer service. 2 120V only

Accessories (Order Separately)

MBC=Momentary button cord switch. May be used with LVCP or LVCF options to control lamps. (See Switching Controls).

VRSD=TORX® -Head Vandal Resistant Screwdriver

COOPER LIGHTING 1493

Page 1

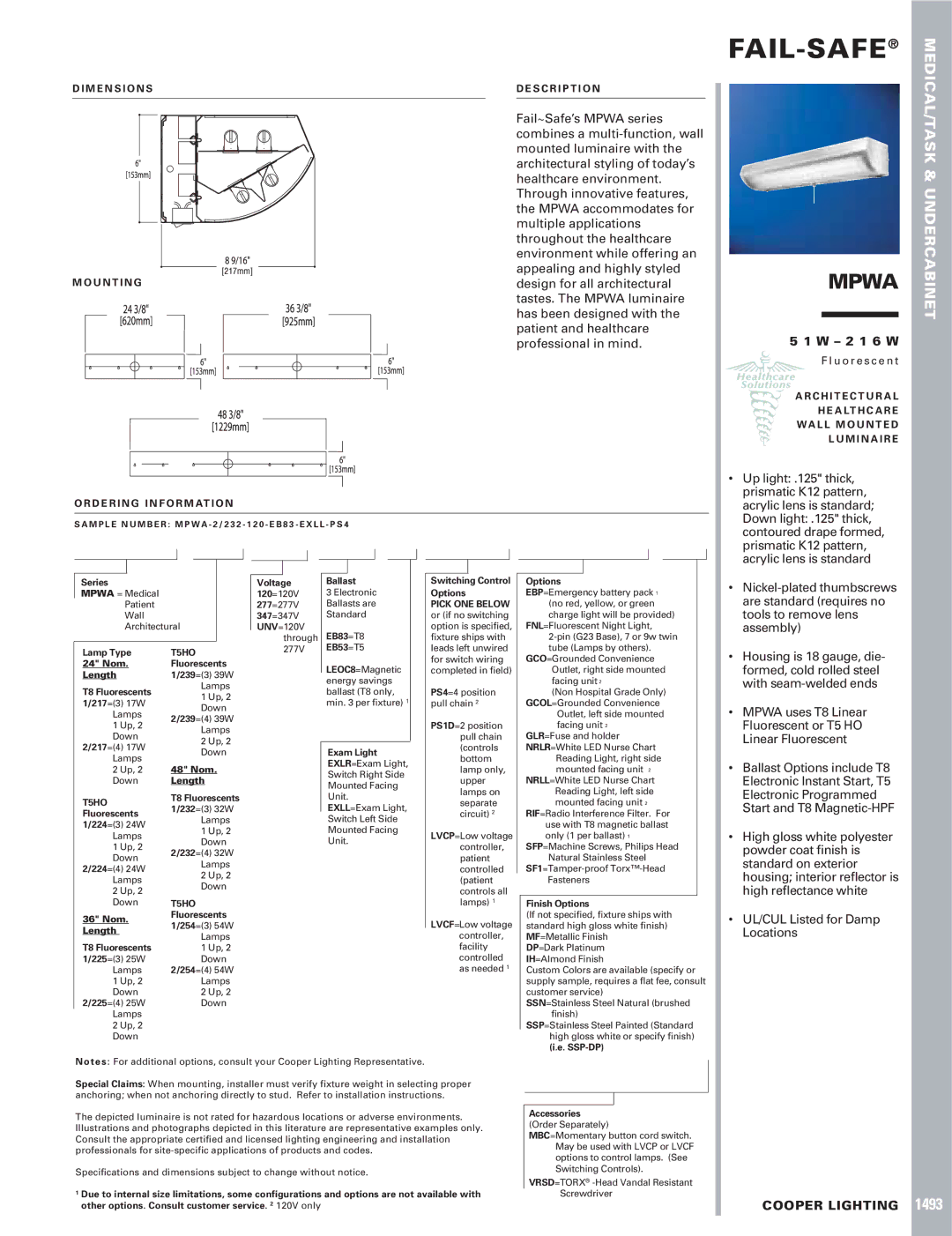

Image 1
