DESCRIPTION
"The Europa" embodies the highest attention to architectural design and detail as well as lighting performance. This luminaire creates a balanced, visually comfortable environment. Perforated metal side panels facilitate a soft "glow", a parabolic louver controls the independent downlight component, and an articulated joiner provides for an elegant continuous arrangement of luminaries. This truly versatile direct/indirect luminaire is designed to provide three distinct lighting distributions...Indirect, Direct, and Direct/Indirect...by the mere separate switching of the single lamp direct component and the two lamp indirect component.
SPECIFICATION FEATURES
Catalog #
ProjectComments
Prepared byNEO-RAY
TypeDateParabolic,
Aluminum.
C ... Electrical120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Durable, low gloss, white, powder coated acrylic finish.
MountingPendant: Single stem (standard);
single cable. Canopy: 5" diameter cover (standard).
A | B | C | D |
|
|
| 18" |
|
| S | [457mm] |
|
| MIN. | |
|
|
| |
4" |
|
|
|
[102mm] |
|
|
|
|
|
| |
|
|
| [32mm] |
|
| ||
| 12" [305mm] |
| |
S = Slim Line Ballast only.
Europa
16-DIP
2 & 3T8
2 & 3T5
2 & 3T5HO
SUSPENDED
INDIRECT/DIRECT

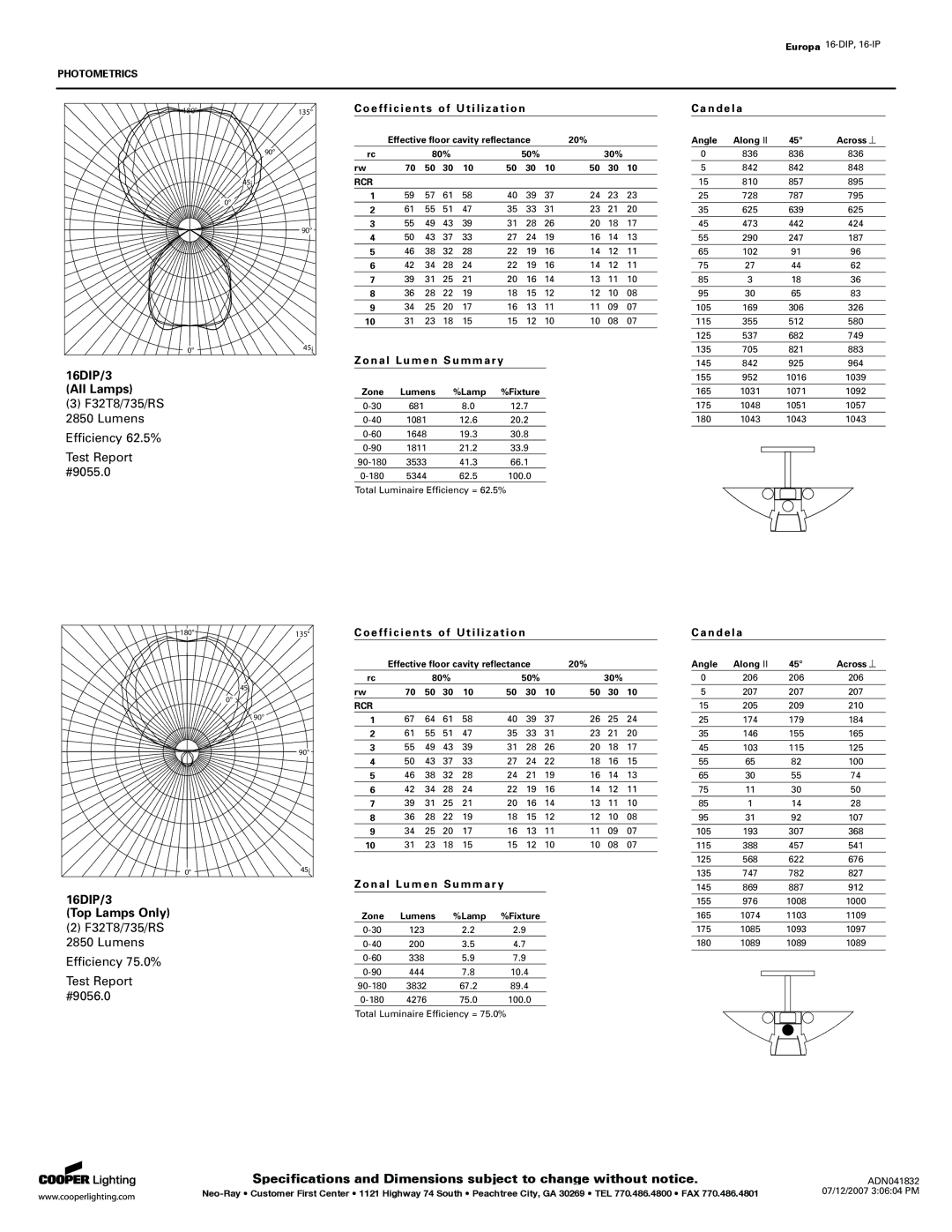

Light Distribution
Indirect - 66.1%
Direct - 33.9%
Perforated Patterns
Round Hole (Standard)
S - Slotted
ORDERING INFORMATION
Sample Number:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Series |
|
|
| Light Output |
| Number of Lamps |
|
| Pendant | |||||||||||||||
| 16= Europa |
|
|
| I= Indirect |
| 2= 2 Lamps |
|
| SC= Single Cable | |||||||||||||||
|
|
|
|
|
|
|
| DI= Direct/Indirect |
| 3= 3 Lamps |
|
| ST= Single Stem1 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| Mounting |
| Lamp Type |
|
| Run Length | ||||||||||||
|
|
|
|
|
|
|
| P= Pendant |
| T8= T8 |
|
|
| Overall Nominal Run | |||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
| T5= T5 |
|
|
| Length __ ft. | ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
| T5HO= T5HO |
|
|
|
|
|
|
|
|
|
| ||
Notes: 1 Available with 7° or earthquake 45° swivel canopy assembly. |
|
|
|
|
|
|
|
|
|
| |||||||||||||||
2Not all options available. Please consult your Cooper Lighting Representative for availability.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage 2 |
|
| Switching Options | ||||||||
1= 120V |
|
| SI= Single Switching | ||||||||
2= 277V |
|
| DU= Double Switching | ||||||||
3= 347V |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Ballast
EB= Electronic Ballast
DB= Dimming Ballast
Perforation
SP= Slotted
RP= Round
BP= None
Emergency
EM= Emergency Pack
Fusing
GLR= GLR GMF= GMF
Specifications and Dimensions subject to change without notice. | ADN041832 |
Consult your representative for additional options and finishes. | 07/12/2007 3:06:04 PM |
