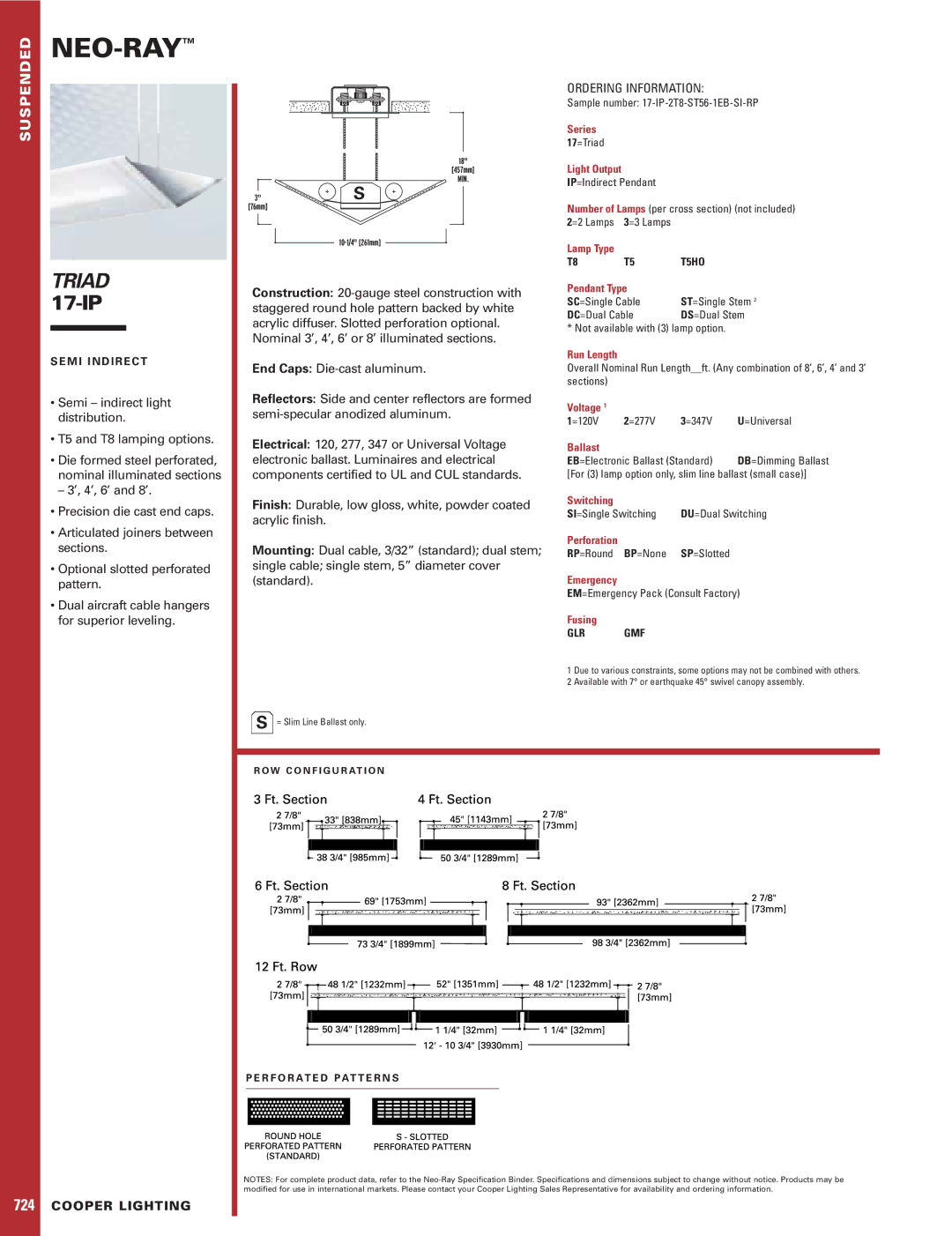

SUSPENDED

NEO-RAY



TRIAD 17-IP

S E M I I N D I R E C T

Semi – indirect light distribution.

T5 and T8 lamping options.

Die formed steel perforated, nominal illuminated sections

– 3’, 4’, 6’ and 8’.

Precision die cast end caps.

Articulated joiners between sections.

Optional slotted perforated pattern.

Dual aircraft cable hangers for superior leveling.

18"

[457mm]

MIN.

3"S [76mm]

10-1/4" [261mm]

Construction: 20-gauge steel construction with staggered round hole pattern backed by white acrylic diffuser. Slotted perforation optional. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

End Caps: Die-cast aluminum.

Reflectors: Side and center reflectors are formed semi-specular anodized aluminum.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Luminaires and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Dual cable, 3/32” (standard); dual stem; single cable; single stem, 5” diameter cover (standard).

ORDERING INFORMATION:

Sample number: 17-IP-2T8-ST56-1EB-SI-RP

Series 17=Triad

Light Output

IP=Indirect Pendant

Number of Lamps (per cross section) (not included)

2=2 Lamps

3=3 Lamps



Lamp Type





T8

T5

T5HO

Pendant Type



SC=Single Cable

ST=Single Stem 2

DC=Dual Cable

DS=Dual Stem

* Not available with (3) lamp option.

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1

1=120V 2=277V 3=347V U=Universal

Ballast

EB=Electronic Ballast (Standard) DB=Dimming Ballast [For (3) lamp option only, slim line ballast (small case)]

Switching





SI=Single Switching

DU=Dual Switching

Perforation



RP=Round

BP=None

SP=Slotted

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

724 COOPER LIGHTING

1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.

S= Slim Line Ballast only.

R O W C O N F I G U R AT I O N

P E R F O R AT E D PAT T E R N S

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

Page 1
Image 1
Cooper Lighting specifications Neo-Ray, Triad 17-IP, Ordering Information, Cooper Lighting

17-IP specifications

Cooper Lighting’s 17-IP is a cutting-edge lighting solution designed for both indoor and outdoor applications, specifically catering to the needs of various industries. With a focus on efficiency, durability, and versatility, the 17-IP stands out as a reliable choice for contractors, architects, and facility managers.

One of the primary features of the 17-IP is its robust design, engineered to withstand harsh environmental conditions. The luminaire is crafted with high-quality materials that provide excellent resistance to corrosion and impact, making it an ideal option for areas exposed to moisture, dust, and temperature fluctuations. This durability ensures that the lighting solution remains functional and aesthetically pleasing even after years of use.

The 17-IP employs advanced LED technology, which not only significantly reduces energy consumption but also extends the lifespan of the lighting fixture. With an impressive efficacy rate, the LEDs provide bright, uniform illumination with minimal heat output. This makes the 17-IP both eco-friendly and cost-effective, as lower energy usage translates to reduced operating costs over time.

Another significant aspect of the 17-IP is its adaptability. The fixture can be configured in various ways to accommodate different lighting needs, whether it’s for general illumination, accent lighting, or security applications. Its adjustable mounting options allow for easy installation in a wide range of settings, from warehouses and manufacturing plants to outdoor spaces like parking lots and pathways.

A key characteristic of the 17-IP is its superior light distribution. The luminaire features an innovative optical design that maximizes light output while minimizing glare. This ensures a comfortable visual environment for all users, enhancing safety and productivity, particularly in workspaces.

In terms of technology, the 17-IP is compatible with smart lighting systems, allowing for integration with building management systems and remote control. This feature provides users with the ability to monitor and adjust lighting levels based on occupancy, time of day, and specific tasks, ensuring optimal efficiency and adaptability.

In conclusion, Cooper Lighting’s 17-IP is a powerful and versatile lighting solution that combines durability, energy efficiency, and advanced technology. With its robust design, customizable features, and smart capabilities, the 17-IP is an excellent choice for those seeking reliable lighting options for a variety of environments. Whether it’s enhancing workplace productivity or improving outdoor safety, the 17-IP delivers exceptional performance and versatility.
