Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES
07/19/2007 5:04:11 PM
Consult your representative for additional options and finishes.
ADE071099

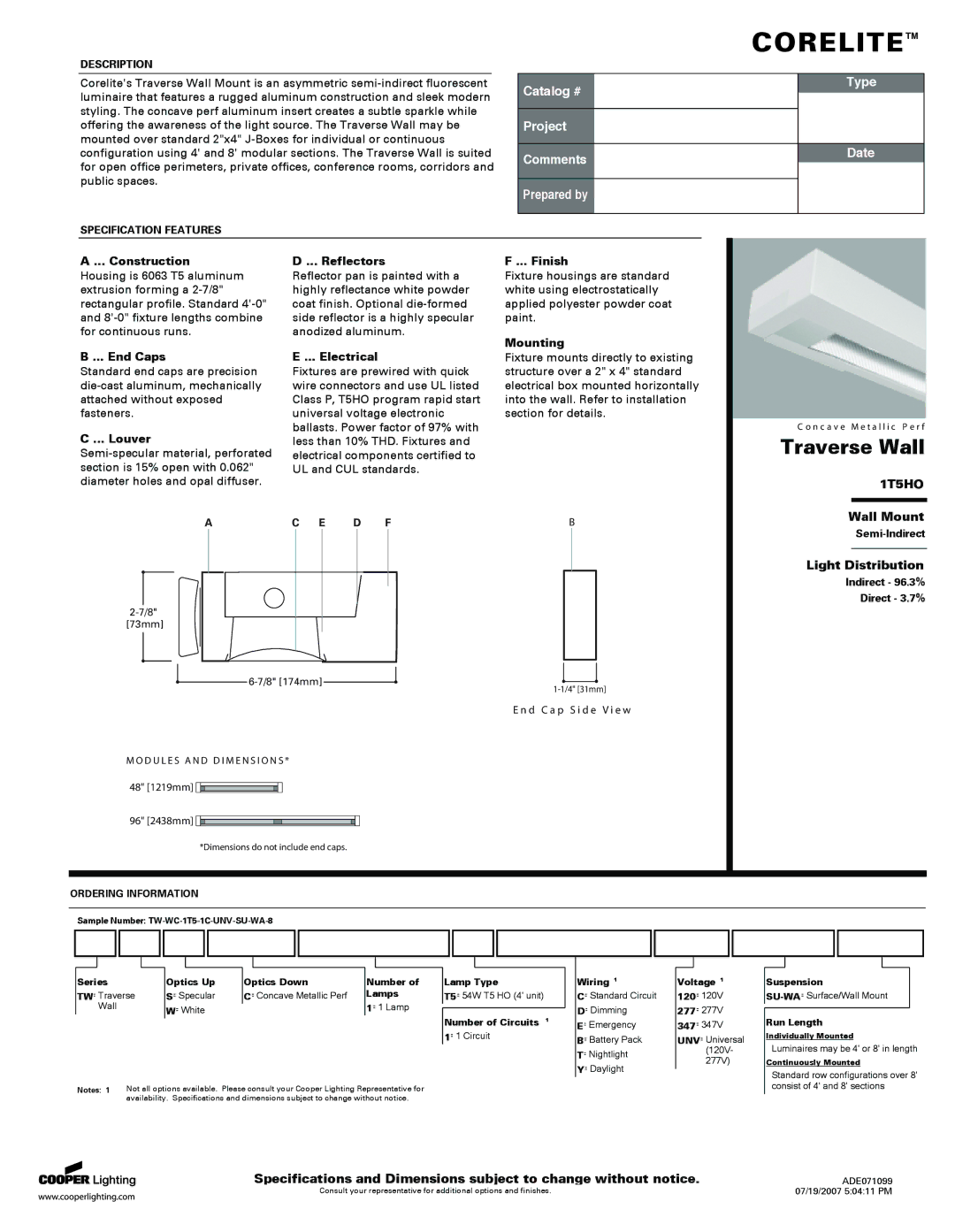

DESCRIPTION
Corelite's Traverse Wall Mount is an asymmetric semi-indirect fluorescent
luminaire that features a rugged aluminum construction and sleek modern
styling. The concave perf aluminum insert creates a subtle sparkle while
offering the awareness of the light source. The Traverse Wall may be
mounted over standard 2"x4" J-Boxes for individual or continuous
configuration using 4' and 8' modular sections. The Traverse Wall is suited
for open office perimeters, private offices, conference rooms, corridors and
public spaces.
A ... Construction
Housing is 6063 T5 aluminum
extrusion forming a 2-7/8"
rectangular profile. Standard 4'-0"
and 8'-0" fixture lengths combine
for continuous runs.
B ... End Caps
Standard end caps are precision
die-cast aluminum, mechanically
attached without exposed
fasteners.
C ... Louver
Semi-specular material, perforated
section is 15% open with 0.062"
diameter holes and opal diffuser.
D ... Reflectors
Reflector pan is painted with a
highly reflectance white powder
coat finish. Optional die-formed
side reflector is a highly specular
anodized aluminum.
E ... Electrical
Fixtures are prewired with quick
wire connectors and use UL listed
Class P, T5HO program rapid start
universal voltage electronic
ballasts. Power factor of 97% with
less than 10% THD. Fixtures and
electrical components certified to
UL and CUL standards.
F ... Finish
Fixture housings are standard
white using electrostatically
applied polyester powder coat
paint.
Mounting
Fixture mounts directly to existing
structure over a 2" x 4" standard
electrical box mounted horizontally
into the wall. Refer to installation
section for details.

Traverse Wall

1T5HO
Wall Mount
Semi-Indirect

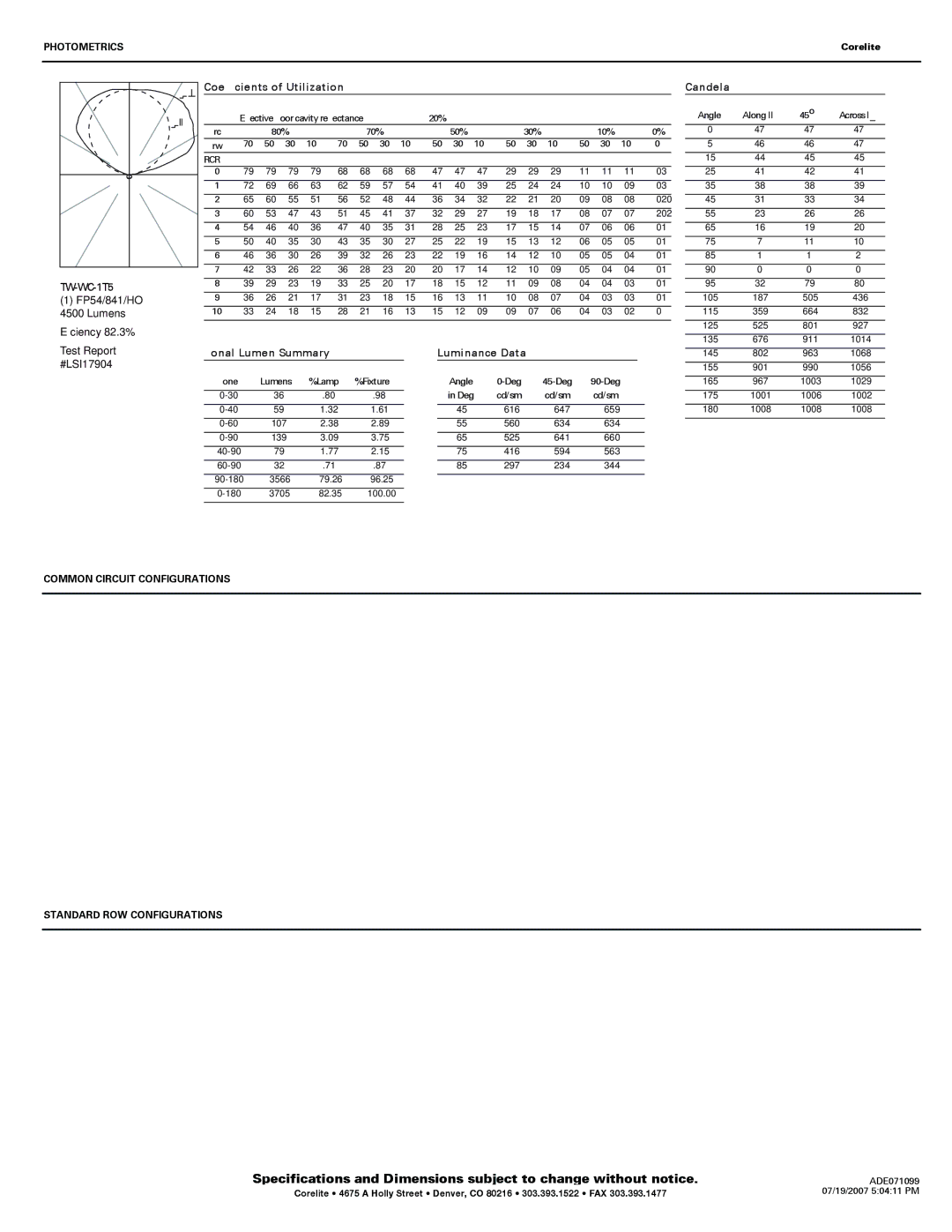

Light Distribution
Indirect - 96.3%
Direct - 3.7%
ORDERING INFORMATION
Sample Number: TW-WC-1T5-1C-UNV-SU-WA-8
Wiring
1
C
Standard Circuit
=
D
Dimming
=
E
Emergency
=
B
Battery Pack
=
T
Nightlight
=
Y
Daylight
=
Lamp Type
T5
54W T5 HO (4' unit)
=
Suspension
SU-WA
Surface/Wall Mount
=
Voltage
1
120
120V
=
277
277V
=
347
347V
=
UNV
Universal
(120V-
277V)
=
Optics Up
S
Specular
=
W
White
=
Series
TW
Traverse
Wall
=
Optics Down
C
Concave Metallic Perf
=
Number of
Lamps
1
1 Lamp
=
Run Length
Individually Mounted
Luminaires may be 4' or 8' in length
Continuously Mounted
Standard row configurations over 8'
consist of 4' and 8' sections
Number of Circuits
1
1
1 Circuit
=
1
Not all options available. Please consult your Cooper Lighting Representative for
availability. Specifications and dimensions subject to change without notice.
Notes:
48" [1219mm]
96" [2438mm]
MODULES AND DIMENSIONS*
*Dimensions do not include end caps.
2-7/8"
[73mm]
6-7/8" [174mm]
A DEC F
1-1/4" [31mm]
B
End Cap Side View
Conca ve Metallic Perf
CORELITE
