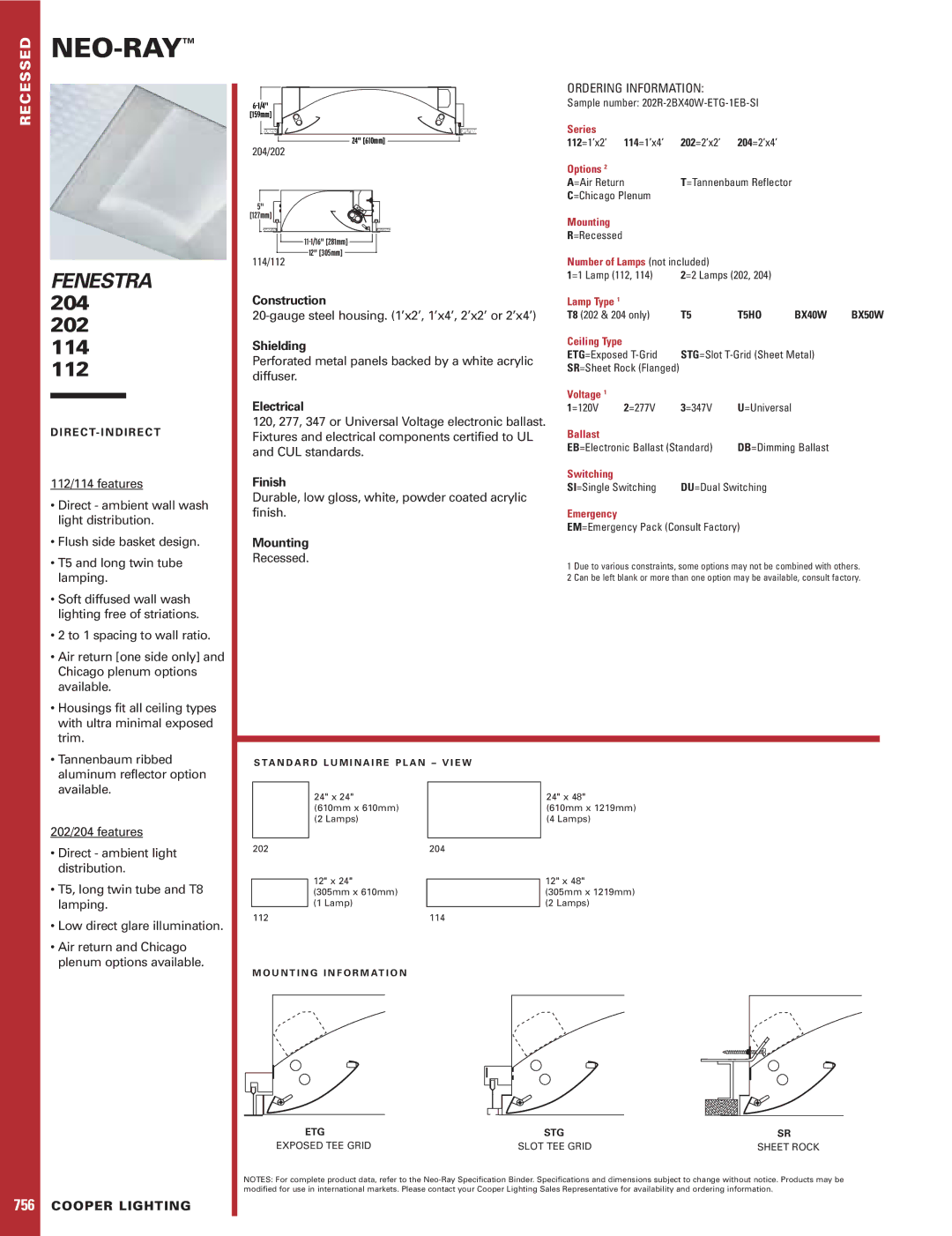

RECESSED NEO-RAY™

FENESTRA 204 202 114 112

D I R E C T- I N D I R E C T

112/114 features

• Direct - ambient wall wash

light distribution.

6-1/4" [159mm]

24" [610mm]

204/202

5"

[127mm]

11-1/16" [281mm] 12" [305mm]

114/112

Construction

20-gauge steel housing. (1’x2’, 1’x4’, 2’x2’ or 2’x4’)

Shielding

Perforated metal panels backed by a white acrylic diffuser.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

ORDERING INFORMATION:

Sample number: 202R-2BX40W-ETG-1EB-SI

Series
112=1’x2’ 114=1’x4’	202=2’x2’	204=2’x4’
Options 2
A=Air Return	T=Tannenbaum Reflector
C=Chicago Plenum
Mounting
R=Recessed
Number of Lamps (not included)
1=1 Lamp (112, 114)	2=2 Lamps (202, 204)
Lamp Type 1
T8 (202 & 204 only)	T5	T5HO	BX40W	BX50W

Ceiling Type

ETG=Exposed T-Grid STG=Slot T-Grid (Sheet Metal) SR=Sheet Rock (Flanged)

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast
Switching
SI=Single Switching		DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

• Flush side basket design.

• T5 and long twin tube

lamping.

• Soft diffused wall wash

lighting free of striations.

• 2 to 1 spacing to wall ratio.

• Air return [one side only] and

Chicago plenum options

available.

• Housings fit all ceiling types

with ultra minimal exposed

trim.

• Tannenbaum ribbed

Mounting

Recessed.

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

aluminum reflector option

available.

202/204 features

•Direct - ambient light distribution.

•T5, long twin tube and T8 lamping.

•Low direct glare illumination.

•Air return and Chicago plenum options available.

S T A N D A R D L U M I N A I R E P L A N – V I E W

	24" x 24"
	(610mm x 610mm)
	(2 Lamps)
202	204
	12" x 24"
	(305mm x 610mm)
	(1 Lamp)
112	114

24" x 48"

(610mm x 1219mm) (4 Lamps)

12" x 48"

(305mm x 1219mm) (2 Lamps)

756 COOPER LIGHTING

M O U N T I N G I N F O R M AT I O N

ETG	STG	SR
EXPOSED TEE GRID	SLOT TEE GRID	SHEET ROCK

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
