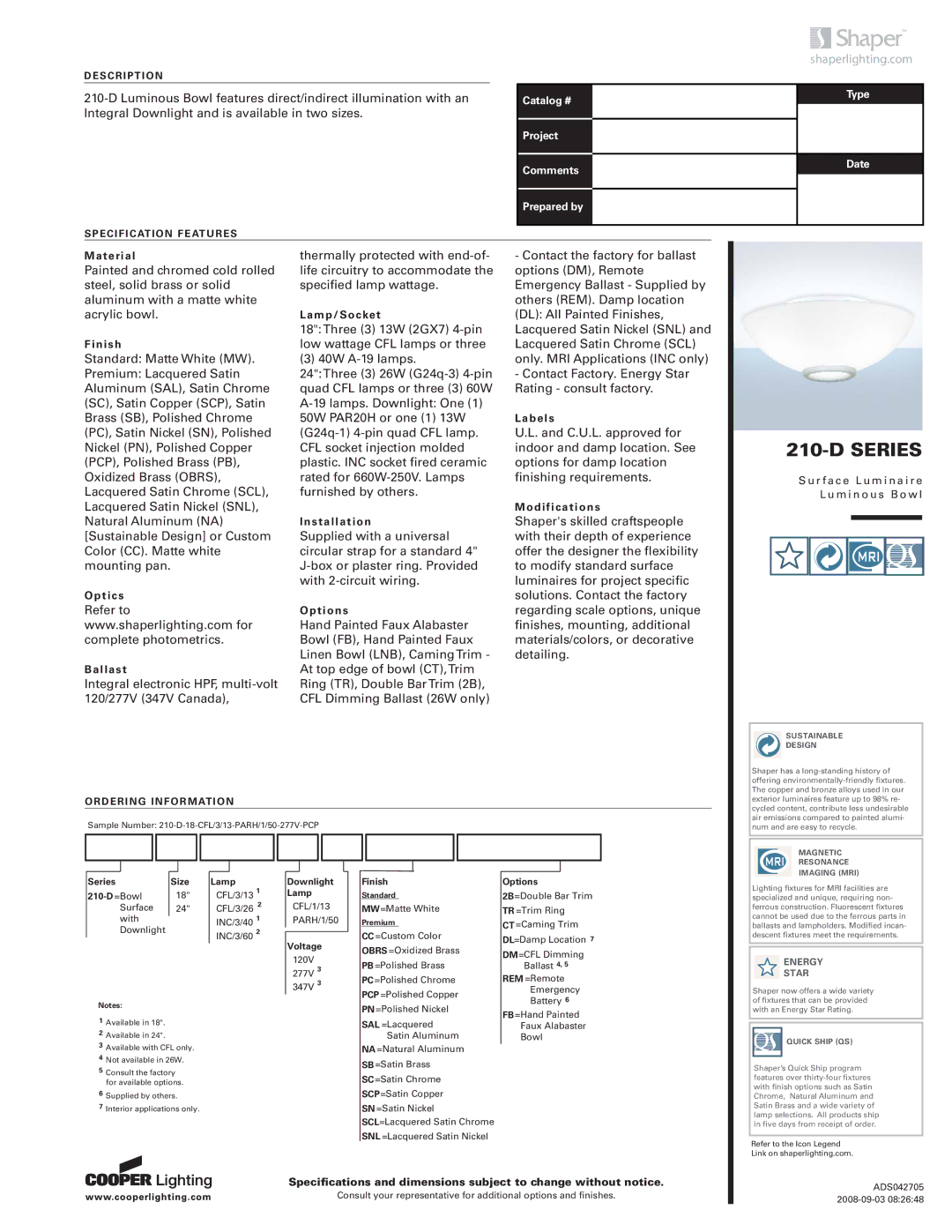

DESCRIPTION

210-D Luminous Bowl features direct/indirect illumination with an Integral Downlight and is available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted and chromed cold rolled steel, solid brass or solid aluminum with a matte white acrylic bowl.

Finish

Standard: Matte White (MW).

Premium: Lacquered Satin Aluminum (SAL), Satin Chrome (SC), Satin Copper (SCP), Satin Brass (SB), Polished Chrome (PC), Satin Nickel (SN), Polished Nickel (PN), Polished Copper (PCP), Polished Brass (PB), Oxidized Brass (OBRS), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL), Natural Aluminum (NA) [Sustainable Design] or Custom Color (CC). Matte white mounting pan.

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada),

thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

18":Three (3) 13W (2GX7) 4-pin low wattage CFL lamps or three

(3) 40W A-19 lamps.

24":Three (3) 26W (G24q-3) 4-pin quad CFL lamps or three (3) 60W A-19 lamps. Downlight: One (1)

50W PAR20H or one (1) 13W (G24q-1) 4-pin quad CFL lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring. Provided with 2-circuit wiring.

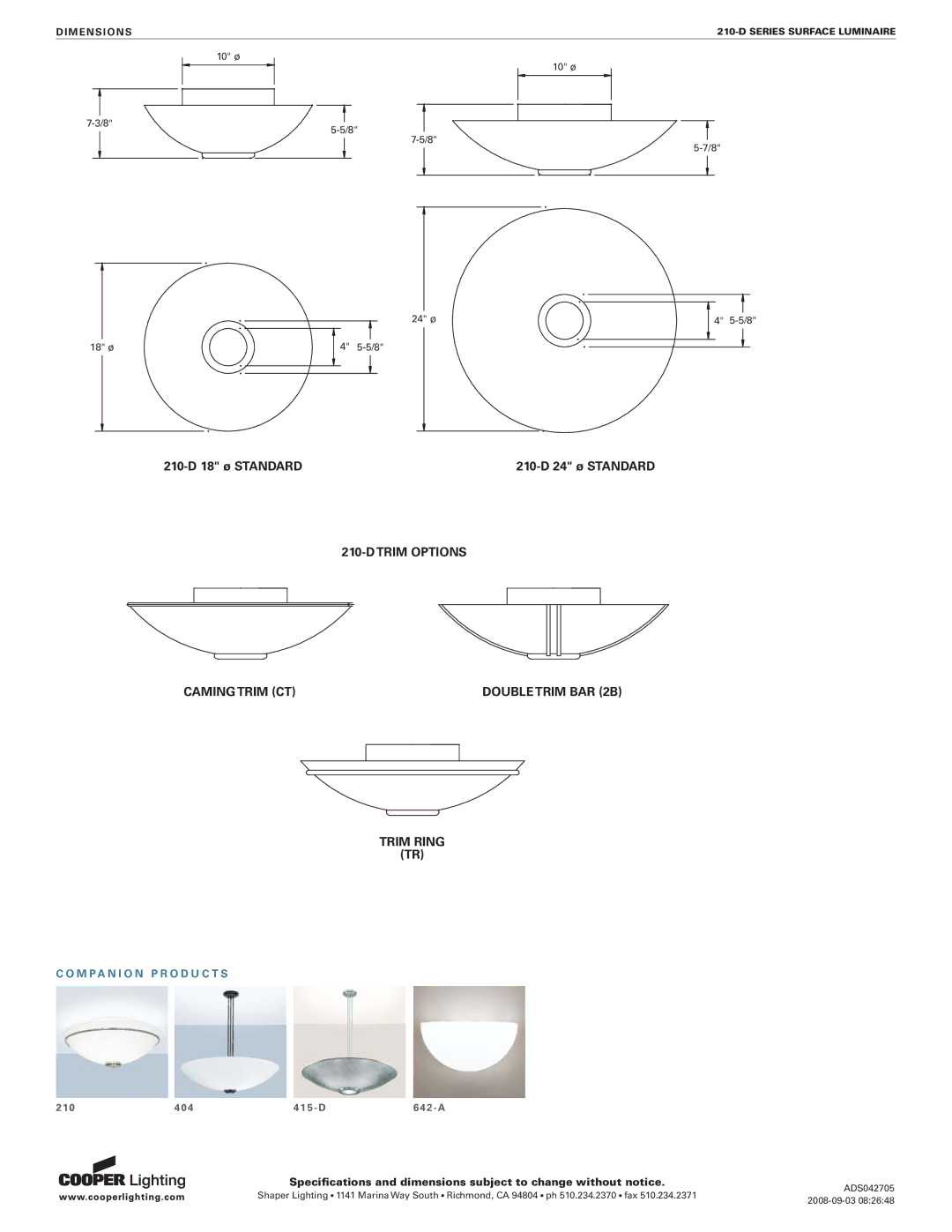

Options

Hand Painted Faux Alabaster Bowl (FB), Hand Painted Faux Linen Bowl (LNB), CamingTrim - At top edge of bowl (CT),Trim Ring (TR), Double BarTrim (2B), CFL Dimming Ballast (26W only)

-Contact the factory for ballast options (DM), Remote Emergency Ballast - Supplied by others (REM). Damp location (DL): All Painted Finishes, Lacquered Satin Nickel (SNL) and Lacquered Satin Chrome (SCL) only. MRI Applications (INC only)

-Contact Factory. Energy Star Rating - consult factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

210-D SERIES

S u r f a c e L u m i n a i r e L u m i n o u s B o w l

SUSTAINABLE

DESIGN

ORDERING INFORMATION

Sample Number: 210-D-18-CFL/3/13-PARH/1/50-277V-PCP

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Series	Size	Lamp
210-D=Bowl	18"	CFL/3/13 1
Surface	24"	CFL/3/26 2
with		INC/3/40	1
Downlight
		INC/3/60 2

Notes:

1Available in 18".

2Available in 24".

3Available with CFL only.

4Not available in 26W.

5Consult the factory for available options.

6Supplied by others.

7Interior applications only.

Downlight Lamp

CFL/1/13

PARH/1/50

Voltage

120V

277V 3

347V 3

Finish

Standard

MW=Matte White

Premium

CC=Custom Color

OBRS =Oxidized Brass

PB =Polished Brass

PC=Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered

Satin Aluminum

NA =Natural Aluminum

SB=Satin Brass

SC=Satin Chrome

SCP=Satin Copper

SN =Satin Nickel

SCL=Lacquered Satin Chrome

SNL =Lacquered Satin Nickel

Options

2B=Double Bar Trim

TR =Trim Ring

CT =Caming Trim

DL=Damp Location 7

DM=CFL Dimming

Ballast 4, 5

REM =Remote

Emergency

Battery 6

FB=Hand Painted

Faux Alabaster

Bowl

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

QUICK SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
