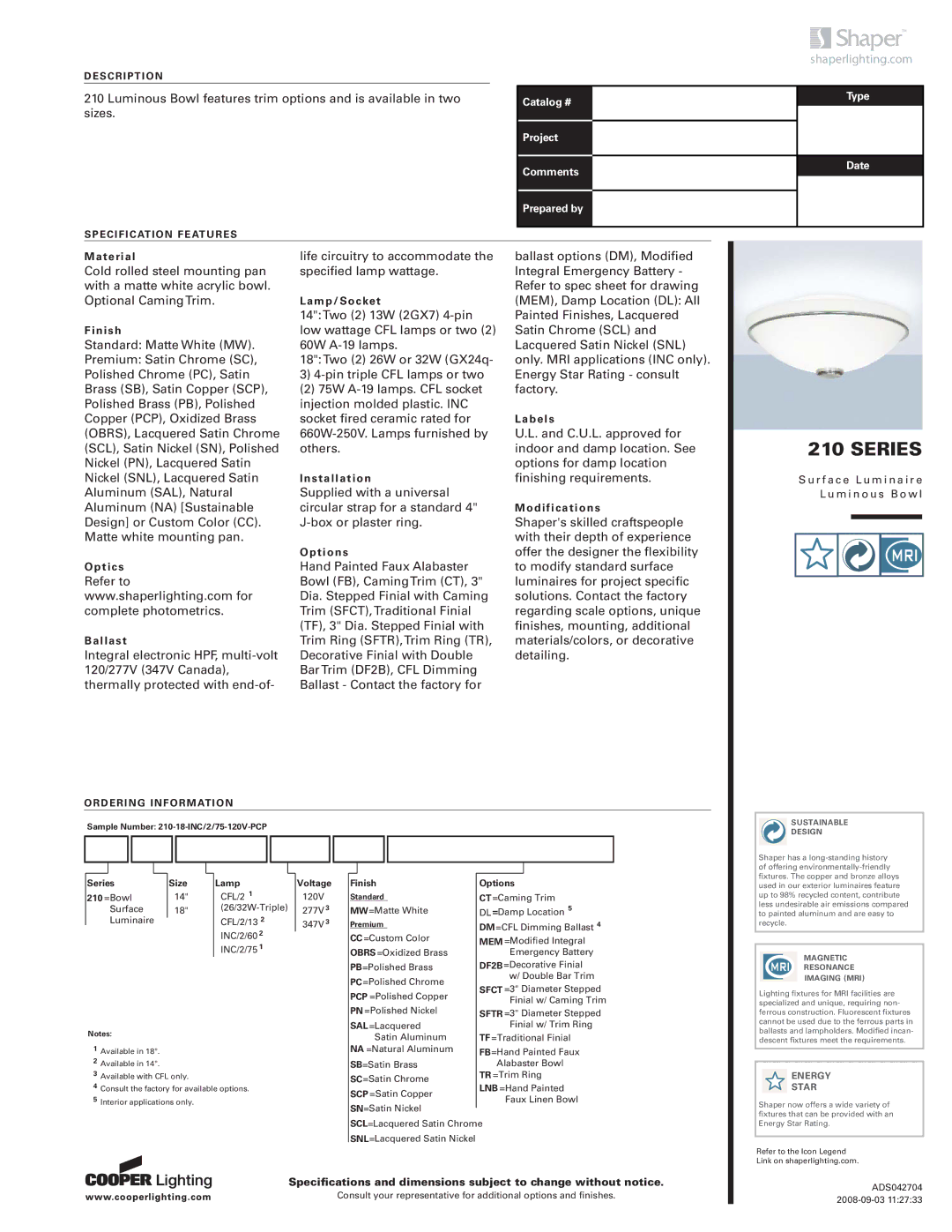

DESCRIPTION

210 Luminous Bowl features trim options and is available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Cold rolled steel mounting pan with a matte white acrylic bowl. Optional CamingTrim.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Satin Copper (SCP), Polished Brass (PB), Polished Copper (PCP), Oxidized Brass (OBRS), Lacquered Satin Chrome (SCL), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Nickel (SNL), Lacquered Satin Aluminum (SAL), Natural Aluminum (NA) [Sustainable Design] or Custom Color (CC). Matte white mounting pan.

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-

life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

14":Two (2) 13W (2GX7) 4-pin low wattage CFL lamps or two (2) 60W A-19 lamps.

18":Two (2) 26W or 32W (GX24q-

3)4-pin triple CFL lamps or two

(2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Bowl (FB), CamingTrim (CT), 3" Dia. Stepped Finial with Caming Trim (SFCT),Traditional Finial (TF), 3" Dia. Stepped Finial with Trim Ring (SFTR),Trim Ring (TR), Decorative Finial with Double BarTrim (DF2B), CFL Dimming Ballast - Contact the factory for

ballast options (DM), Modified Integral Emergency Battery - Refer to spec sheet for drawing (MEM), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) only. MRI applications (INC only). Energy Star Rating - consult factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

210 SERIES

S u r f a c e L u m i n a i r e L u m i n o u s B o w l

ORDERING INFORMATION

Sample Number: 210-18-INC/2/75-120V-PCP

SUSTAINABLE DESIGN































































Series

Size



Lamp



Voltage



210 =Bowl

14"



CFL/2 1



120V





Surface

18"



(26/32W-Triple)



277V 3





Luminaire









CFL/2/13 2



347V 3





























INC/2/60 2

























INC/2/75 1





Notes:

1Available in 18".

2Available in 14".

3Available with CFL only.

4Consult the factory for available options.

5Interior applications only.































Finish

Options



Standard



CT=Caming Trim



MW=Matte White

DL =Damp Location 5



Premium



DM=CFL Dimming Ballast 4



CC=Custom Color



MEM =Modified Integral



OBRS=Oxidized Brass

Emergency Battery



PB=Polished Brass

DF2B=Decorative Finial



PC=Polished Chrome

w/ Double Bar Trim



SFCT =3" Diameter Stepped



PCP =Polished Copper



Finial w/ Caming Trim



PN =Polished Nickel



SFTR =3" Diameter Stepped



SAL=Lacquered

Finial w/ Trim Ring





Satin Aluminum

TF=Traditional Finial



NA =Natural Aluminum

FB=Hand Painted Faux



SB=Satin Brass

Alabaster Bowl



SC=Satin Chrome

TR =Trim Ring



LNB =Hand Painted



SCP =Satin Copper



Faux Linen Bowl



SN=Satin Nickel









SCL=Lacquered Satin Chrome



SNL=Lacquered Satin Nickel





Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042704 2008-09-03 11:27:33
