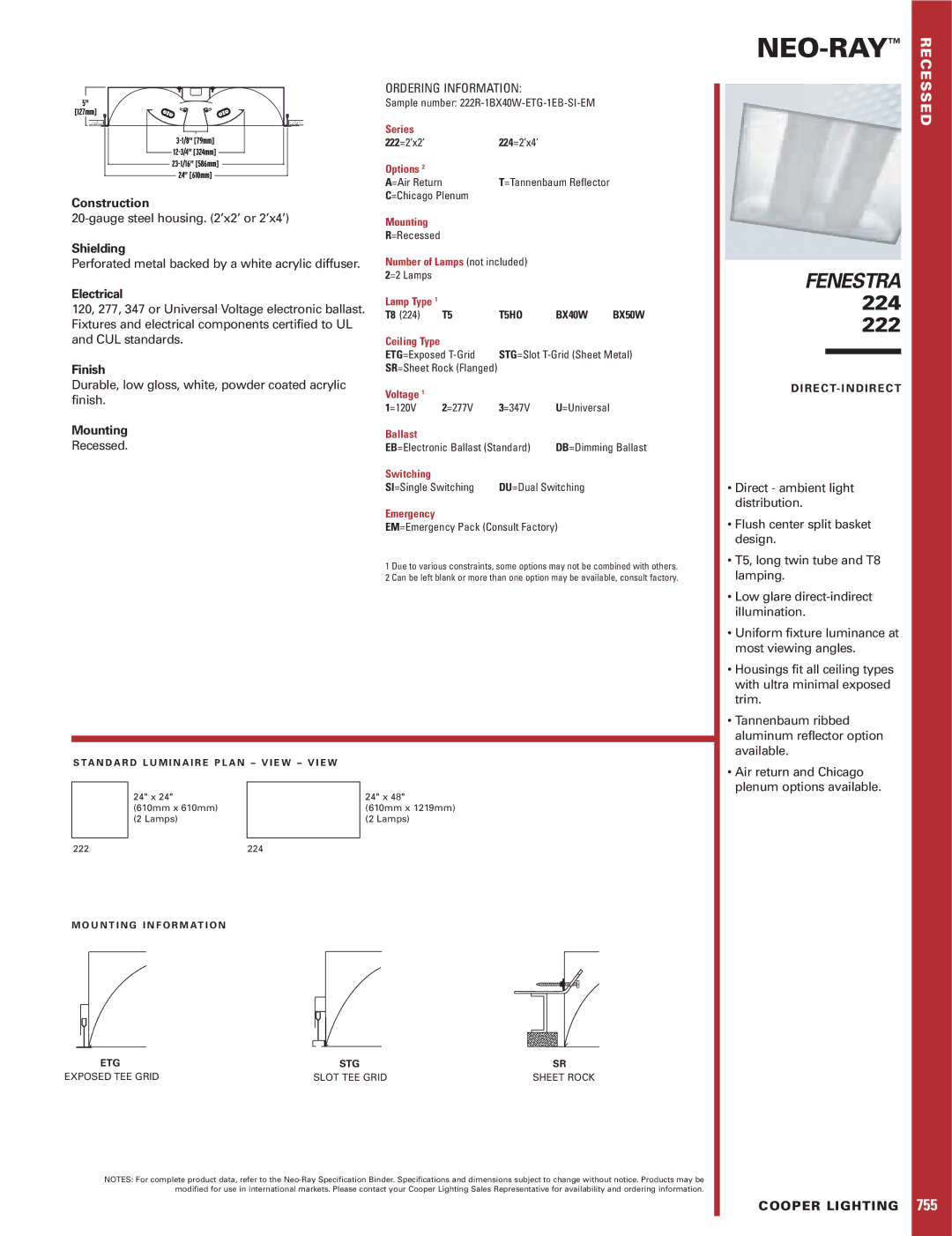

Cooper Lighting 222 specifications Neo-Ray, Fenestra 224

5"

[127mm]

3-1/8" [79mm]

12-3/4" [324mm]

23-1/16" [586mm]

24" [610mm]

Construction

20-gauge steel housing. (2’x2’ or 2’x4’)

Shielding

Perforated metal backed by a white acrylic diffuser.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

ORDERING INFORMATION:

Sample number: 222R-1BX40W-ETG-1EB-SI-EM

Series

222=2’x2’224=2’x4’

Options 2

A=Air ReturnT=Tannenbaum Reflector C=Chicago Plenum

Mounting

R=Recessed

Number of Lamps (not included) 2=2 Lamps

Lamp Type 1
T8 (224)	T5	T5HO	BX40W	BX50W

Ceiling Type

ETG=Exposed T-Grid STG=Slot T-Grid (Sheet Metal) SR=Sheet Rock (Flanged)

Voltage 1
1=120V	2=277V	3=347V	U=Universal
Ballast
EB=Electronic Ballast (Standard)			DB=Dimming Ballast
Switching
SI=Single Switching		DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

NEO-RAY™ RECESSED

FENESTRA 224 222

D I R E C T- I N D I R E C T

• Direct - ambient light

distribution.

• Flush center split basket

design.

• T5, long twin tube and T8

lamping.

• Low glare direct-indirect

illumination.

• Uniform fixture luminance at

most viewing angles.

• Housings fit all ceiling types

with ultra minimal exposed

trim.

• Tannenbaum ribbed

aluminum reflector option

available.

S T A N D A R D L U M I N A I R E P L A N – V I E W – V I E W

	24" x 24"		24" x 48"
	(610mm x 610mm)		(610mm x 1219mm)
	(2 Lamps)		(2 Lamps)
222		224

M O U N T I N G I N F O R M AT I O N

ETG	STG	SR
EXPOSED TEE GRID	SLOT TEE GRID	SHEET ROCK

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

• Air return and Chicago

plenum options available.

COOPER LIGHTING 755
